Before Servicing The Console - Segway Personal Transporter i2 Parts Replacement Manual

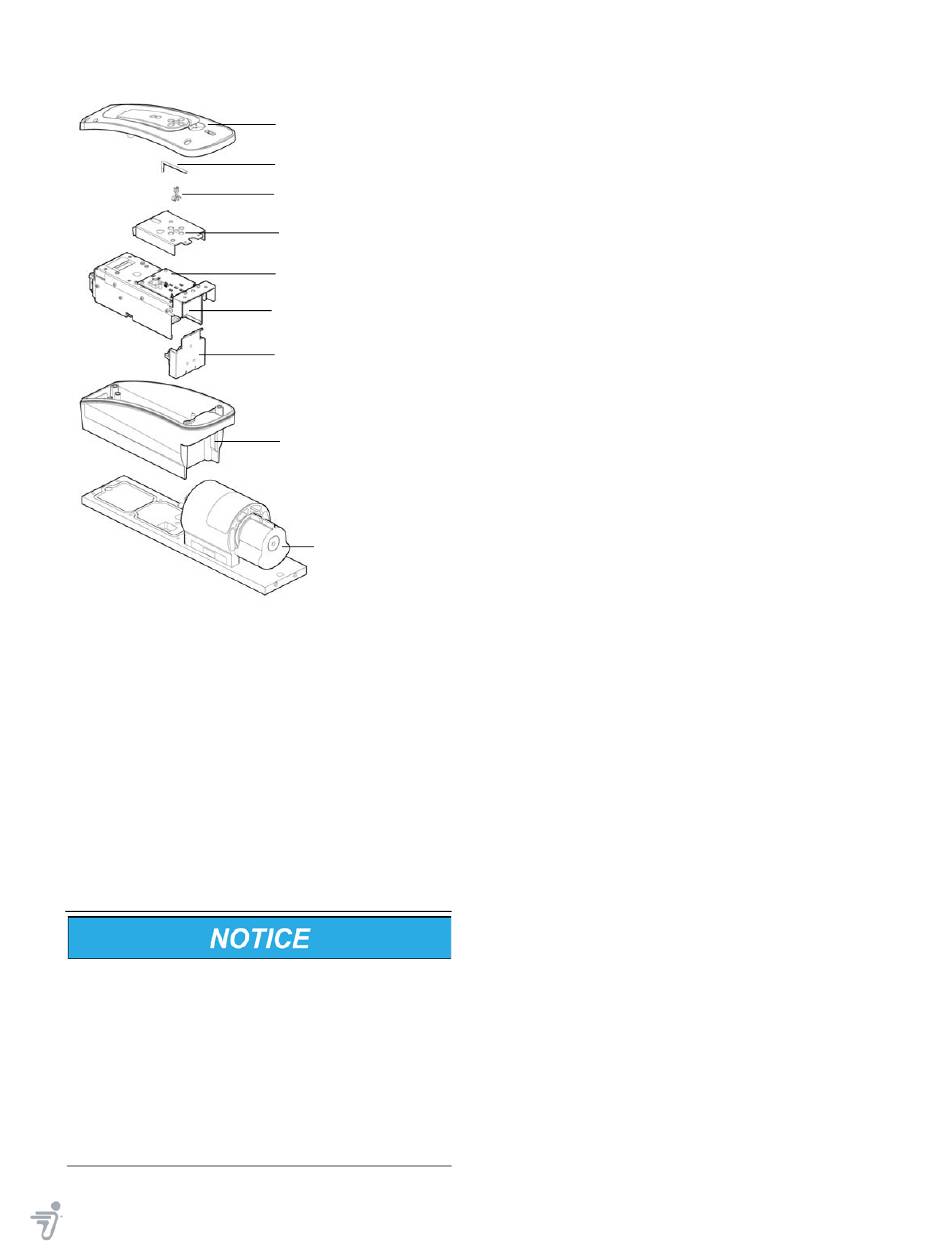

Console components are shown in Figure 9‐1.
Figure 9‐1: Console Components

Before Servicing the Console

All PT models have been manufactured with
one of two revisions of the console housing and
cover. The revision is determined by the part
number of the housing, which is located on the
forward part of the housing and is visible after
the cover is removed. The console housing part
numbers for each revision are as follows:
First Revision: 20055‐00002
•
Second Revision: 20925‐00002
•
First-revision console housing cover parts are no
longer manufactured or supported. First-revision
components are not compatible with second-
revision components; similarly, second-revision
components are not backward compatible with
first-revision components. AS A RESULT, IF ANY
FIRST-REVISION CONSOLE HOUSING, GASKET,
OR COVER IS DAMAGED, THE COVER, GASKET,
HOUSING, AND TRIM MUST ALL BE REPLACED
USING THE CURRENT (SECOND) REVISION.
Segway® Personal Transporter i2, x2, x2 Turf Parts Replacement Guide
console cover
(20929-00001)
antenna
(20169-00001)
antenna clip
(20550-00001)
EMI shield
(20110-00001)
radio board
(19455-00002)
user interface console (UIC)
(20130-00001)
EMI filter
(20375-00002(
console housing
(20055-00002, v1)
(20925-00002, v2)
pivot base assembly
(21249-00001)
9‐3
