Tire/Wheel Assembly Removal and Installation, x2 Turf only

To remove tire/wheel assembly:
1. Make sure Segway PT is powered off and
unplugged.
2. Support unit or turn unit on its side.
3. If removing tire/wheel assembly and hub
adapter, proceed to page 4‐6.
4. Use 8mm hex wrench to remove (4) 8mm
fasteners. See Figure 4‐3.
Tire and Wheel
20816‐00001
20991‐00002
Wheel Trim
20965‐00001

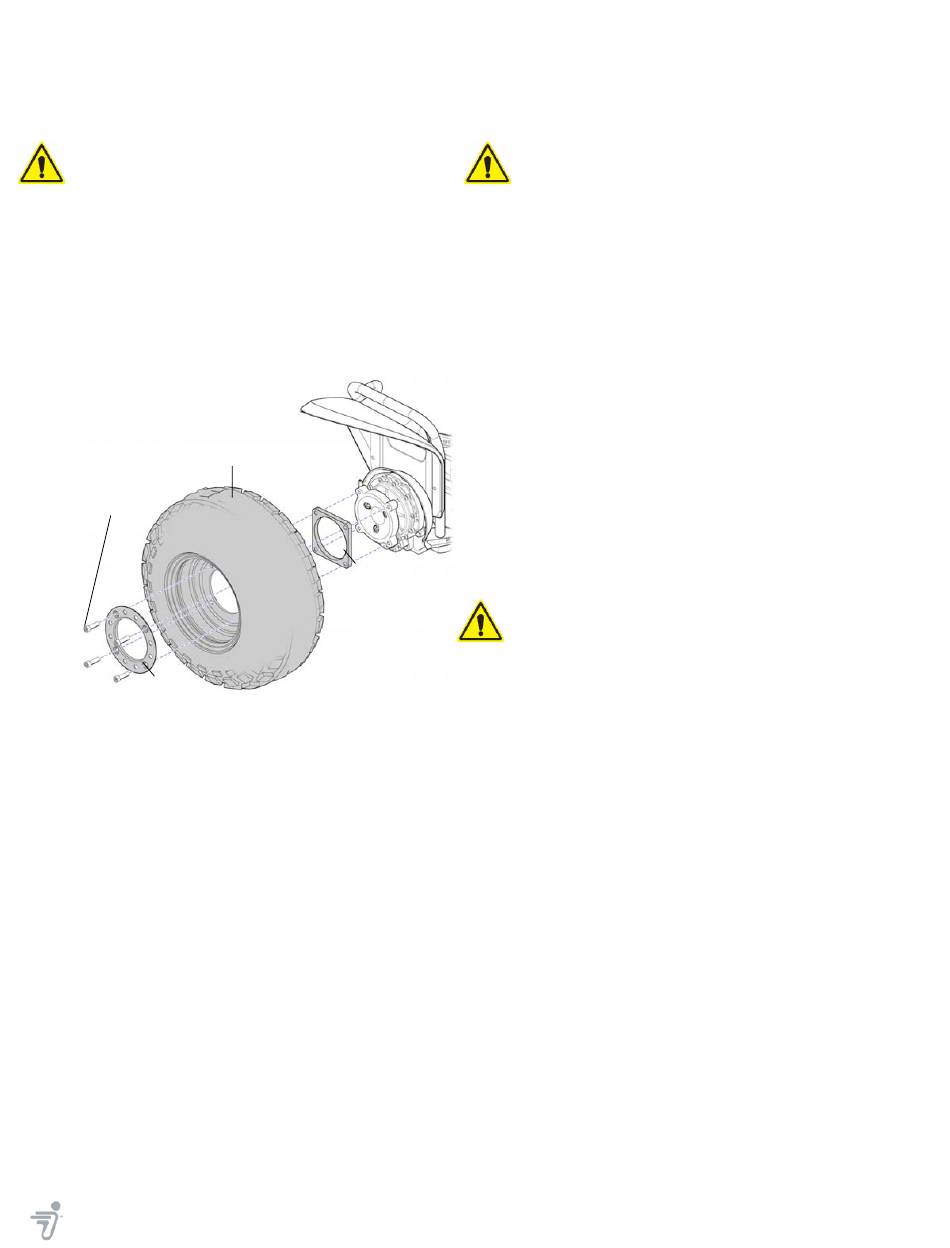

Figure 4‐3: Remove or Install Tire/Wheel Assembly, x2 Turf
5. Lift off wheel trim.
6. Loosen tire/wheel assembly by tapping side
of wheel with plastic or rubber mallet.
7. Lift off tire/wheel assembly, including
spacer. See Figure 4‐3.
Segway® Personal Transporter i2, x2, x2 Turf Parts Replacement Guide
To install tire/wheel assembly:
1. Make sure Segway PT is powered off and
2. Inspect wheel mounting surfaces; use
3. Place spacer over hub adapter; align
4. Place wheel over hub adapter with valve
5. Place wheel trim on wheel; align mounting
6. Thread (4) 8mm fasteners (included with
7. While holding tire to keep from rotating, use
Spacer
21370‐00001
8. Perform post‐service tests (page A‐1).
unplugged.
alcohol wipes to clean off all debris.
mounting holes. See Figure 4‐3.
stem facing outward; align mounting holes.
holes.
kit) through trim and wheel and into hub
adapter.
8mm torque wrench to tighten to 30 N‐m.
Tighten only to the prescribed torque.
4‐5
