EMI Filter Removal and Installation

When to Replace

Replace the electromagnetic interference (EMI)
filter when directed to do so by the Segway PT i2,
x2 Diagnostics Guide, or as advised by a Segway
Service Representative.
To remove EMI filter:
1. Make sure Segway PT is powered off and
unplugged.
2. Remove console cover and set aside
(page 9‐4).
3. Lift off UIC and place in ESD bag or on clean
ESD work surface (page 9‐9).
4. Disconnect (2) steering sensor harness
connectors at top of EMI filter. Keep
retention putty for reuse during installation.
While pressing connector locking tabs,
gently remove connectors to disconnect. Do
not strain harnesses. See Figure 9‐13.
bosses
B

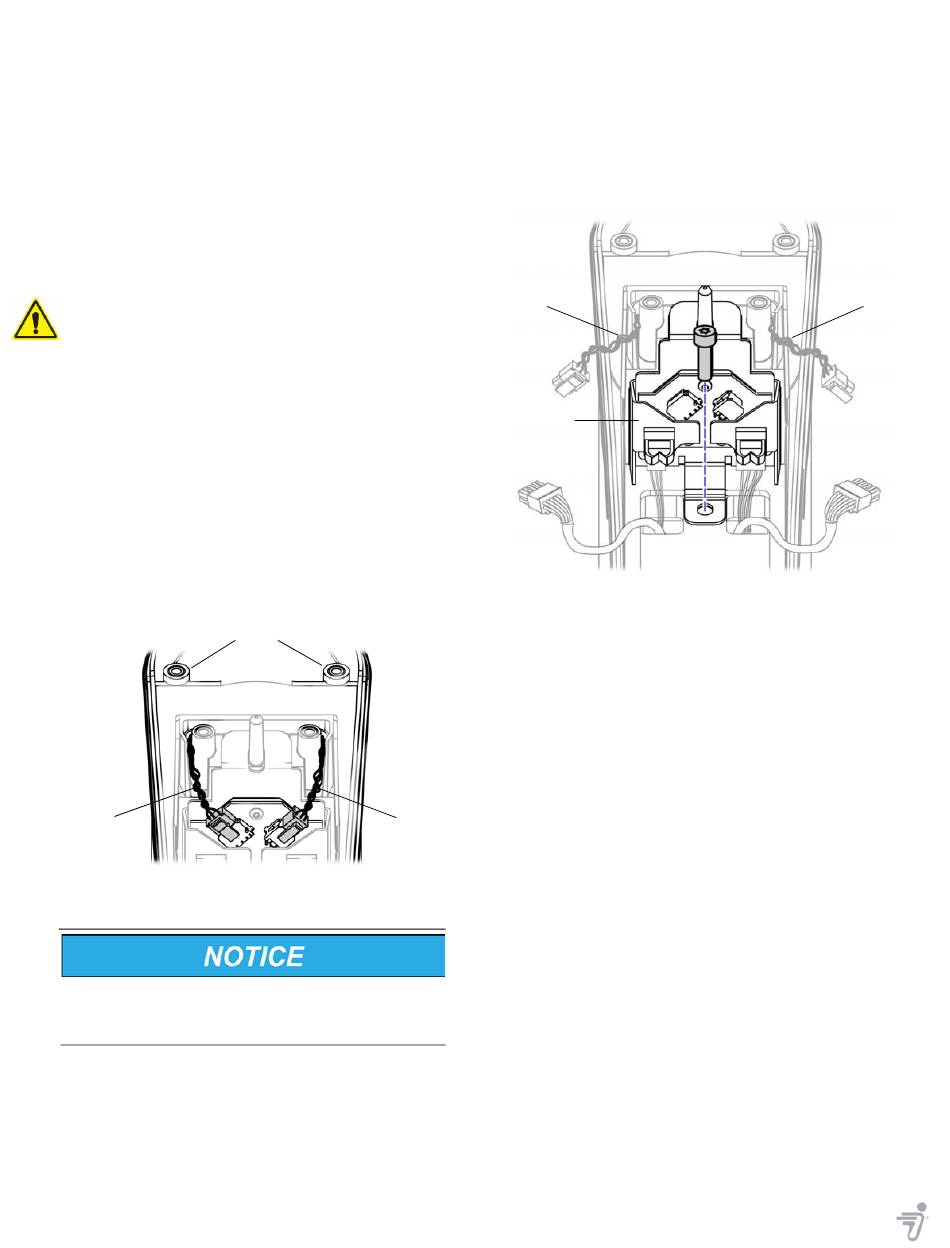

Figure 9‐13: Disconnect or Connect Steering Sensor
Harnesses
If connector locking tab breaks off or if insulation
is damaged or pinched, replacement of the
steering sensor is required.
5. Use T‐30 6‐lobe wrench to remove (1) center
screw that anchors pivot base assembly to
9‐12
chassis and secures EMI filter to bottom of
console housing. See Figure 9‐14.
B
EMI Filter
20375-00001
Figure 9‐14: Remove or Install EMI Filter Screw
A
