Elastomer Bushing Inspection, Removal, and Installation

To inspect elastomer bushing:
Check to see if elastomer bushing is worn or
damaged. Presence of excessive particles of
elastomer material indicates replacement is
necessary. See Figure 13‐6.

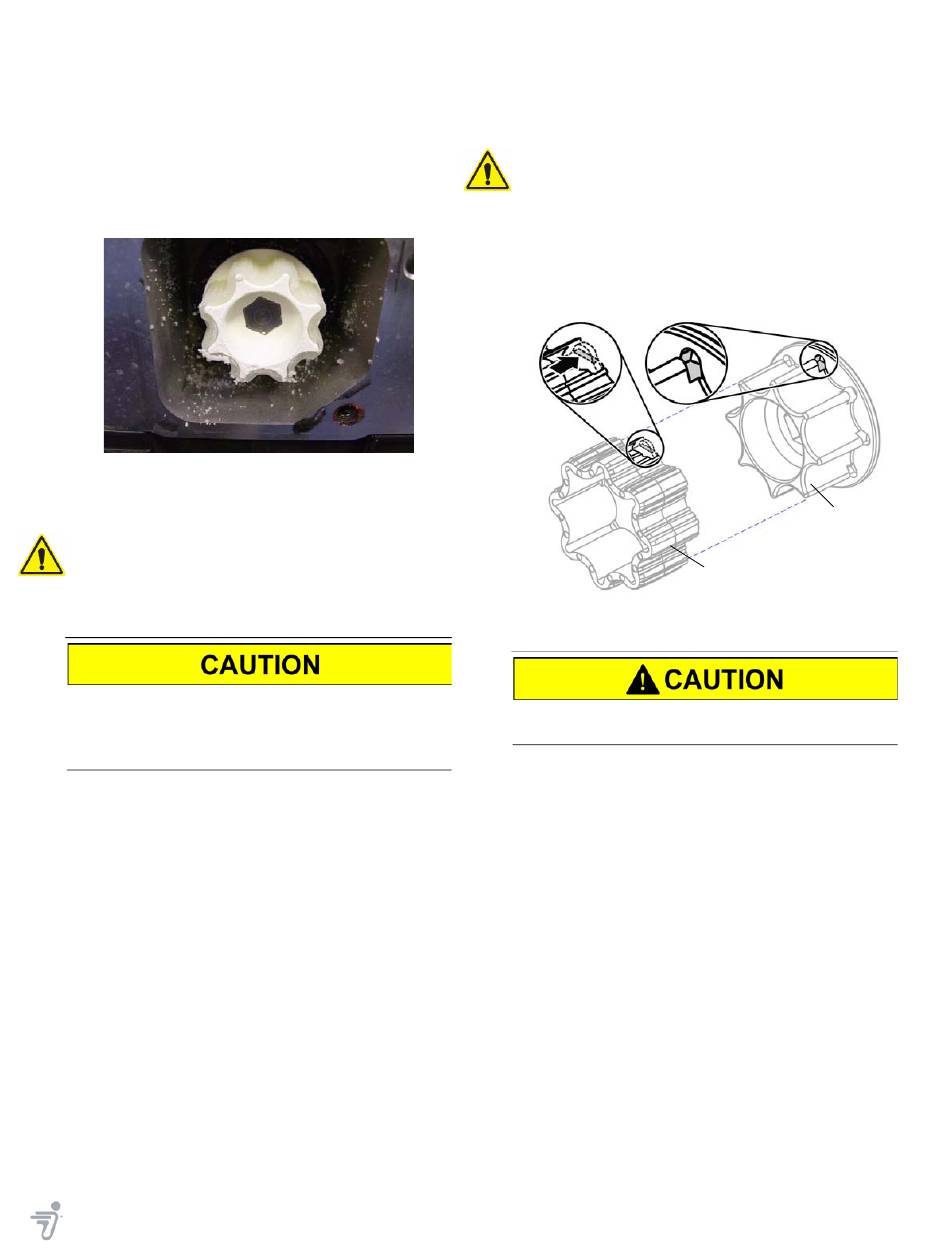

Figure 13‐6: Inspect Elastomer Bushing
To remove elastomer bushing:
1. Make sure Segway PT is powered off and
unplugged.
2. Pull elastomer bushing off motor coupling.
Completely clean residue from drive coupling and
cavity using cotton swabs and household window
cleaner. Repeat process with isopropyl alcohol
until fully clean.
Segway® Personal Transporter i2, x2, x2 Turf Parts Replacement Guide
To install elastomer bushing:
1. Make sure Segway PT is powered off and
unplugged.
2. Making sure tabs on elastomer bushing go
on first, align new elastomer bushing with
coupling, and slide on until seated. See
Figure 13‐7.
Figure 13‐7: Install Elastomer Bushing
Do not remove coupling from motor. If damaged,
replace entire motor assembly.
3. Perform post‐service tests (page A‐1).
coupling
Elastomer Bushing
21091-00001
13‐5
