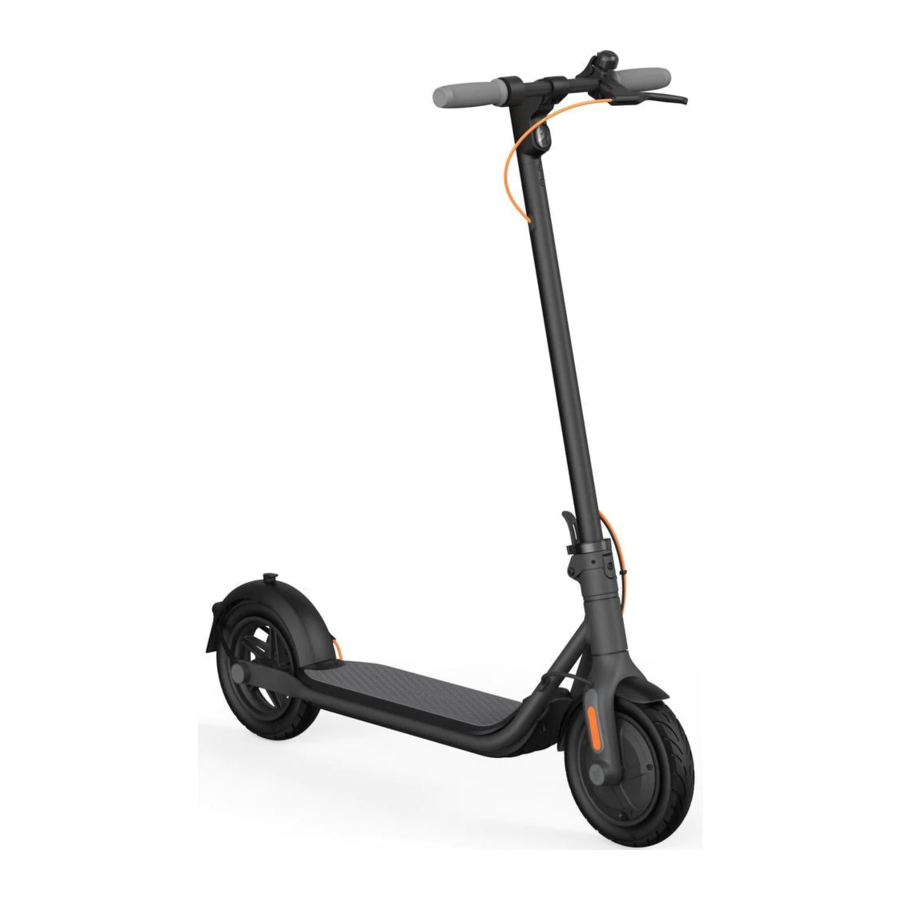

Segway Ninebot F25, F40 - Ninebot Kick Scooter Manual

Diagram

Diagram

Dashboard & Power Button

Dashboard & Power Button
Power Button: Press the button to turn on; press and hold the button for 3 seconds to turn off. When the KickScooter is on, press the button to turn on/off the headlight and the rear light, and press twice to switch between the speed modes.
Speedometer: It displays the current speed of the scooter, as well as error codes.
Walk Mode: Max. speed is 5 km/h (3.1 mph).
F25I / F40I: The headlight and rear light keep flashing and can't be turned off.
* How to enable in the Segway-Ninebot app: Tap the sidebar menu > Settings > Walk Mode.
Speed Mode: There are three modes available. The top speed is as follows:

Mode/Model F25I F40I
ECO (Energy-saving mode) 15 km/h 15 km/h
D (Standard mode) 20 km/h 20 km/h
S (Sport mode) 25 km/h 25 km/h

Error Notification: It indicates that the scooter has detected an error.
Temperature Warning: It indicates that the battery temperature has reached 55°C (131°F) or is below 0°C (32°F).
* At this point, the vehicle cannot accelerate normally and may not be charged. Do not use until the temperature has reverted to the normal range.
Bluetooth: It indicates that the scooter has been successfully connected to the mobile device.
Battery Level: The total battery level equals 5 bars.
* The battery power is very low when the first battery bar is red. Please charge your KickScooter immediately.

Specifications

Item Parameter
Product Name Ninebot KickScooter
Model F25I
Length × Width × Height Approx. 1143 × 480 × 1160 mm (45 × 18.9 × 45.7 in)
Folded: Length × Width × Height Approx. 1143 × 480 × 495 mm (45 × 18.9 × 19.5 in)
Net Weight Approx. 15.3 kg (33.7 lbs)
Rider Payload 40–100 kg (88–220 lbs)
Recommended Age 14–60 years
Required Height 120–200 cm (3'11"–6'6")
Machine Max. Speed Approx. 25 km/h (15.5 mph)
Typical Range[1] Approx. 25 km (15.5 miles)
Max. Slope Approx. 10%
Traversable Terrain Bicycle lanes, parks, campuses and most of the flat road conditions and typical Belgian roads
Operating Temperature -10–40°C (14–104°F)
Storage Temperature -10–50°C (14–122°F)
IP Rating IPX5
Duration of Charging Approx. 5 h
Battery Nominal Voltage 36 V
Max. Charging Voltage 42 V
Charging Temperature 0–40°C (32–104°F)
Nominal Capacity 7650 mAh
Nominal Energy 275 Wh
Battery Management System Over-heating, short circuit, over-current, over-discharge and over-charge protection
Motor Nominal Power 0.3 kW, 300 W
Charger Output Power 0.07 kW, 70 W
Input Voltage 100–240 V~
Max. Output Voltage 42 V
Rated Output 41 V , 1.7 A
Features Brake Light LED Rear Light
Speed Modes Energy-saving mode, Standard mode and Sport mode
Tire Tire Pressure 40–45 psi
Tires 10-inch pneumatic tire
Product Name Ninebot KickScooter
Model F40I
Length × Width × Height Approx. 1143 × 480 × 1160 mm (45 × 18.9 × 45.7 in)
Folded: Length × Width × Height Approx. 1143 × 480 × 495 mm (45 × 18.9 × 19.5 in)
Net Weight Approx. 17.1 kg (37.7 lbs)
Rider Payload 40–120 kg (88–265 lbs)
Recommended Age 14–60 years
Required Height 120–200 cm (3'11"–6'6")
Machine Max. Speed Approx. 25 km/h (15.5 mph)
Typical Range[1] Approx. 40 km (24.9 miles)
Max. Slope Approx. 20%
Traversable Terrain Bicycle lanes, parks, campuses and most of the flat road conditions and typical Belgian roads
Operating Temperature -10–40°C (14–104°F)
Storage Temperature -10–50°C (14–122°F)
IP Rating IPX5
Duration of Charging Approx. 6.5 h
Battery Nominal Voltage 36 V
Max. Charging Voltage 42 V
Charging Temperature 0–40°C (32–104°F)
Nominal Capacity 10.2 Ah
Nominal Energy 367 Wh
Battery Management System Over-heating, short circuit, over-current, over-discharge and over-charge protection
Motor Nominal Power 0.35 kW, 350 W
Charger Output Power 0.07 kW, 70 W
Input Voltage 100–240 V~
Max. Output Voltage 42 V
Rated Output 41 V , 1.7 A
Features Brake Light LED Rear Light
Speed Modes Energy-saving mode, Standard mode and Sport mode
Tire Tire Pressure 50–55 psi
Tires 10-inch tubeless tire

[1] Typical Range: tested while riding with a full battery, 75 kg (165 lbs) load, 25°C (77°F), at the speed of 16 km/h (9.9 mph) on average on pavement.
* Some of the factors that affect range include speed, number of starts and stops, ambient temperature, etc.

To ensure safe riding, day to day care and regular maintenance are essential. You, the owner, have control and knowledge of how often you use your scooter, how hard you use it and where you use it. It is the owner's responsibility to perform regular checks and bring your scooter to authorized service center for inspection and service. Please refer to the maintenance schedule below.
Note: This maintenance schedule charges a service fee.

Item Component Maintenance method Every 3 months Every 6 months or every 310 miles (500 km) After 2 years or the total mileage > 3107 miles (5000 km)
Mainframe maintenance Mainframe parts Use a soft, wet cloth to wipe the mainframe clean.
Tire pressure F25I: Inflate tires to 40–45 psi.
F40I: Inflate tires to 50–55 psi.
Note: Remember to screw the valve cap after inflating!
Tire wear Check if the tires are cracked, deformed, or significantly worn.
Screws on the stem top Tighten the six screws fixed with the handlebar and the stem. The suggested torque is 5.5±0.5 N·m.
Tighten the screw on the throttle. The suggested torque is 3.5±0.1 N·m.
Tighten the screws on the brake lever. The suggested torque is 5.5±0.1 N·m.
Tighten the screws on the stem top. The suggested torque is 10±0.5 N·m.
Screws on the folding mechanism Tighten the two screws fixed with the front fork and the folding mechanism. The suggested torque is 10±1 N·m. If the stem gets shaky when riding, tighen the screw on the folding mechanism when the scooter is in folded state. The suggested torque is 12.5±1 N·m.
Brake disc assembly Tighten the screws on the brake disc assembly. The suggested torque is 7.7±0.2 N·m.
Function Inspection Hub motor To accelerate and decelerate, check if the hub motor is stalled or has abnormal sounds.
Rear wheel maintenance Check if the rear wheel is stalled or gets shaky, or the axis shaft is unbalanced.
Brake adjustment If the brake is too tight/loose, use the 4 mm Allen key to loosen the screw on the caliper. Then slightly adjust the brake line (decrease/increase the exposed length), and tighten the screw again.
Brake rotor Spin the wheels, the caliper should be aligned with the rotor and they shouldn't rub on the brake pads.
Taillight Squeeze the brake lever, the tail light works normally.
Headlight Check the headlight and see if it lights brightly.
Direction indicators Toggle the direction indicator button to the left/right respectively, check if the direction indicators on the left/right side flash normally.
Dashboard Power on the scooter, the dashboard works properly. Switch between the speed modes, the dashboard will display the corresponding speed mode icon.
Bell Ring the bell, the sound is loud.
Buzzer Power on/off the scooter, the buzzer sound is normal.
Throttle Press and hold the throttle then release it, checking for acceleration and deceleration.
Note: Release it, check if the throttle will back to the position.
Fault detection After connecting with the Segway-Ninebot app:
  1. Update the firmware to the latest version.
  2. Check if the notification of the corresponding error code and possible causes will prompt when the scooter detects an error.
Charging Charge the scooter:
  1. Check if the current battery power displays on the dashboard.
  2. Check the LED indicator on the battery charger.
    Charging: red, Fully charged: green.
Control buttons Press or toggle the button 3 times without failure.
Turning Test with left turns and right turns (the steering angle is 60). No resistance or lag when turning.
Important parts Battery assembly The battery need to be replaced when it is charged and discharged for 500 times or the total mileage is more than 6213 miles (10000 km).
Note: It is recommended to charge once every 60 days for long-term storage.
Controller It is required that original Segway-Ninebot parts shall be used for repairs and replacements.
Hub motor
Functional parts Rear wheel assembly
Throttle & Brake lever
Front fork assembly
Folding mechanism
Brake rotor
Disc brake assembly
Dashboard
