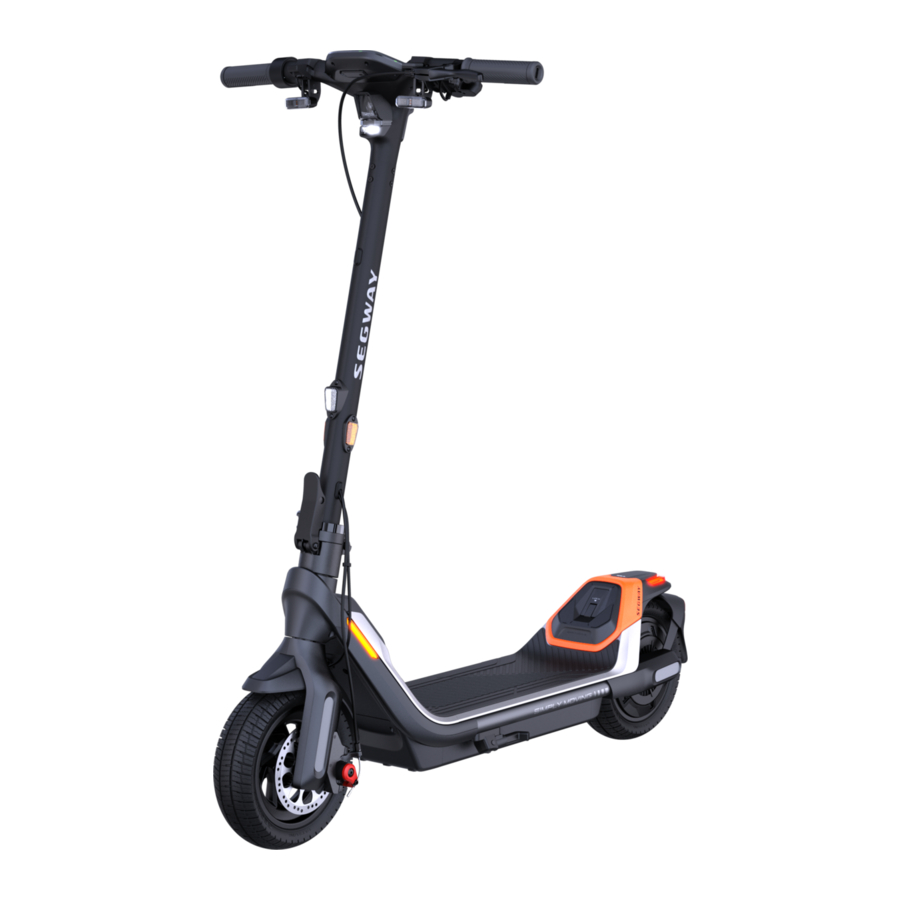

Segway P65 - Kick Scooter Manual
Diagram and Functions
Handlebar Functions
| Name | Function | Operation method |
| Power Button | Power on/off | Press the Power Button to power on the scooter. Press and hold to power it off. * Available only when the scooter is not in Anti-theft mode. |
| Wake up the dashboard | Press the Power Button to wake up the dashboard when the dashboard automatically dims. | |
| Mode Switching Button | Switch between speed modes | Press the Mode Switching Button twice to switch mode. |
| Multi-function Button | Turn on/off ASSIST mode | Enabling ASSIST mode via the Segway-Ninebot app: When the scooter is at a complete stop, press the Multi-function Button to turn on ASSIST mode. Turn off ASSIST mode: Release the throttle and squeeze the brake lever to stop, then press the Multi-function Button again. |
| Turn on/off the headlight | Rotate the Multi-function Button clockwise/counterclockwise to turn off/on the headlight. | |
| Turn on/off the adaptive headlight feature | Rotate the Multi-function Button clockwise/counterclockwise and hold it for 3 seconds to turn off/on the adaptive headlight feature. * When the scooter is activated, this feature is turned on by default. | |
| USB Port | Charging | Connect your device to the USB Port for charging. |
| Throttle | Speed up | Press and hold the throttle to speed up. |
| NFC Area | Interact with the NFC card to power on/off | Tap the NFC card on the NFC Area to power on/off the scooter. |
| Interact with the NFC card to unlock | Tap the NFC card on the NFC Area to unlock the scooter. | |
| Horn Button | Turn on the horn | Press the Horn Button, the scooter will beep. |
| Direction | Turn on the left/right direction indicator (for P65E/P65I only) | Press the left/right side of the Direction Indicator Button, the left/right direction indicator will flash, and automatically turns off after 5 seconds. |
| Indicator Button | Enter the password | Press the left/right side of the Direction Indicator Button (left is minus, right is plus) to enter the password. |
Dashboard
| Symbol | Name | Meaning | Description |
 | POWER Progress Bar | The symbol displays the motor output power of the scooter. | |
 | Speedometer | The symbol displays the current speed of the scooter. | |
 | Lock | When the icon flashes, it means the scooter enters Anti-theft mode. | When powered off after 30 seconds: If the scooter is moved or touched by someone, it will enter to Anti-theft mode. P65E/P65I: The scooter will start beeping and the front and rear direction indicators will flash, and the motor will be locked automatically. P65D: The scooter will start beeping and the motor will be locked automatically. Note: Only available to power on the scooter with NFC card. |
| When the icon lights up, it means the scooter is locked. | When locked via the Segway-Ninebot app or in the unlocking state via password: P65E/P65I: The scooter will keep beeping and the tail light will flash. P65D: The scooter will keep beeping and the tail light will stay on. Unlock the scooter with the following methods:
| ||
 | Temperature Warning | It indicates that the battery temperature has reached 60°C (140°F) or is below 0°C (32°F). | |
 | USB Port Icon | When the USB port icon lights up, it means that the device (not fully charged) is connected to the USB port. | |
 | Bluetooth | It indicates that the scooter is connected to the Segway-Ninebot app. | |
 | Warning | The symbol indicates that the scooter has detected an error. The error code will display on the dashboard. Please contact the after-sales service for repair. | |
 | Remaining battery power | The symbol displays the remaining battery power in battery bar. | |
 | Adaptive Headlight | When the icon flashes, it means the Adaptive headlight feature is turned on. | When this feature is turned on, the headlight will work automatically to adapt to a variety of situations and conditions and help illuminate the way. |
Speed Modes Introduction
| Mode/model | P65E (Speed limit) | P65D (Speed limit) | P65I (Speed limit) | Switching methods |
 (Walk) | 3–5 km/h (1.9–3.7 mph) | 3–5 km/h (1.9–3.7 mph) | 3–5 km/h (1.9–3.7 mph) | Enable/Disable Walk mode via the Segway-Ninebot app. P65E/P65I: The headlight is always on and the tail light will keep flashing in Walk mode. P65D: The headlight and tail light are always on. |
 (ASSIST) | 3–5 km/h (1.9–3.7 mph) | 3–5 km/h (1.9–3.7 mph) | 3–5 km/h (1.9–3.7 mph) | Enabling ASSIST mode via the Segway-Ninebot app: When the scooter is at a complete stop, press the Multi-function Button to turn on ASSIST mode. Note: When turned on, the scooter will beep once and the front and rear direction indicators will flash once. Turn off ASSIST mode: Release the throttle and squeeze the brake lever to stop, then press the Multi-function Button again. |
 | 11.2 mph (18 km/h) | 11.2 mph (18 km/h) | 11.2 mph (18 km/h) | Press the Mode Switching Button twice. |
 | 12.4 mph (20 km/h) | 12.4 mph (20 km/h) | 12.4 mph (20 km/h) | Press the Mode Switching Button twice. |
 | 15.5 mph (25 km/h) | 12.4 mph (20 km/h) | 12.4 mph (20 km/h) | Press the Mode Switching Button twice. |
Specifications
| Item | Parameter | |||
| Product | Name | Segway KickScooter | ||
| Model | P65E | P65I | P65D | |
| Length × Width × Height | Approx. 1190 × 634 × 1214 mm (46.9 × 25 × 47.8 in) | |||
| Folded: Length × Width × Height | Approx. 1190 × 634 × 567 mm (46.9 × 25 × 22.3 in) | |||
| Net Weight | Approx. 28 kg (61.7 lbs) | Approx. 27.5 kg (60.6 lbs) | ||
| Rider | Max. Payload | 120 kg (265 lbs) | ||
| Recommended Age | 18–60 years old | |||
| Required Height | 160–200 cm (5'2''–6'6'') | |||
| Machine | Wheelbase | 903 mm (35.6 in) | ||
| Ground Clearance | 79 mm (3.1 in) | |||
| Max. Speed | Approx. 25 km/h (15.5 mph) | Approx. 20 km/h (12.4 mph) | ||
| Typical Range [1] | Approx. 65 km (40.4 miles) | |||
| Max. Slope | Approx. 22% | |||
| Traversable Terrain | Bicycle lanes, parks, campuses and most of the flat road conditions and typical Belgian roads | |||
| Operating Temperature | -10 to 40°C (14 to 104°F) | |||
| Storage Temperature | -10 to 50°C (14 to 122°F) | |||
| IP Rating | IPX5 | |||
| Duration of Charging (single) | Approx. 4 h | |||
| Battery | Model | NCAF4813A/NCAF4812D | ||
| Nominal Voltage | 46.8 V  | |||
| Max. Charging | 54.6 V | |||
| Voltage Nominal Energy | 561 Wh | |||
| Nominal Capacity | 12 Ah | |||
| Charging Ambient Temperature | 0 to 45°C (32 to 113°F) | |||
| Battery Management System | Over-heating, short circuit, over-current, over-discharge and over-charge protection | |||
| Motor | Motor Type | Brushless DC (BLDC) motor | ||
| Nominal Power | 0.5 kW, 500 W | |||
| Charger | Input Voltage | 100–240 V~, 50–60 Hz, 2.0 A MAX. | ||
| Max. Output Voltage | 54.6 V | |||
| Rated Output | 53.5 V 3A | |||
| Output Power | 0.16 kW, 160 W | |||
| Item | Parameter | |
| Charger | Type | Built-in |
| Model | NBW54D603D0D | |
| Tire | Type | 10.5-inch Self-sealing tubeless tires |
| Tire Pressure | 30–45 psi | |
| Material | Rubber | |
| Others | Speed Modes | Walk mode, ASSIST mode, ECO mode, DRIVE mode and SPORT mode |
| Brake System | Disc brake & Electric brake |
[1]: Typical Range: tested while riding with a full battery, 165 lbs (75 kg) load, 77°F (25°C), at the speed of 9.9 mph (16 km/h) on average on pavement.
* Some of the factors that affect range include speed, number of starts and stops, ambient temperature, etc.
Common Failures
| Error code | Possible causes |
| 10 | BLE Bluetooth communication error |
| 11 | Motor 1A phrase current sampling failure |
| 12 | Motor 1B phrase current sampling failure |
| 13 | Motor 1C phrase current sampling failure |
| 14 | Throttle Hall sensor abnormality |
| 15 | Brake Hall sensor abnormality |
| 18 | Hall sensor abnormality |
| 21 | BMS communication error |
| 22 | BMS password error |
| 23 | BMS default serial number |
| 24 | System voltage detection abnormality |
| 26 | Flash storage error |
| 27 | Control board password error |
| 28 | Motor MOS driver upper bridge short circuit |
| 29 | Motor MOS driver lower bridge error |
| 31 | Program skip error |
| 35 | Vehicle default serial number |
| 39 | Battery temperature sensor error |
| 41 | Direction indicators abnormality |
| 42 | Headlight abnormality |
| 45 | Abnormal bus current op-amp circuit |
