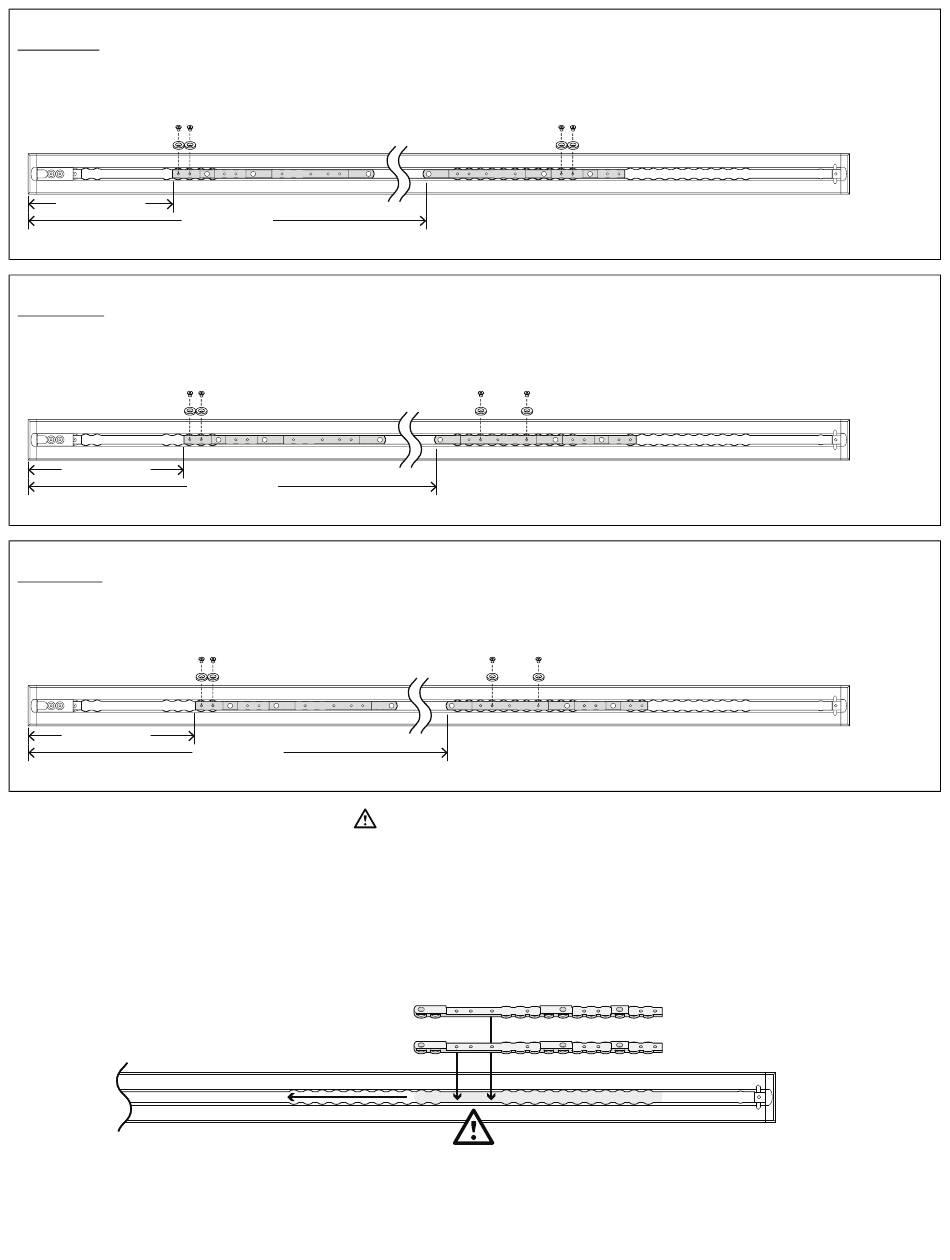

S S e e c c t t i i o o n n L L : : 16 in. (41 cm) sill to cot distance
12.5"(31.8 cm)
58" (147.3 cm)
S S e e c c t t i i o o n n M M : : 17 in. (43 cm) sill to cot distance
13.5"(34.3 cm)
59" (149.9 cm)
S S e e c c t t i i o o n n N N : : 18 in. (46 cm) sill to cot distance
14.5"(36.8 cm)
You can only insert cleats where indicated by
drop in. Both cleats are identical and must be installed flat-side down. Both cleat dimensions are taken from the cap at the
end of the floor plate.
1. Insert your first cleat (A) and slide toward the foot end.
2. Insert your second cleat (B).
Foot
end
3. Determine your cleat (6392-001-400) and cleat locator washer (6392-001-401) locations per your Section below.
EN 18
60" (152.4 cm)
. Use the necked area of the cleats to line up with the floor plate, so they
(B)
(A)
Head
end
