How to Programme

2 How to Programme

2.1 Local Control Panel

2.1.1 How to Operate Graphical LCP (GLCP)

The GLCP is divided into 4 functional groups:
1. Graphical display with status lines.
2. Menu keys and indicator lights (LEDs) - selecting
mode, changing parameters, and switching
between display functions.
3. Navigation keys and indicator lights (LEDs).
4. Operation keys and indicator lights (LEDs).
Graphical display
The LCD display is backlit with a total of 6 alpha-numeric
lines. All data is shown on the LCP, which can show up to
5 operating variables while in status mode.
Display lines:
a. Status line
Status messages showing icons and graphics.
b. Line 1–2
Operator data lines showing data and variables
defined or selected by the user. Press [Status] to
add 1 extra line.
c. Status line
Status messages showing text.
M0010001
Programming Guide
1
2
On
3
Warn.
Alarm
4

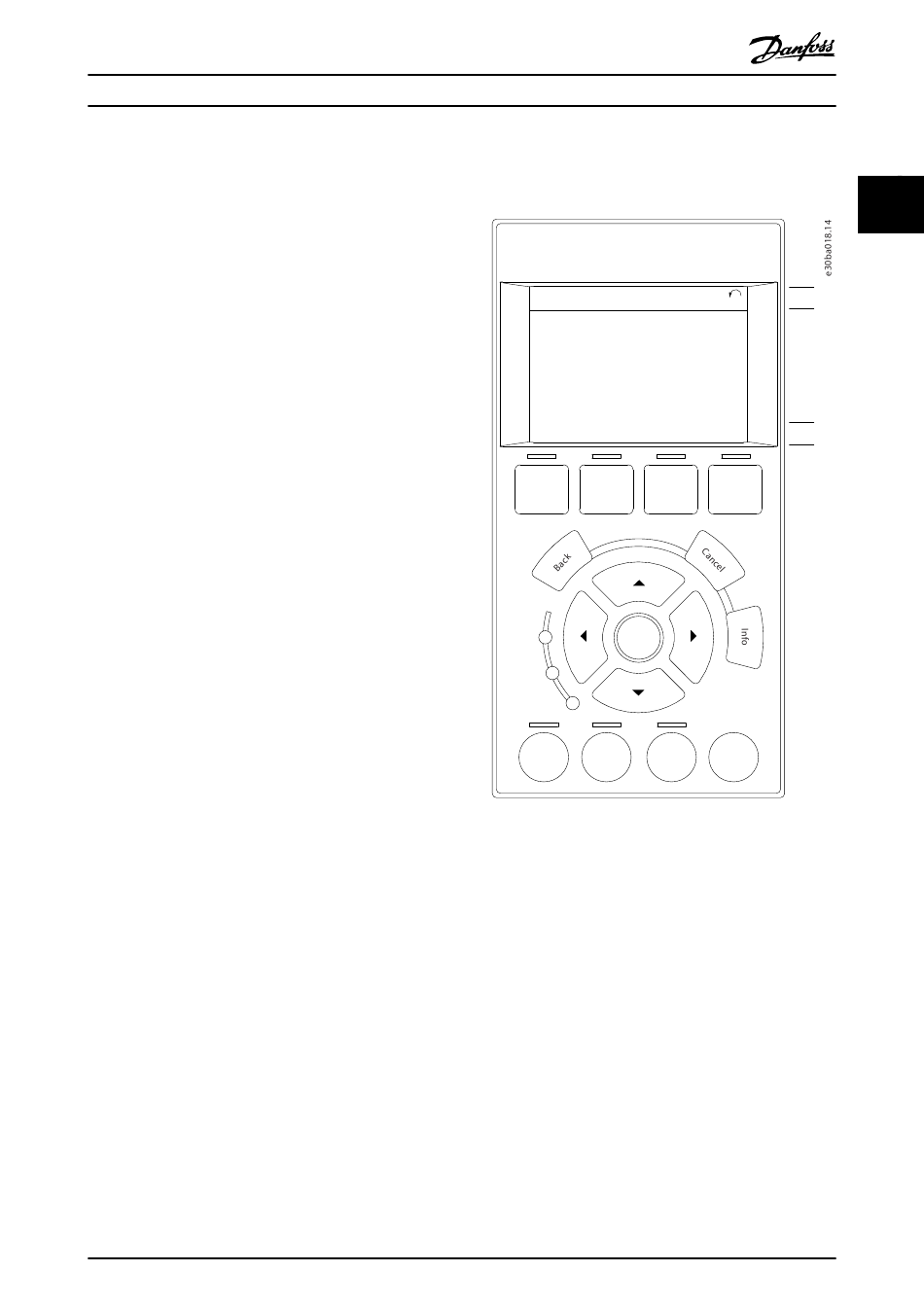

Illustration 2.1 LCP
Danfoss A/S © 10/2019 All rights reserved.
Status
1234rpm 10,4A 43,5Hz
43,5Hz
Run OK
Quick Main
Status
Menu Menu
OK
Hand Auto
Off
On On
2
a
1(0)
b
c
Alarm
Log
Reset
