Danfoss VLT FC 102 Programming Manual page 170

Parameter Descriptions
16-63 Terminal 54 Switch Setting
View the setting of input terminal 54.
Option:
[0] Current
*
[1] Voltage
3 3
16-64 Analog Input 54
Range:
0
*
16-65 Analog Output 42 [mA]
Range:
0
*
16-66 Digital Output [bin]
Range:
0
*
16-67 Pulse Input #29 [Hz]
Range:
0
*
16-68 Pulse Input #33 [Hz]
Range:
0
*
16-69 Pulse Output #27 [Hz]
Range:
0
*
16-70 Pulse Output #29 [Hz]
Range:
0
*
16-71 Relay Output [bin]
Range:
0
*
168
Function:
Function:
[-20 - 20 ] View the actual value at input 54.
Function:
[0 - 30 ] View the actual value at output 42
in mA. The value shown reflects the
selection in parameter 6-50 Terminal
42 Output.
Function:
[0 - 15 ] View the binary value of all digital
outputs.
Function:
[0 - 130000 ] View the actual frequency rate on
terminal 29.
Function:
[0 - 130000 ] View the actual value of the
frequency applied at terminal 33 as
an impulse input.
Function:
[0 - 40000 ] View the actual value of impulses
applied to terminal 27 in digital
output mode.
Function:
[0 - 40000 ] View the actual value of pulses to
terminal 29 in digital output mode.
Function:
[0 - 511 ] View the settings of all relays.
Danfoss A/S © 10/2019 All rights reserved.
®
VLT HVAC Drive FC 102
16-71 Relay Output [bin]
Range:
16-72 Counter A
Range:
0
*
16-73 Counter B
Range:
0
*
16-75 Analog In X30/11
Range:
0
*
16-76 Analog In X30/12
Range:
0
*
Function:

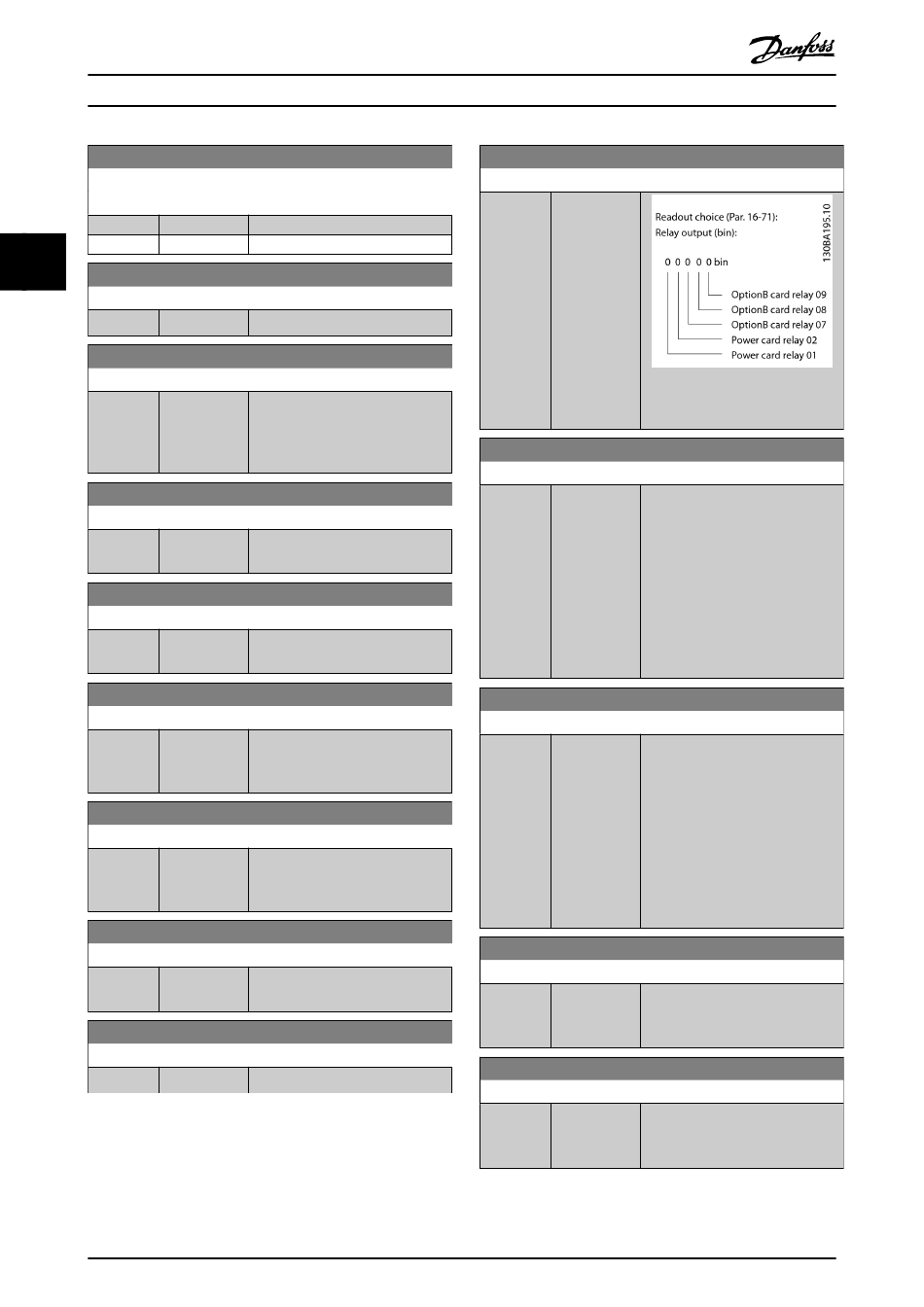

Illustration 3.52 Relay Settings
Function:
[-2147483648 View the present value of counter
- A. Counters are useful as
2147483647 ] comparator operands, see
parameter 13-10 Comparator
Operand.
Reset or change the value either via
digital inputs (parameter group 5-1*
Digital Inputs) or by using an SLC
action (parameter 13-52 SL Controller
Action).
Function:
[-2147483648 View the present value of counter
- B. Counters are useful as
2147483647 ] comparator operands,
parameter 13-10 Comparator
Operand.
Reset or change the value either via
digital inputs (parameter group 5-1*
Digital Inputs) or by using an SLC
action (parameter 13-52 SL Controller
Action).
Function:
[-20 - 20 ] View the actual value at input
®
X30/11 of VLT General Purpose I/O
MCB 101.
Function:
[-20 - 20 ] View the actual value at input
®
X30/12 of VLT General Purpose I/O
MCB 101.
M0010001
