How to Programme
Display contrast adjustment
▲
Press [Status] and [ ] for darker display.
▼
Press [Status] and [ ] for brighter display.
Status
Top section
43 RPM
Middle section
! Pwr.card temp (W29)
Bottom section
Auto Remote Running

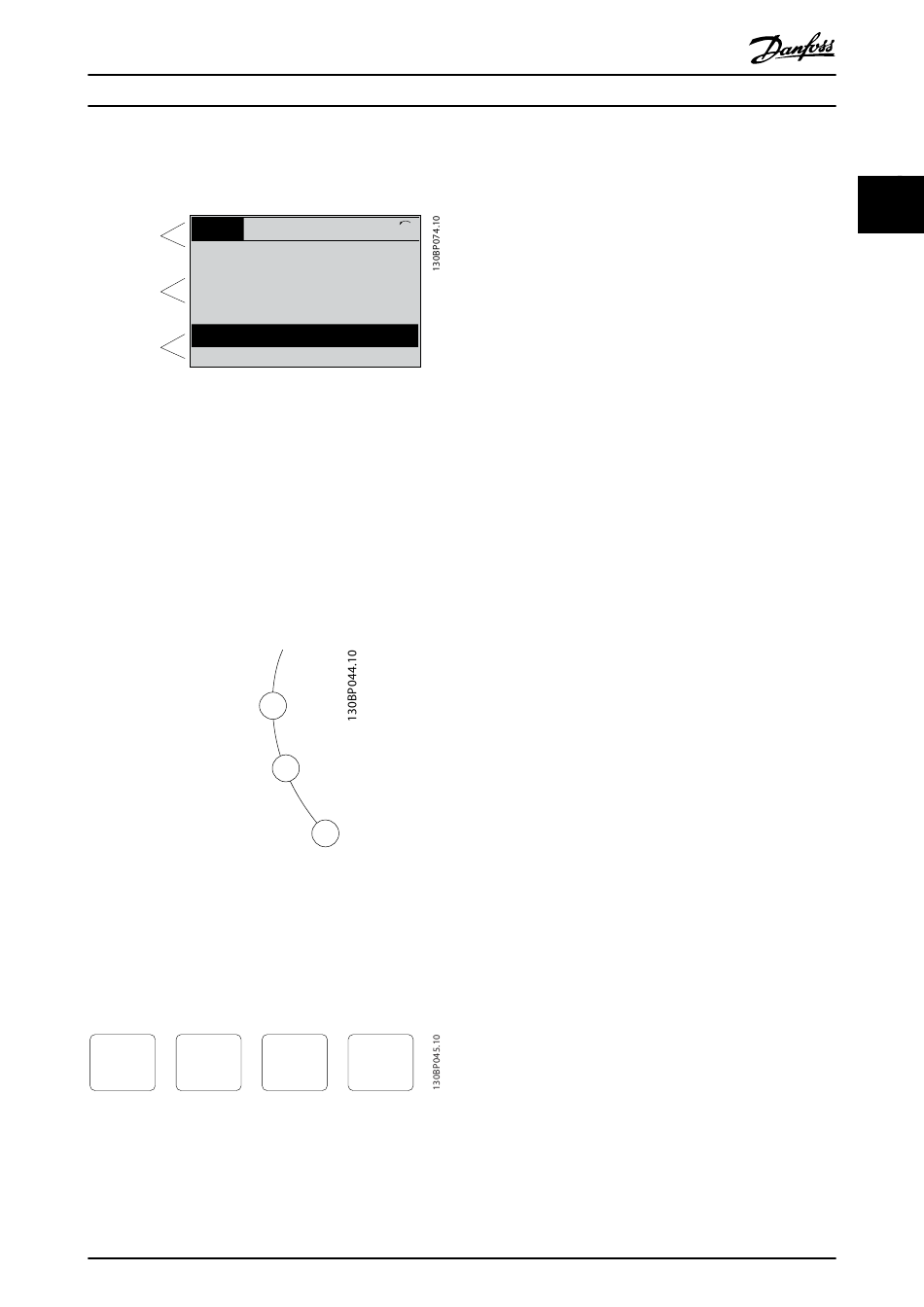

Illustration 2.5 Display Sections
Indicator lights (LEDs)
If certain threshold values are exceeded, the alarm and/or
warning LED lights up. A status and alarm text appear in
the display.
The On LED is activated when the frequency converter
receives power from mains voltage, a DC bus terminal, or a
24 V external supply. At the same time, the backlight is on.
•
Green LED/On: Control section is working.
•
Yellow LED/Warn.: Indicates a warning.
•
Flashing Red LED/Alarm: Indicates an alarm.
On
Warn.
Alarm
Illustration 2.6 Indicator Lights
GLCP keys
Menu keys
The menu keys are divided into functions. The keys below
the display and indicator lights are used for parameter set-
up, including selection of display indication during normal
operation.
Quick
Status
Menu
Illustration 2.7 Menu Keys
[Status]
[Status] indicates the status of the frequency converter
and/or the motor.
M0010001
Programming Guide
1(1)
!
5.44 A 25.3kW
1.4 Hz
2.9%
Main Alarm
Menu Log
Danfoss A/S © 10/2019 All rights reserved.
3 different readouts can be selected by pressing the
[Status] key:
•
5-line readouts.
•
4-line readouts.
•
Smart logic control.
Press [Status] to select the display mode or for changing
back to Display mode from either Quick Menu mode, Main
Menu mode, or Alarm mode. Also press [Status] to toggle
between single or double readout mode.
[Quick Menu]
[Quick Menu] allows quick set-up of the frequency
converter. The most common functions can be
programmed here.
The Quick Menu consists of:
•
My personal menu.
•
Quick set-up.
•
Function set-up.
•
Changes made.
•
Loggings.
The Function Set-up provides quick and easy access to all
parameters required for most applications including:
•
Most VAV and CAV supply and return fans.
•
Cooling tower fans.
•
Primary, secondary, and condenser water pumps.
•
Other pump, fan, and compressor applications.
Among other features, it also includes parameters for
selecting which variables to display in the LCP:
•
Digital preset speeds.
•
Scaling of analog references.
•
Closed-loop single-zone and multi-zone
applications.
•
Specific functions related to fans, pumps, and
compressors.
The Quick Menu parameters can be accessed immediately
unless a password has been created via:
•
Parameter 0-60 Main Menu Password.
•
Parameter 0-61 Access to Main Menu w/o Password.
•
Parameter 0-65 Personal Menu Password.
•
Parameter 0-66 Access to Personal Menu w/o
Password.
It is possible to switch directly between Quick Menu mode
and Main Menu mode.
[Main Menu]
Press [Main Menu] to program all parameters. The main
menu parameters can be accessed immediately unless a
password has been created via:
