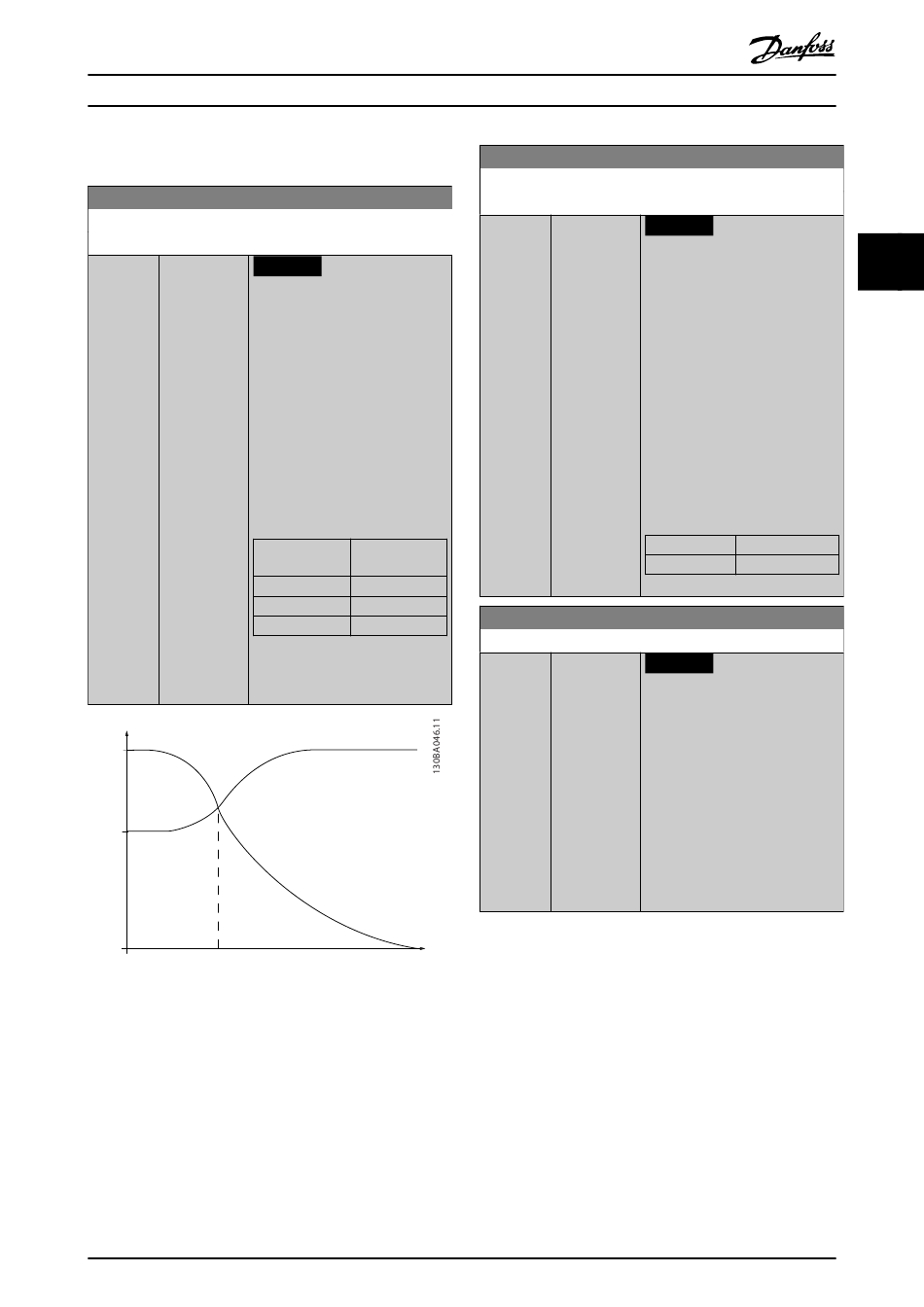

Danfoss VLT FC 102 Programming Manual page 63

Parameter Descriptions
3.3.8 1-6* Load Depend. Setting
1-60 Low Speed Load Compensation
This parameter is not visible on the LCP.
Range: Function:
NOTICE
100 % [0 - 300 %]
*
Parameter 1-60 Low Speed Load
Compensation has no effect
when parameter 1-10 Motor
Construction = [1] PM, non-
salient SPM.
Enter the % value to compensate
voltage in relation to load when the
motor is running at low speed, and
obtain the optimum U/f charac-
teristic. The motor size determines
the frequency range within which
this parameter is active.
Motor size [kW]
0.25–7.5
11–45
55–550
Table 3.8 Low-speed Load
Compensation
U
m
Par.1-60
100%
60%
0%
Changeover
Illustration 3.9 Low-speed Load Compensation
M0010001
Programming Guide
1-61 High Speed Load Compensation
This parameter is not visible on the LCP.
Range:
100 %
*
Changeover
[Hz]
<10
<5
1-62 Slip Compensation
<3–4
Range:
0 %
*
Par.1-61
f
out
Danfoss A/S © 10/2019 All rights reserved.
Function:
NOTICE
[0 - 300 %]
Parameter 1-61 High Speed
Load Compensation has no
effect when
parameter 1-10 Motor
Construction = [1] PM, non-
salient SPM.
Enter the % value to compensate
voltage in relation to load when the
motor is running at high speed,
and obtain the optimum U/f
characteristic. The motor size
determines the frequency range
within which this parameter is
active.
Motor size
1.1–7.5 kW
Function:
NOTICE
[-500 -
500 %]
Parameter 1-62 Slip Compen-
sation has no effect when
parameter 1-10 Motor
Construction = [1] PM, non-
salient SPM.
Enter the % value for slip compen-
sation to compensate for tolerances
in the value of n
sation is calculated automatically,
based on the rated motor speed
n .
M,N
3
Changeover
>10 Hz
. Slip compen-
M,N
61
