Cruise Control Switch

Testing
Electrical System: Component Testing
g288513
1. Operator control console
The cruise control switch is located on the console arm
the top of the cruise control switch is depressed, the cruise control feature is
off. When the switch is moved to the center position, the cruise control feature
is enabled but no speed is set. When the machine is moving in the forward
direction above the minimum speed and the switch is momentarily moved
downward, the cruise control feature is engaged and the current traction speed
will be maintained.
The slave controller monitors the position of the cruise control switch (off, enable
or engage). The slave controller communicates the switch position to the master
controller via the CAN network. Using inputs from the cruise control switch
and the traction pedal position sensor, the master controller holds the piston
(traction) pump forward control solenoid in its current position. Once engaged,
the cruising speed can be increased (+) or decreased (−) incrementally through
the InfoCenter Display (see
Note: The cruise function is disengaged when the cruise control switch is set to
OFF or if the traction pedal is pressed to the reverse direction.
1. Park machine on a level surface, lower cutting decks and stop engine.
Remove key from key switch.
2. Turn battery−disconnect switch to the OFF position.
3. Disassemble the console arm to gain access to the switch (see
Arm (page 7–35)).
4. Disconnect machine wire harness connector from the switch being tested.
g288514
5. The switch terminals are marked as shown in
of the cruise control switch is shown in below table. With the use of a
multimeter (ohms setting), the switch functions may be tested to determine
whether continuity exists between the various terminals for each position.
Verify continuity between switch terminals.

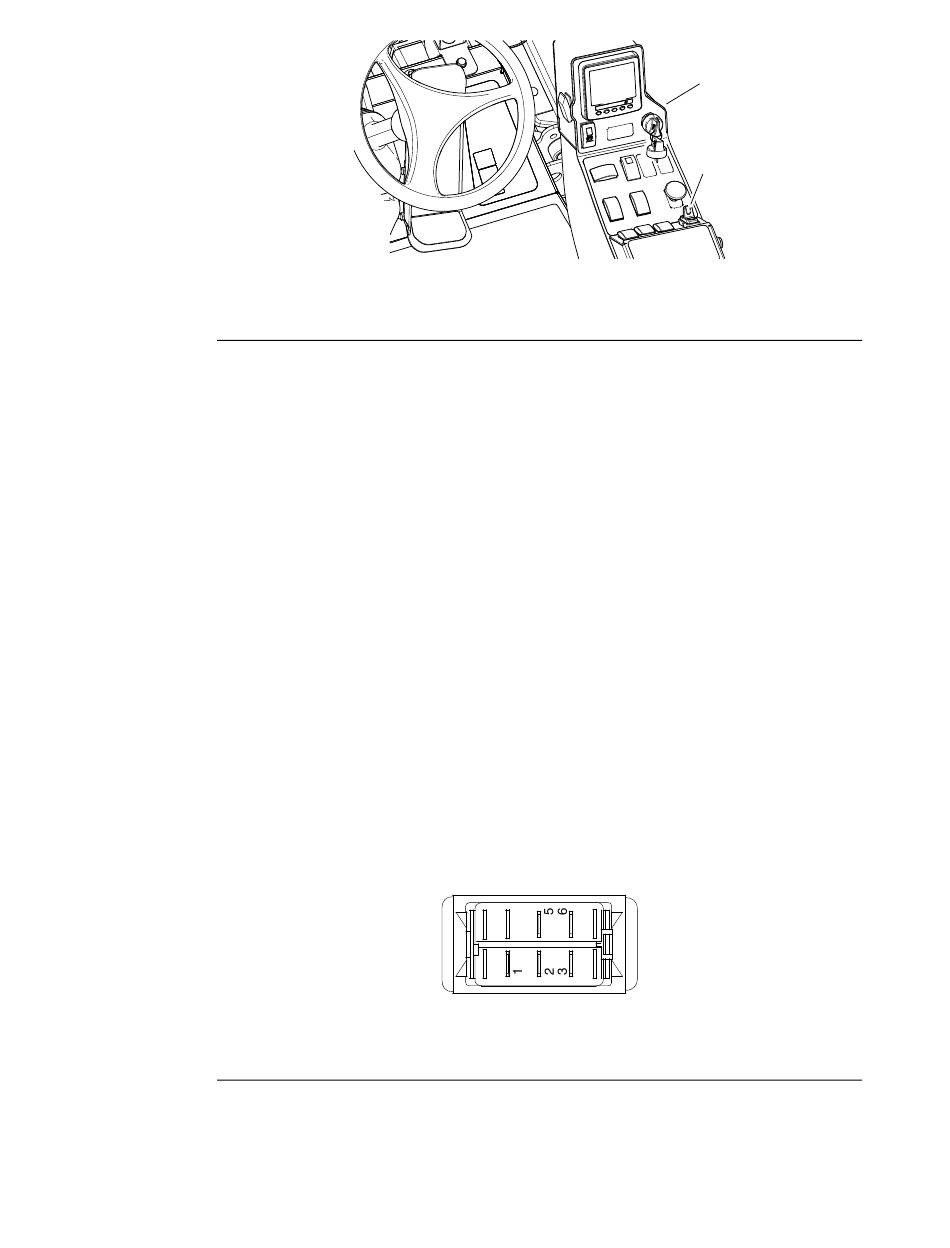

Figure 218
2. Cruise control switch
InfoCenter Display (page
Figure 219
Back of Switch
Page 6–78
1
2
(Figure 218). When
6–9)).
Console
Figure 219. The circuit logic
