Toro groundsmaster 3240-d Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Part No. 111-0477 Rev A

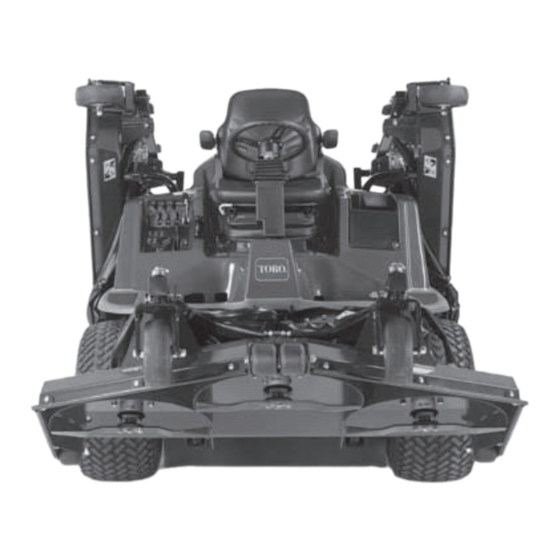

Groundsmaster 3240-D
Code: 653D-Serial No. from 260000001
Original Instructions (EN)

Advertisement

Table of Contents
loading

Related Manuals for Toro groundsmaster 3240-d

Summary of Contents for Toro groundsmaster 3240-d

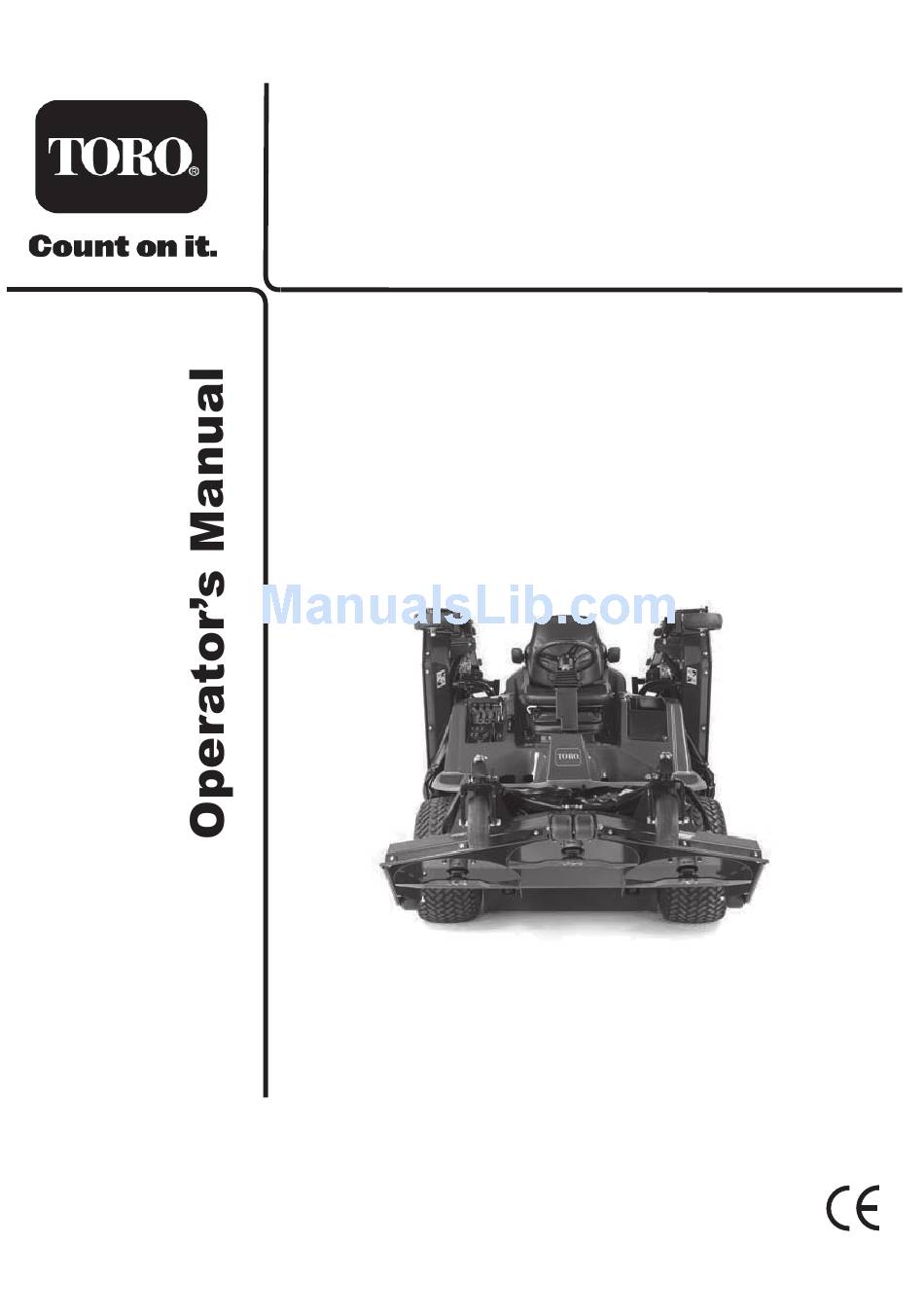

  • Page 1 Part No. 111-0477 Rev A Groundsmaster 3240-D Code: 653D-Serial No. from 260000001 Original Instructions (EN)
  • Page 3 THIS SYMBOL MEANS BE ALERT! YOUR SAFETY IS INVOLVED READ THIS MANUAL BEFORE USING THE GROUNDSMASTER 3240-D. IT IS ESSENTIAL THAT OPERATORS STUDY IT FOR THEIR OWN SAFETY. ALL OPERATORS SHOULD SEEK AND OBTAIN PROFESSIONAL AND PRACTICAL INSTRUCTIONS ON THE SAFE USE OF THE MOWER. THESE...

  • Page 4: Table Of Contents

    CONTENTS CONTENTS Page No. 1.6 - 1.14 SAFETY PRECAUTIONS. Training. Preparation. 1.6 - 1.7 Operation. 1.7 - 1.9 Maintenance and storage. 1.10 1.11 - 1.14 Decals. 1.15 - 1.16 EC CONFORMITY INFORMATION. Noise levels. 1.15 EC Declaration of Conformity. 1.16 INTRODUCTION.
  • Page 5 CONTENTS CONTENTS Continued. Page No. Fuel level gauge. 1.34 Hourmeter. 1.34 Transmission neutral indicator light. 1.35 Cutterdeck drive switch indicator light. 1.35 Parking brake indicator light. 1.35 Hydraulic return filter indicator light. 1.35 Hydraulic transmission filter indicator light. 1.35 Transmission system ‘Work’ mode indicator light. 1.35 Cutterdeck position control.
  • Page 6 SAFETY PRECAUTIONS READ THIS MANUAL BEFORE USING THE GROUNDSMASTER 3240-D, IT IS ESSENTIAL THAT OPERATORS STUDY IT FOR THEIR OWN SAFETY. THE FOLLOWING PRECAUTIONS MUST BE TAKEN TO HELP PREVENT ACCIDENTS. A CAREFUL OPERATOR WHO USES COMMON SENSE IS THE SAFEST OPERATOR.
  • Page 7 SAFETY PRECAUTIONS PREPARATION Continued Ensure that the cutterdecks are fully raised with the latches and safety locks engaged in position before transporting the mower. Replace faulty silencers. Check the condition of the tyres and ensure that they are inflated to the correct pressures, refer - SPECIFICATIONS.
  • Page 8 SAFETY PRECAUTIONS OPERATION Continued. Do not use on a slope of more than 15 degrees. Care should be taken when using the mower on any slope where ground conditions are such that there may be a risk of the mower rolling over. The requirements of SI 1998 No.
  • Page 9 SAFETY PRECAUTIONS OPERATION Continued. Watch out for traffic when crossing or near roadways. Use extreme caution when reversing. Disengage the cutterdeck drive system before crossing surfaces other than grass. When using the machine, never direct the discharge of material towards bystanders or allow anyone near the machine while in operation.

  • Page 10: Safety Precautions. 1.6

    Health and Safety at Work Act: In accordance with section 6 of the Health and Safety at Work Act 1974, the Toro Groundsmaster 3240-D has been designed and constructed so that, in so far as is reasonably practical, it will not endanger the safe- ty and health of those working with it.

  • Page 11: Decals. 1.11

    SAFETY PRECAUTIONS 1.11 1.11 DECALS Decal - Control Panel Part No: 994910 Location: Control Panel. a) Ignition Switch h) Horn b) Engine Speed - Slow i) Cutters - Lift c) Engine Speed - Fast j) Cutters - Hold d) Parking Brake - Engage k) Cutters - Drop/Float e) Parking Brake - Disengage l) Hour Meter f) Cutters - Off...

  • Page 12: Decals Continued

    SAFETY PRECAUTIONS 1.12 1.12 DECALS Continued. Decal - Jacking / Support Point Part No: 70-13-072 Location: Front Axle - 2 Points Rear Towing Eye Jacking and support point Decal - Engine Fan / Radiator ONLYREMOVE RADIATORCAPWHEN ENGINEISCOOL. IL FAUTTOUJOURSATTENDRELE REFROIDISSEMENTDUMOTEUR Part No: 70-13-073 AVANTDERETIRERLE BOUCHONDURADIATEUR.
  • Page 13 SAFETY PRECAUTIONS 1.13 1.13 DECALS Continued. Decal - Serial Number Location: Rear Bulkhead GM3240-D - GROUNDSMASTER 1800 2650 kW Code Serial No: 653D 260000001 PREVENT PLATFORM DAMAGE ! Decal - Prevent Platform Damage ENGAGE PARKING BRAKE AND DROP CUTTERHEADS BEFORE Part No.
  • Page 14 SAFETY PRECAUTIONS 1.14 1.14 DECALS Continued. Decal - Warning Hands, Feet Part No: 40-13-010 (1) Location: On Decks. Decal - Blade Part No: 994913_1 Location: On Decks. A = 994805 B = 994806 994806 X2 994805 X2 Decal - Sprung Hazard GM3240-D Part No: 994913_2 Location: Side of Machine.

  • Page 15: Ec Conformity Information. 1.15

    1.15 1.15 NOISE LEVELS Operators Daily Personal Noise Exposure: The Toro Company has no control over site conditions, duration of use, state of maintenance or adjustment of the mower. All of these factors will affect the operator's daily GM3240-D -...

  • Page 16: Ec Declaration Of Conformity

    EC CONFORMITY INFORMATION 1.16 1.16 EC DECLARATION OF CONFORMITY EC DECLARATION OF CONFORMITY Manufactured for The Toro Company By: HAYTER LIMITED, Spellbrook, Bishop’s Stortford, Herts. CM23 4BU. ENGLAND declare that the lawnmower: Model name: GM3240-D Type: Ride-on Rotary Model No:...

  • Page 17: Introduction

    The safety precautions listed here in and all other generally recognised regulations on safety and all road traffic regulations must be observed at all times. Any arbitrary modifications carried out to this machine may relieve The Toro Company of liability for any resulting damage or injury.

  • Page 18: Specifications. 1.18

    SPECIFICATIONS 1.18 1.18 SPECIFICATIONS ALL FIGURES ARE NOMINALLY QUOTED AT THE RATED NO LOAD ENGINE SPEED OF 2800 RPM UNLESS OTHERWISE STATED. ENGINE Kubota V2003M - T diesel. Type: 4 Cylinders in-line. 59hp (44 kw) @ 2800 RPM. Power Rating: DIN 70020.

  • Page 19: Transmission System

    SPECIFICATIONS 1.19 1.19 TRANSMISSION SYSTEM Drive Type: Hydraulic. Pump: Variable displacement hydraulic piston pump with integral charge pump and servo control. Wheel Motors: Front Axle - Twin lock radial piston, fixed displacement, with integral disc brake (pressure released) Rear Axle - Radial piston, fixed displacement with pedal con- trol (only available in work mode).

  • Page 20: Cutterdeck Lift System And Steering

    SPECIFICATIONS 1.20 1.20 CUTTERDECK LIFT SYSTEM AND STEERING Drive Type: Hydraulic. Hydraulic gear pump with integral relief valve. Pump: Delivery Rate: 11 Litres per minute. Power beyond hydrostatic steering valve with priority flow to Steering: steering and auxiliary flow to cutterdeck lift system. Manual emergency steering.

  • Page 21: Vehicle Specifications

    SPECIFICATIONS 1.21 1.21 VEHICLE SPECIFICATIONS Travel Speed: 0-25 km/h (0-15 mph) forward. 0-11 km/h (0-7 mph) reverse. Tyres Tyre Type Recommended Tyre Pressures Road Conditions Max Pressure Turf Conditions Front axle 26 x 12 - 12 4 ply 1.4 bar 1.7 bar 0.7 bar Trelleborg turf pattern.

  • Page 22: Operator Controls

    SPECIFICATIONS 1.22 1.22 OPERATOR CONTROLS Steering: Automotive padded steering wheel with adjustable steering column. Cutter Drive: Electrical switch (on - off). Engine Speed: Hand operated lever. Parking Brake: Hand operated lever. Forward and Reverse: Separate foot operated pedals. Ignition: Key start, shut - off and engine preheat. Differential Lock: Foot pedal.

  • Page 23: Weight And Dimensions

    I S O viscosity grade I S O viscosity grade 46 hydraulic oil. 68 hydraulic oil. Should you be in any doubt please contact your Toro dealer. Using incorrect grades will cause premature wear of hydraulic components and invalidate warranty.

  • Page 24: Cutterdecks

    SPECIFICATIONS 1.24 1.24 CUTTERDECKS Centre Cutterdeck Left/Right Cutterdecks 1675 mm 1150 mm Cutterdeck Width: 1600 mm. 1090 mm. Cutting Width: 558 mm. 558 mm. Cutterblade Length: 2400 rpm approx. 2400 rpm approx. Cutterblade Speed: 63 mm 40mm Cutterblade Overlap: 26 - 127 mm. 26 - 127 mm.

  • Page 25: Operating The Mower. 1.25

    OPERATING THE MOWER 1.25 1.25 SAFETY NOTICE WARNING: PREVENT ACCIDENTS - Before operating the mower it is essential that; - The operator reads and understands this manual. - The operator platform latching mechanism is fully engaged and in good working order, refer - Operator Platform Latching Mechanism. - The daily maintenance checks have been properly carried out and the mower is in good working order.

  • Page 26: Identification Of Controls

    OPERATING THE MOWER 1.26 1.26 IDENTIFICATION OF CONTROLS 1. Parking brake lever. 2. Lighting switch (supplied with lighting kit). 3. Warning beacon switch (supplied with beacon kit). 4. Hazard warning switch (supplied with lighting kit). 5. Cutterdeck position controls. 6. Throttle control lever. 7.

  • Page 27: Braking System

    1.27 1.27 OPERATING THE MOWER BRAKING SYSTEM Parking Brake Engaged Parking Brake Engaged Parking Brake : Move the parking brake lever to its rear position to engage the parking brake. Do not operate the mower with the parking brake engaged. WARNING : PREVENT ACCIDENTS - The parking brake operates on the front wheels only.

  • Page 28: Work/Transport Modes

    OPERATING THE MOWER 1.28 1.28 WORK/TRANSPORT MODES WARNING : PREVENT ACCIDENTS - Ensure that the mode selected is appropriate to the mode of operation of the machine. Select ‘Work’ mode when operating the mower in conditions of poor traction when maximum tractive per- formance is required.

  • Page 29: Differential Lock

    1.29 OPERATING THE MOWER 1.29 DIFFERENTIAL LOCK WARNING : PREVENT ACCIDENTS - Do not engage the differential lock at high speed. The turning circle will increase with the differential lock engaged. The differential lock is effective only when ‘Work’ mode is selected. The differential lock operates in both ‘forwards’...

  • Page 30: Forward Travel Speed Backstop Lever

    OPERATING THE MOWER 1.30 1.30 FORWARD TRAVEL SPEED BACKSTOP LEVER The backstop lever can be used to limit the move- ment of the forward pedal for accurate forward trav- el speed, and the clip rate required. Operate the lever in a forward direction to increase the travel speed setting and in a rearward direction to decrease.

  • Page 31: Adjustable Steering Column

    1.31 OPERATING THE MOWER 1.31 ADJUSTABLE STEERING COLUMN WARNING: PREVENT ACCIDENTS - Before operating the mower, ensure that the steering column adjuster mechanism is in good working order and that the steering wheel is locked securely in position. WARNING: PREVENT ACCIDENTS - Adjustment of the steering wheel and steering column should only be carried out when the mower is at a standstill with the parking brake engaged.

  • Page 32: Operator Seat

    OPERATING THE MOWER 1.32 1.32 OPERATOR SEAT WARNING: PREVENT ACCIDENTS - Before operating the mower ensure that the operator seat mechanisms are in good working order and that the seat is locked securely in position. WARNING: PREVENT ACCIDENTS - Adjustment of the seat mechanisms should only be carried out when the mower is at a standstill with the parking brake engaged.

  • Page 33: Warning Systems

    1.33 OPERATING THE MOWER 1.33 WARNING SYSTEMS Engine coolant overheating warning : The engine coolant warning light illuminates and the horn is actuated. Hydraulic oil overheating warning : The hydraulic oil warning light illuminates and the horn is actuated when the hydraulic oil in the reser- voir exceeds 95˚C approx.

  • Page 34: Ignition Key

    OPERATING THE MOWER 1.34 1.34 IGNITION KEY = Engine off. I = Engine run / Auxiliary on. II = Engine pre-heat. III = Engine start. WARNING : PREVENT ACCIDENTS - Always remove the ignition key when the mower is not in use.

  • Page 35: Transmission Neutral Indicator Light

    1.35 OPERATING THE MOWER 1.35 TRANSMISSION NEUTRAL INDICATOR LIGHT Illuminates when the travel control pedal is in the neutral position and the ignition key is turned to position ‘I’. Note: The parking brake must be engaged for the transmission neutral indicator light to illuminate.

  • Page 36: Cutterdeck Position Control

    OPERATING THE MOWER 1.36 1.36 CUTTERDECK POSITION CONTROL 4A953B03A The cutterdecks may be raised or lowered using the bank of 3 lift control levers. To lower the cutterdecks, operate the lift control levers in a downward direction until locked in position 1. If the cutterdeck drive switch is in the ‘ON’...

  • Page 37: Starting The Engine

    1.37 OPERATING THE MOWER 1.37 STARTING THE ENGINE WARNING: PREVENT ACCIDENTS - Before starting the engine check that ; - The area is clear of bystanders. - The cutterdeck drive is disengaged. - The parking brake is engaged. - The travel control pedal is in neutral. - You have read and understood the SAFETY PRECAUTIONS section in this manual.

  • Page 38: Stopping The Engine

    1.38 1.38 OPERATING THE MOWER STOPPING THE ENGINE Allow the engine to idle for 5 minutes before shutting it off after a full load operation. Failure to do so may lead to turbo-charger trouble. GENERAL OPERATING HINTS The rotational speed of the cutterblades should always be kept as high as possible in order to maintain the highest quality of cut.

  • Page 39: Cutterdeck Gerneral Information

    OPERATING THE MOWER 1.39 1.39 CUTTERDECK GENERAL INFORMATION HEIGHT OF CUT ADJUSTMENT - FRONT CUTTERDECK To adjust the height of cut on the front cutterdeck follow the procedure below. Ensure that the mower is sta- tionary on a level surface with the parking brake engaged and the cutterdeck drive disengaged. WARNING: PREVENT ACCIDENTS –...
  • Page 40 OPERATING THE MOWER 1.40 1.40 CUTTERDECK GENERAL INFORMATION Continued. HEIGHT OF CUT ADJUSTMENT - L.H/R.H CUTTERDECKS To adjust the height of cut on the LH and RH cutterdecks follow the procedure below. Ensure that the mower is stationary on a level surface with the parking brake engaged and the cutterdeck drive disengaged. WARNING: PREVENT ACCIDENTS –...
  • Page 41 IMPORTANT: PREVENT DAMAGE - Regular maintenance is essential for the continued safe operation of the machine. Correct servicing will prolong the working life of the machine and safeguard the "Toro Warranty". Always fit genuine service parts as these are accurately matched to the required duty.

  • Page 42: Maintenance

    MAINTENANCE 1.42 1.42 MAINTENANCE Continued. WARNING : PREVENT ACCIDENTS - Use hazardous substances carefully. The following fluids are identified as being hazardous; Substances Assessed risk Diesel oil Lubricating oil Hydraulic oil Grease Anti - freeze Medium Battery acid High When using any of the above fluids it is recommended that eye protection and gloves are worn and that care is taken to prevent spillage.

  • Page 43: Engine

    1.43 MAINTENANCE 1.43 ENGINE ENGINE Refer to the Engine Operator's Manual for maintenance information. RUNNING IN PERIOD Check wheel nut torque settings: During first 50 hours of use and in addition to routine checks. Refer - DAILY AND BEFORE USE. Check wheel nut torques twice a day. Front axle wheel nut torque setting - 200 Nm.

  • Page 44: Running In Period - At First 50 Hours. 1.43

    MAINTENANCE 1.44 1.44 RUNNING IN PERIOD - AT FIRST 50 HOURS Continued. Change the hydraulic oil return filter: Unscrew and remove the return filter canister and discard. Refit a new filter canister (part no. 924692). Left Hand Side of Machine 1P953C16A 1.

  • Page 45: Daily And Before Use. 1.45

    1.45 MAINTENANCE 1.45 DAILY AND BEFORE USE Check engine oil level: If the oil level is below the upper mark on the dipstick, top up with the correct grade of engine oil to the required level, refer - ENGINE MANUAL. Check engine radiator coolant level: WARNING: PREVENT ACCIDENTS - Avoid scalding.
  • Page 46 MAINTENANCE 1.46 1.46 DAILY AND BEFORE USE Continued. Clean the radiator screen: Clean the radiator screen. Check the oil cooler and engine radiator grille for debris and clean as necessary, using a brush or airline. If water is used, these areas should be allowed to dry out completely before use.
  • Page 47 DO NOT use the mower unless the operator presence con- trols work correctly as described below. If difficulties arise, consult your "Toro dealer”. Operator presence seat switch: Sit on the operator seat and start the engine with the parking brake on.
  • Page 48 MAINTENANCE 1.48 1.48 DAILY AND BEFORE USE Continued. Transmission neutral interlock switch: Stop the engine and engage the parking brake. Ensure that the drive pedal is in the stop (neutral) posi- tion and turn the ignition key to position ‘I’. The transmission neutral indicator light should illuminate. Refer - OPERATING THE MOWER.

  • Page 49: Every 50 Hours

    MAINTENANCE 1.49 1.49 EVERY 50 HOURS Perform routine checks : Refer - DAILY BEFORE USE. Check wheel nut torque settings: Front axle wheel nut torque setting - 200Nm. Rear axle wheel nut torque setting - 54 Nm. Grease pivot points : Clean and grease all grease points with a good quality compound of the grade specified, refer - SPECI- FICATIONS.

  • Page 50: Every 250 Hours

    MAINTENANCE 1.50 1.50 EVERY 250 HOURS Perform routine checks : Refer - DAILY BEFORE USE. - EVERY 50 HOURS. Check battery condition : WARNING : PREVENT ACCIDENTS - Explosive gases are produced by the battery. Work in a well ventilated area, away from all sources of ignition. Battery fluids are corrosive.

  • Page 51: Every 500 Hours

    MAINTENANCE 1.51 1.51 EVERY 500 HOURS Perform routine checks : refer - DAILY BEFORE USE. - EVERY 50 HOURS. - EVERY 250 HOURS. Thoroughly clean the machine: IMPORTANT: PREVENT DAMAGE - Keep water away from electrical components. Use a dry cloth or brush to clean such areas.
  • Page 52 1.52 MAINTENANCE 1.52 Continued. EVERY 500 HOURS ENGINE Renew the engine air cleaner filter: Check the condition of the air cleaner hoses. Replace any hose which is damaged and tighten the connections, refer - ENGINE MANUAL. Renew the engine fuel filter element: Refer - ENGINE MANUAL. ENGINE Check electrical system: Inspect all electrical connections and cables and replace any which are damaged or corroded.
  • Page 53 MAINTENANCE 1.53 1.53 EVERY 500 HOURS Continued. Check the engine overheat warning system: Turn the ignition key to the ‘ignition on’ position 'I'. Disconnect the red/grey wire terminal from the engine temperature switch and touch the metal terminal of this wire onto a suitable earth point, ensuring that the metal surfaces make good contact. The horn will sound and the engine coolant temperature warning light will illuminate to confirm correct operation.

  • Page 54: Cutterdecks

    MAINTENANCE 1.54 1.54 CUTTERDECKS Check tyres: Examine all tyres and replace any that are damaged. Check safety devices: WARNING: PREVENT ACCIDENTS - Ensure that all safety guards, shields and protective devices are securely in place and in good working order. Check that cutterdeck drive cut outs operate correctly and that the cutterblades do not continue to operate when the cutterdecks are more than 300mm above ground level.

  • Page 55: Cutterblades

    MAINTENANCE 1.55 1.55 CUTTERBLADES Cutterblade Removal WARNING: PREVENT ACCIDENTS - ALWAYS switch off the engine, apply the parking brake and remove the ignition key before working on the cutterblades. The cutterblades have sharp edges. Wear strong gloves to protect the hands when working on the cutterblades. DO NOT operate tools towards the cutting edges to avoid the risk of injury should the tool slip.
  • Page 56 MAINTENANCE 1.56 1.56 CUTTERBLADES Bolt - Motor Bolt - Cutterblade Locating Ring Cutterblade Mounting Key - Motor Cutterblade - Lock Tab 4D994C01A Regularly check that the cutterblade securing bolts (items 1 and 2) are tightened to the specified torque and re-new cutterbar - lock tabs. Bolt (item 1) - Torque to 70-95Nm.

  • Page 57: Raising The Mower Off The Ground

    MAINTENANCE 1.57 1.57 RAISING THE MOWER OFF THE GROUND WARNING: PREVENT ACCIDENTS - Before raising the mower ensure that: The lifting device to be used is in good condition and capable of supporting the weight of the mower securely. Minimum lift capacity 2500 Kg. The mower is on level ground.

  • Page 58: Towing The Mower. 1.58

    1.58 MAINTENANCE 1.58 TOWING THE MOWER Towing procedure : Connect a rigid tow bar between the towing eye on the mower and a suitable towing vehicle. Ensure that the towing vehicle specification is suited to braking the combined vehicle weight to rest whilst effecting complete control at all times. Ensure that the towing vehicle’s parking brake is applied.
  • Page 59 1.59 1.59 MAINTENANCE TOWING THE MOWER Continued. Bypass Valve De-commission the hydraulic service braking system as follows:- Open the transmission bypass valve situated as shown on top of the transmission pump. The valve is fully open at 3 anti-clockwise revolutions. Do not open the valve past 3 revolutions.

  • Page 60: Grass Cutting Faults. 1.60

    GRASS CUTTING FAULTS 1.60 1.60 1.60 GRASS CUTTING FAULTS FAULT POSSIBLE CAUSE REMEDY Areas of uncut grass at Turning too tightly. Increase turning radius. point of overlap between cutterdecks Mower sliding sideways when travelling across face of a slope. Mow up/down slope. One end of cutterdeck out of ground contact caused by: - Poorly routed hoses or wrongly...
  • Page 61 GRASS CUTTING FAULTS Continued. POSSIBLE CAUSE FAULT REMEDY Undulations too severe Raise rear of cutting deck / Raise Scalping. for height of cut setting. height of cut. Contact your Toro dealer if you have a problem which is not outlined above...
  • Page 62 TROUBLE SHOOTING 1.62 1.62 TROUBLE SHOOTING When using the following chart it may be found that overhaul of major components or hydraulic pressure adjustments are necessary. In this case it is recommended that your dealer make these repairs as he is properly equipped to do this work. WARNING: PREVENT ACCIDENTS - ALWAYS Apply the parking brake, switch off the engine and remove the ignition key before attempting to work on the mower.
  • Page 63 Fill reservoir to correct level. Brakes engaged. Disengage brakes. Defective fan or fan drive. Check fan operation and service as required. Consult your Toro dealer. Incorrect brake Faulty wheel motor brake operation. assembly. Replace brake discs. Worn brake discs. Consult your Toro dealer.
  • Page 64 Cutterdeck fails to lift out of work. Have relief valve Pressure relief valve cleaned and pressure jammed open or wrongly set. checked. Consult your Toro dealer. Overhaul control Defective control valve. valve. Remove blockage. Mechanical blockage. Move cutterdecks Cutterdecks do not follow...
  • Page 65 Overhaul control valve. valve. - Electrical fault. Have electrical system checked. Cutterblades rotate in Hoses wrongly connected. Check hydraulic wrong direction. circuit and reconnect as necessary. Contact your Toro dealer if you have a problem which is not outlined above.
  • Page 66 Defective travel pedal Check linkage and linkage. replace defective parts. Defective transmission Have the transmission pump. pump overhauled by your Toro dealer. Transmission relief valve Close relief valve, open. refer - MAINTENANCE - TOWING THE MOWER. Broken drive coupling. Replace drive coupling.

  • Page 67: Trouble Shooting. 1.62

    Excessive oil viscosity Allow system to warm due to cold conditions. Low relief valve setting. Have relief valve cleaned and pressure checked. Consult your Toro dealer. Low hydraulic oil level. Fill hydraulic oil reservoir to correct level.
  • Page 68 Change filter element. Oil filter element blocked. Have relief valve cleaned and Faulty pressure relief valve. pressure checked. Consult your Toro dealer. Reduce workrate i.e. increase Overheating. height of cut or reduce forward speed. Incorrect hydraulic oil grade, refer - Problem ‘Hydraulic Oil System...

  • Page 69: Electrical Circuit Diagram. 1.69

    ELECTRICAL CIRCUIT DIAGRAM 1.69 1.69...
  • Page 70 1.70 ELECTRICAL CIRCUIT DIAGRAM 1.70 ITEM NO. DESCRIPTION PART NO. Switch - Parking Brake Interlock. 950865 Glow Plug Timer. 15694-65992 Light - Parking Brake. 924601/950858 Light - Glow Plugs. 924601/950857 Light - Neutral. 924601/950862 Light - Cutterdeck Drive Off. 924601/950861 Light - Return Filter.
  • Page 71 ELECTRICAL CIRCUIT DIAGRAM 1.71 1.71...
  • Page 72 1.72 ELECTRICAL CIRCUIT DIAGRAM 1.72 ITEM NO. DESCRIPTION PART NO. Alternator/Regulator. Engine Temperature Sender (supplied with temp kit). Glow Plugs. Switch - Engine Overheat. Solenoid - Engine Fuel Engine V2003 M-T. 994800 Hourmeter. 910850 Switch - Return filter. Solenois - Work/Transport Mode. 910627 Switch - L/H Deck Interlock.

  • Page 73: Transmission/Brake Hydraulic Circuit. 1.73

    TRANSMISSION / BRAKE - HYDRAULIC CIRCUIT 1.73 1.73...
  • Page 74 1.74 TRANSMISSION / BRAKE - HYDRAULIC CIRCUIT 1.74 ITEM NO. DESCRIPTION PART NO. Motor - Front Wheel Twinlock - 332cc/Rev 953686 Motor - Front Wheel Twinlock - 332cc/Rev 953682 Manifold - Front Transmission 953683 Valve - Solenoid - Work/Transport Valve - Pilot Operated - Diff Lock Relief Valve - Serial Lines - 80 bar Valve Solenoid - Diff Lock Relief Valve - Front Motor - 375 Bar...

  • Page 75: Hydraulic Circuit Diagram. 1.75

    HYDRAULIC CIRCUIT DIAGRAM 1.75 1.75...
  • Page 76 1.76 HYDRAULIC CIRCUIT DIAGRAM 1.76 ITEM NO. DESCRIPTION PART NO. Gear Pump – Triple – Cutters & Lift 950712 Relief Valve – Steering & Lift – 120 bar Cutter Deck Left Cutter Deck Centre Cutter Deck Right Cutter Motor Clockwise viewed on shaft end (QTY 3) 950714 Cutter Motor Counter Clockwise viewed on shaft end (QTY 4) 950713...

  • Page 77: Warranty

    Parts replaced under this warranty become the property of contact us at: Toro. Toro will make the final decision whether to repair any existing part or assembly or replace it. Toro may use Toro Commercial Products Service Department factory remanufactured parts rather than new parts for Spellbrook some warranty repairs.
  • Page 78 Parts replaced under this warranty become the property of Spellbrook Toro. Toro will make the final decision whether to repair Bishops Stortford any existing part or assembly or replace it. Toro may use CM23 4BU factory remanufactured parts rather than new parts for England some warranty repairs.

  • Page 79: Notes

    NOTES 1.79 1.79...

  • Page 80: Customer Information

    CUSTOMER INFORMATION 1.80 1.80 MACHINE DETAILS Model: Machine Serial No.: Engine Serial No.: Cutterdeck Serial No.s: Transmission Pump Serial No.: Transmission Valve Block Front Serial No.: Cutter Control Valve (Front & Centre) Serial No.: Cutter Control Valve (Wing) Serial No.:...
