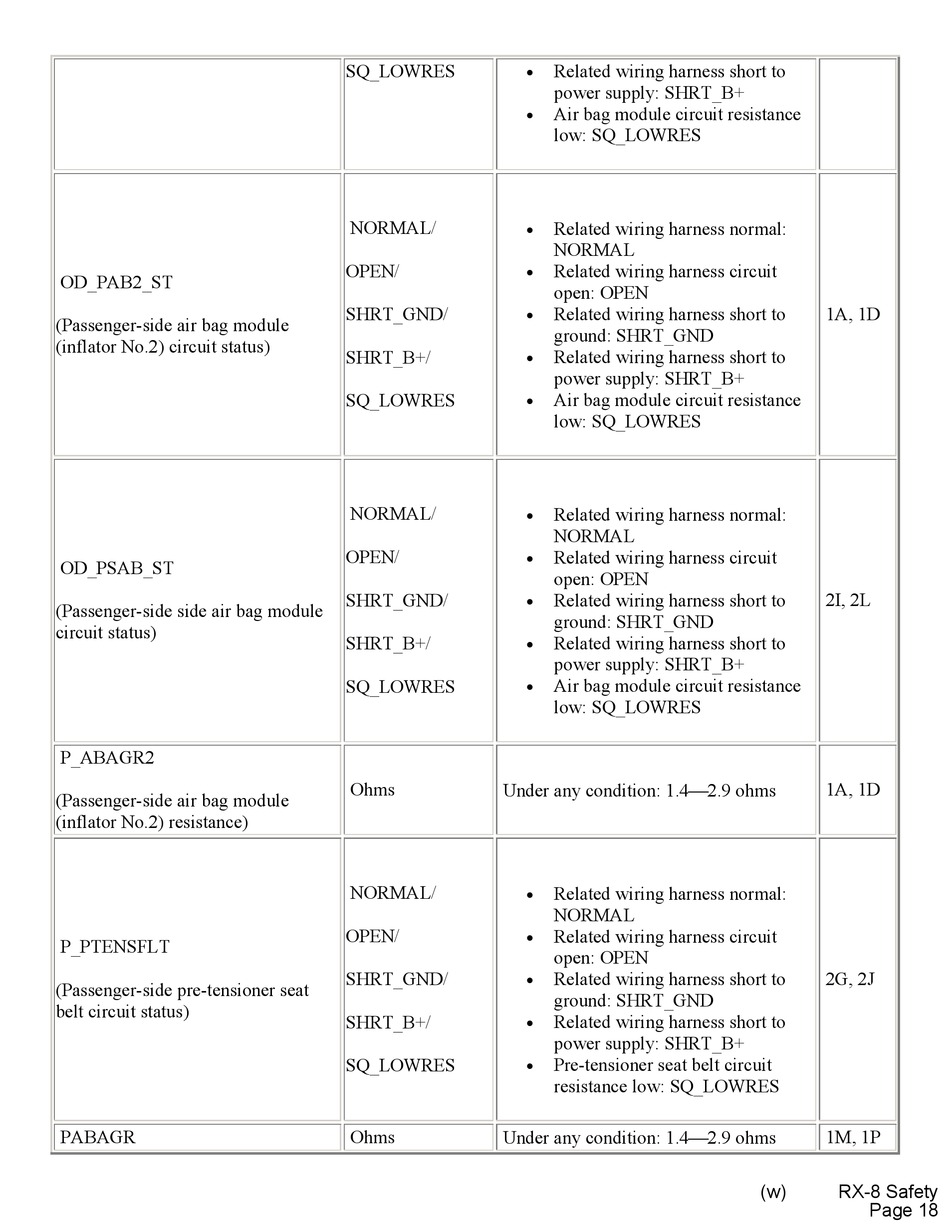

OD_PAB2_ST
(Passenger-side air bag module
(inflator No.2) circuit status)
OD_PSAB_ST
(Passenger-side side air bag module
circuit status)
P_ABAGR2
(Passenger-side air bag module
(inflator No.2) resistance)
P_PTENSFLT
(Passenger-side pre-tensioner seat
belt circuit status)
PABAGR
SQ_LOWRES
NORMAL/
OPEN/
SHRT_GND/
SHRT_B+/
SQ_LOWRES
NORMAL/
OPEN/
SHRT_GND/
SHRT_B+/
SQ_LOWRES
Ohms
Under any condition: 1.42.9 ohms
NORMAL/
OPEN/
SHRT_GND/
SHRT_B+/
SQ_LOWRES
Ohms Under any condition: 1.42.9 ohms
Related wiring harness short to
•
power supply: SHRT_B+
Air bag module circuit resistance
•
low: SQ_LOWRES
Related wiring harness normal:
•
NORMAL
Related wiring harness circuit
•
open: OPEN
Related wiring harness short to
•
ground: SHRT_GND
Related wiring harness short to
•
power supply: SHRT_B+
Air bag module circuit resistance
•
low: SQ_LOWRES
Related wiring harness normal:
•
NORMAL
Related wiring harness circuit
•
open: OPEN
Related wiring harness short to
•
ground: SHRT_GND
Related wiring harness short to
•
power supply: SHRT_B+
Air bag module circuit resistance
•
low: SQ_LOWRES
Related wiring harness normal:
•
NORMAL
Related wiring harness circuit
•
open: OPEN
Related wiring harness short to
•
ground: SHRT_GND
Related wiring harness short to
•
power supply: SHRT_B+
Pre-tensioner seat belt circuit
•
resistance low: SQ_LOWRES
1A, 1D
2I, 2L
1A, 1D
2G, 2J
1M, 1P
