4.2 Spline interpolation (ASPLINE, BSPLINE, CSPLINE, BAUTO, BNAT, BTAN, EAUTO, ENAT,

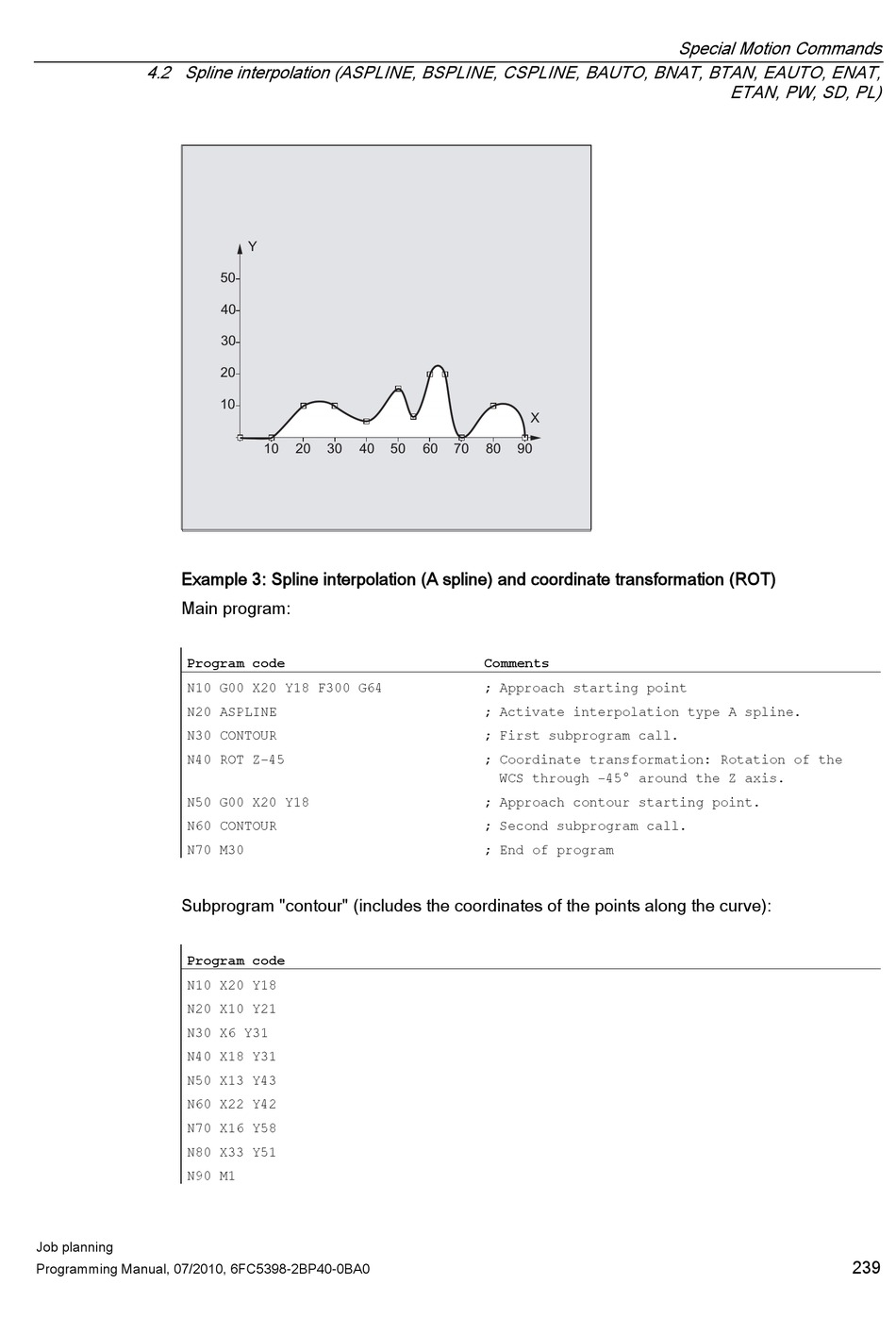

Example 3: Spline interpolation (A spline) and coordinate transformation (ROT)
Main program:
Program code
N10 G00 X20 Y18 F300 G64
N20 ASPLINE
N30 CONTOUR
N40 ROT Z-45
N50 G00 X20 Y18
N60 CONTOUR
N70 M30
Subprogram "contour" (includes the coordinates of the points along the curve):
Program code
N10 X20 Y18
N20 X10 Y21
N30 X6 Y31
N40 X18 Y31
N50 X13 Y43
N60 X22 Y42
N70 X16 Y58
N80 X33 Y51
N90 M1
Job planning
Programming Manual, 07/2010, 6FC5398-2BP40-0BA0
Comments
; Approach starting point
; Activate interpolation type A spline.
; First subprogram call.
; Coordinate transformation: Rotation of the
WCS through -45° around the Z axis.
; Approach contour starting point.
; Second subprogram call.
; End of program
Special Motion Commands
ETAN, PW, SD, PL)
