The user interface of the 4010 system consists of control keys, LEDs, a 2-line by
40-character backlit LCD, and a tone-alert mounted in the control panel. The
purposes of the Operator and Menu keys are listed below.
12:02:15pm
FIRE SYSTEM
ALARM SUPERVISORY
ALARM
SUPV
ACK
ACK
Menu
Function

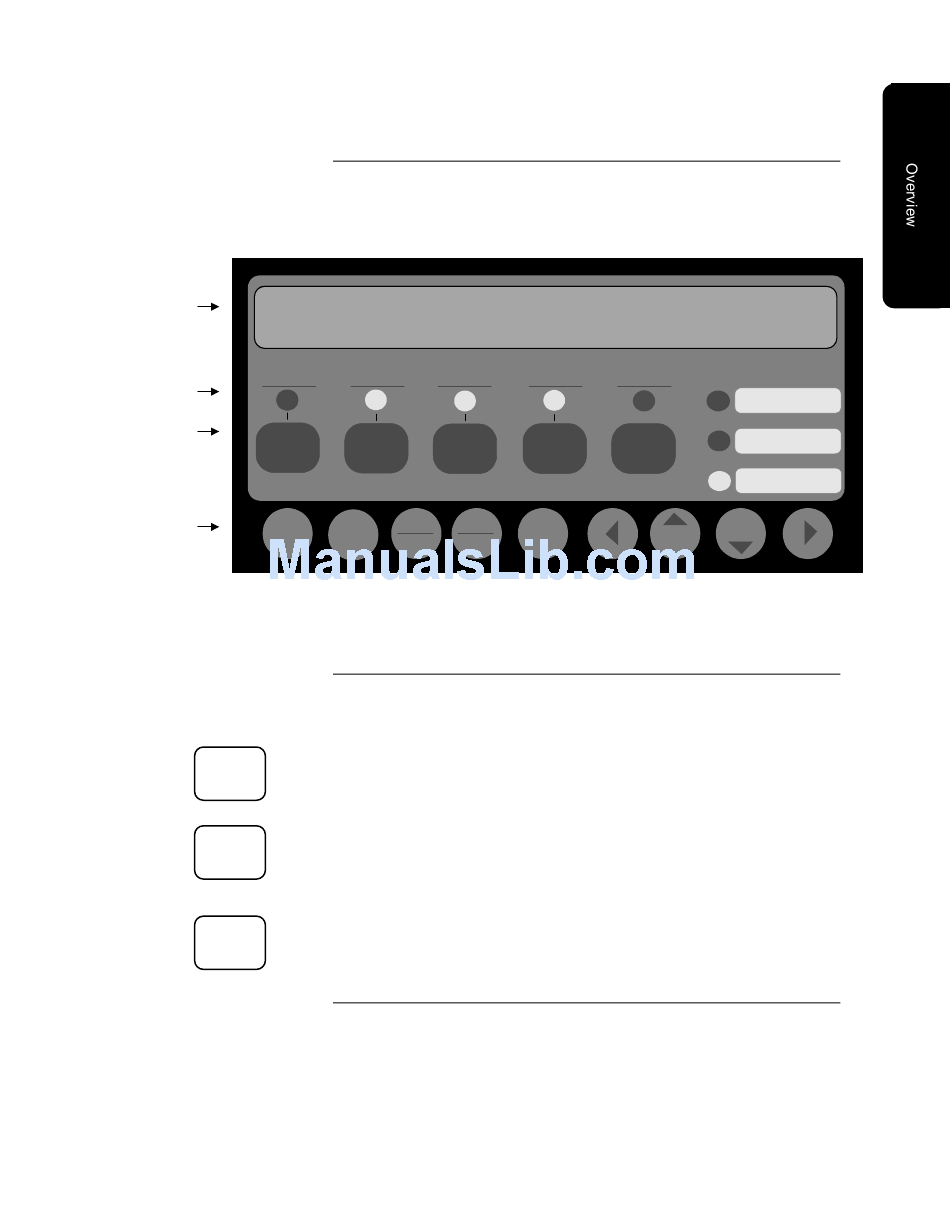

Figure 1-2. 4010 Operator Interface, Showing High-Level Status
The following information defines the operator (rectangular) keys on the 4010
panel.
Alarm Acknowledge <ALARM ACK>
ALARM
The <ALARM ACK> key is used to acknowledge any unacknowledged fire
ACK
alarms in the system and to scroll through the alarms in the active Alarm List.
Supervisory Acknowledge <SUPV ACK>
SUPV The <SUPV ACK> key is used to acknowledge any unacknowledged
ACK
supervisories in the system and to scroll through the supervisory conditions in
the active Supervisory List.
Trouble Acknowledge <TROUBLE ACK>
The <TROUBLE ACK> key is used to acknowledge any unacknowledged
ACK
troubles in the system and to scroll through the troubles in the active Trouble
List.
SYSTEM IS NORMAL
**SYSTEM IS NORMAL**
10:09:33am Wed 27-Aug-97
SYSTEM ALARM
TROUBLE SILENCED
TROUBLE ALARM
ACK SILENCE
Disable Exit
Enter
Enable Clear
Screen
1-9
Thur 04-Jul-96
AC
POWER
User Programmed
SYSTEM User Programmed
RESET
User Programmed
Previous Next
Continued on next page
