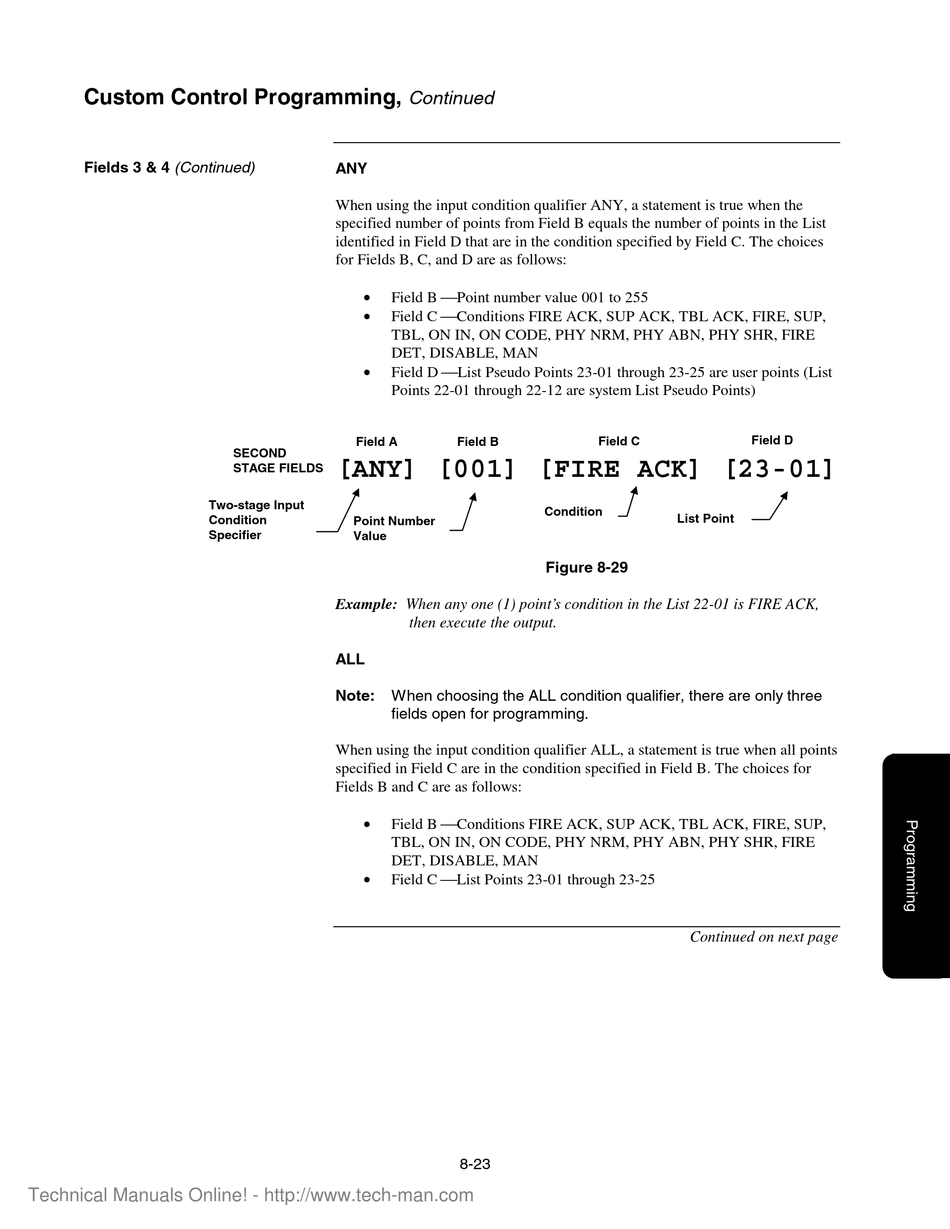

Simplex 4010 Installing And Operating Insructions page 127

Custom Control Programming,
Fields 3 & 4 (Continued)
Technical Manuals Online! - http://www.tech-man.com
ANY
When using the input condition qualifier ANY, a statement is true when the
specified number of points from Field B equals the number of points in the List
identified in Field D that are in the condition specified by Field C. The choices
for Fields B, C, and D are as follows:
•
•
•
Field A
SECOND
[ANY] [001] [FIRE ACK] [23-01]
STAGE FIELDS
Two-stage Input
Condition
Point Number
Specifier
Value
Example: When any one (1) point's condition in the List 22-01 is FIRE ACK,
ALL
Note:
When using the input condition qualifier ALL, a statement is true when all points
specified in Field C are in the condition specified in Field B. The choices for
Fields B and C are as follows:
•
•
Continued
Field B Point number value 001 to 255
Field C Conditions FIRE ACK, SUP ACK, TBL ACK, FIRE, SUP,
TBL, ON IN, ON CODE, PHY NRM, PHY ABN, PHY SHR, FIRE
DET, DISABLE, MAN
Field D List Pseudo Points 23-01 through 23-25 are user points (List
Points 22-01 through 22-12 are system List Pseudo Points)
Field B
Condition
Figure 8-29
then execute the output.
When choosing the ALL condition qualifier, there are only three
fields open for programming.
Field B Conditions FIRE ACK, SUP ACK, TBL ACK, FIRE, SUP,
TBL, ON IN, ON CODE, PHY NRM, PHY ABN, PHY SHR, FIRE
DET, DISABLE, MAN
Field C List Points 23-01 through 23-25
8-23
Field D
Field C
List Point
Continued on next page
