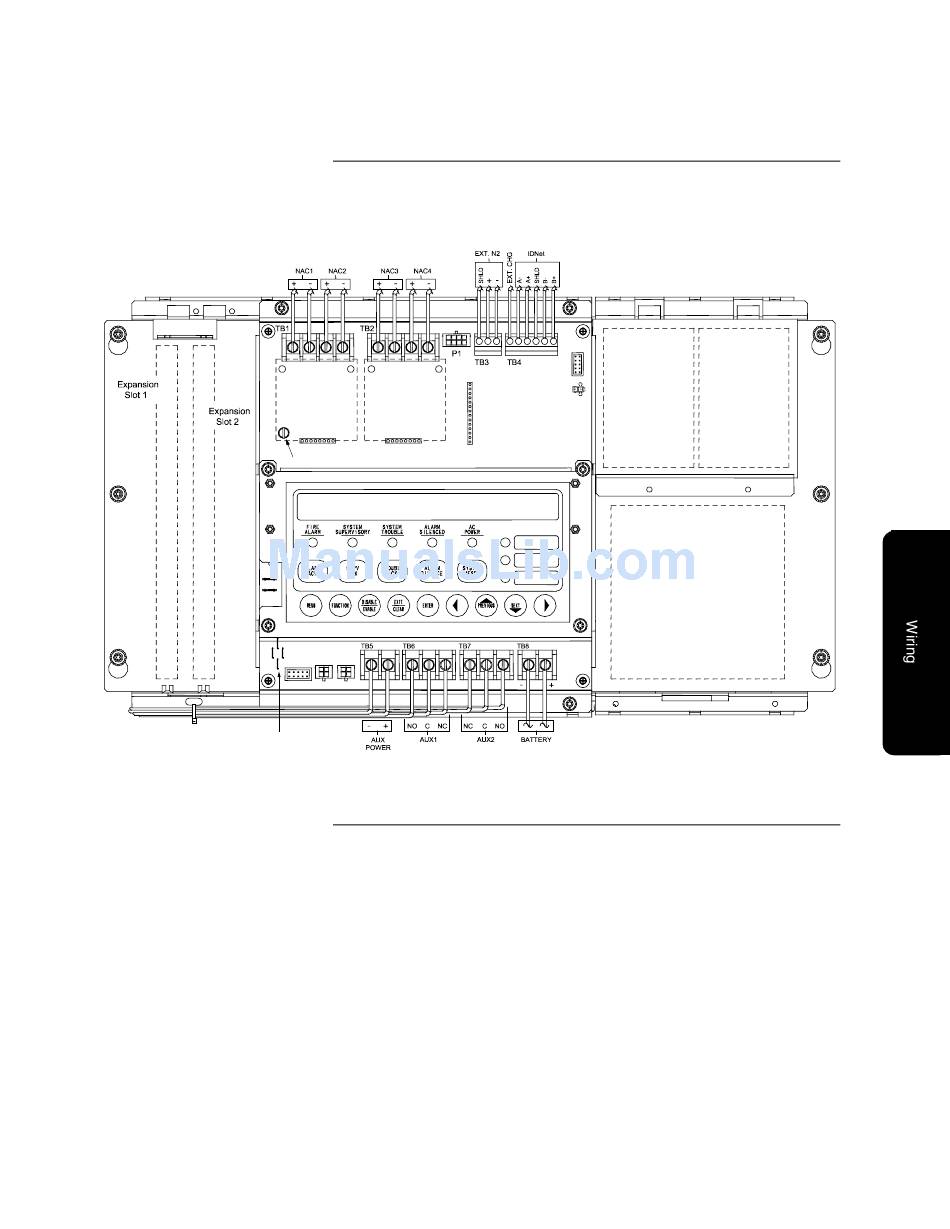

Figure 3-2 shows the location of all terminal connections for the system
components. Refer to the appropriate section later in this chapter for specific
information on wiring a component.
4010-9806 4010-9806
Class A Class A
Module Module
(565-789) (565-789)
Pot for LCD Adjustment
Figure 3-2. Base Panel Wiring
3-3
4010-9820
4010-9809
Battery Meter
City Module
Module
4010-9813
Expansion Power
Supply (565-792)
or
4010-9814
Supression Power
Supply (565-793)
