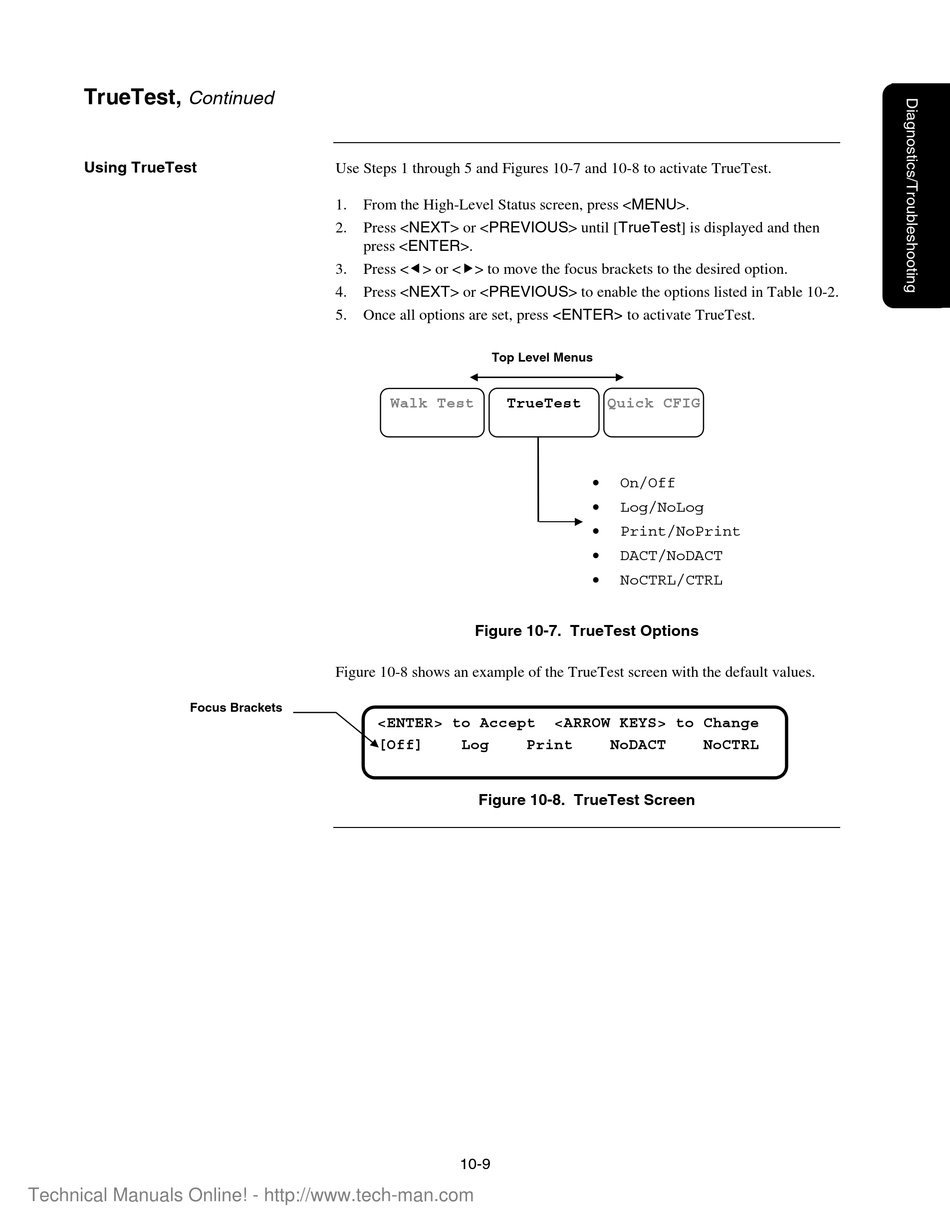

Using Truetest - Simplex 4010 Installing And Operating Insructions

TrueTest,
Continued

Using TrueTest

Focus Brackets
Technical Manuals Online! - http://www.tech-man.com
Use Steps 1 through 5 and Figures 10-7 and 10-8 to activate TrueTest.
1. From the High-Level Status screen, press <MENU>.
2. Press <NEXT> or <PREVIOUS> until [TrueTest] is displayed and then
press <ENTER>.
3. Press <ì> or <ö> to move the focus brackets to the desired option.
4. Press <NEXT> or <PREVIOUS> to enable the options listed in Table 10-2.
Once all options are set, press <ENTER> to activate TrueTest.
5.
Top Level Menus
Walk Test TrueTest
Figure 10-7. TrueTest Options
Figure 10-8 shows an example of the TrueTest screen with the default values.
<ENTER> to Accept
[Off] Log
Figure 10-8. TrueTest Screen
10-9
Quick CFIG
•
On/Off
•
Log/NoLog
•
Print/NoPrint
•
DACT/NoDACT
•
NoCTRL/CTRL
<ARROW KEYS> to Change
Print NoDACT NoCTRL
