UL, ULC, CSFM Listed; FM Approved;
MEA (NYC) Acceptance*

Features

Releasing control using the Simplex
Alarm Control Panel to provide**:
 Coverage for up to 10 hazard areas of Automatic
Extinguishing Release and/or Deluge and Preaction
Sprinkler System Release
 Releasing Appliance Circuit (RAC) control of
compatible Listed/Approved 24 VDC automatic control
actuators, one per circuit; or two 12 VDC actuators in
series per circuit
 RAC provides short circuit supervision to coil
supervision module
 Four, 2 A Notification Appliance Circuits (NACs) in the
panel for use with Suppression Release Peripherals (SRP)
 Additional actuator circuit control and additional NACs
are available using 4009 IDNet Addressable NAC
Extenders and Suppression Release Peripherals
Audible Escalation of Events:
 Temporal or 20 bpm March Time pattern for first
cross-zone alarm
 120 bpm March Time pattern to indicate releasing timer
active
 On steady to indicate releasing timer expired and
actuator is activated
 NOTE: Requires NACs dedicated to conventional horn
control (not SmartSync operation) with strobes
controlled on separate NACs
4009 IDNet NAC Extenders provide:
 Up to eight NACs for notification requirements and for
NAC input to Suppression Release Peripherals
 Control is via IDNet addressable communications
4090-9005/-9006 Suppression Release Peripheral
with Dual Command Control:
 Dual command control requires that both IDNet
communications commands and an activated NAC are
present to initiate the desired release
 NAC provides wiring supervision to the actuator
including monitoring of coil continuity
Suppression Release Peripheral control features:
 An on-board DC-DC regulator compensates for
voltage drops to the peripheral and ensures proper
control circuit voltage over a wide operating range
 Provides a single RAC for control of actuators for up
to 1 A using a 2 A NAC input
Related system components:
 4010 Series control panel with Releasing Appliqué
 Dedicated NAC output from 4010 or NAC Extender
 Coil supervision module, one per RAC
 Maintenance Switch, one per RAC
 Abort Switch connected via an addressable interface
module
UL listed to Standard 864
Releasing Control Fire Alarm Systems
Releasing Control Systems Reference for the
®
4010 Fire
4010 Series Releasing Control Typical Block Diagram

Introduction

The 4010 series fire alarm control panel is capable of
controlling actuators for use in automatic extinguishing,
and deluge or preaction releasing systems. IDNet
addressable communications are used to monitor initiating
devices, and for control of 4009 IDNet NAC extenders
and Suppression Release Peripherals. Releasing system
logic is implemented within the 4010 control panel as
required for the local application.
*
4010 Releasing Control has been approved by the California State Fire Marshal (CSFM)
pursuant to Section 13144.1 of the California Health and Safety Code. See CSFM
Listings 7170-0026:226 and 7300-0026:313 for allowable values and/or conditions
concerning material presented in this document. Accepted for use – City of New York
Department of Buildings – MEA35-93E. Additional listings may be applicable; contact
your local Simplex product supplier for the latest status. Listings and approvals under
Simplex Time Recorder Co. are the property of Tyco Safety Products Westminster.
**
This document describes features available with 4010 software revision 3.01 or higher.
Refer to data sheet S4010-0001 for model 4010 control panel details including IDNet
communications information.

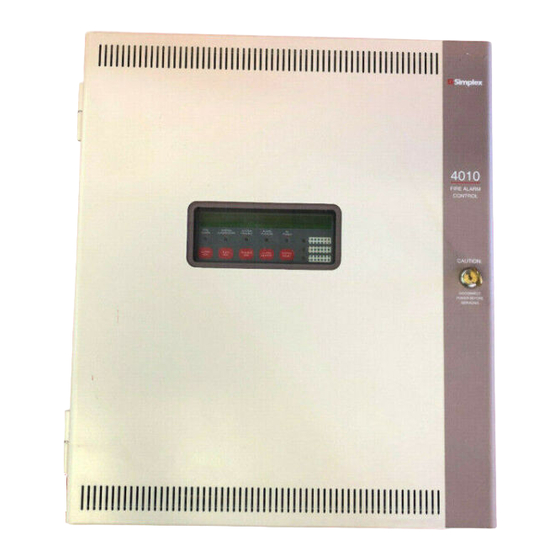

4010 Fire Alarm Control Panel
Actuator Control Circuit
Actuator
Agent
source
Coil supervisory
module
RED
COIL SUPERVISION M ODULE (2 AM P) 2081-9046
YEL
INSTALLATION INSTRUCTIONS 574-437 REV
NAC+
M AINTAIN 1/4" SEPARATION
BETWEEN POWER LIMITED
S
(RED/BLK) AND NONPOWER
LIMITED (YEL/BLK) WIRING
DATE CODE:
519-958
NAC-
BLK
BLK
SIM P LEX TIM E RECORDER CO. GA RDNE R M A. US A
Release
appliance circuit
Maintenance
NORMAL
Disconnect Switch
0
DISC./
1
DISABLE
FIRE SUPPRESSION
(with indicator lamp)
DISCONNECT / DISABLE
FIRE
RELEASING
Suppression
DEVICE
Release Peripheral
Addressable devices
FIRE SUPPRESSION
SYSTEM ABORT
PUSH AND HOLD
MANUAL
RELEASE
** SYSTEM IS NORMAL **
12:02:15pm
Mon 8-Mar-99
FIRE
SYSTEM
SYST EM
ALARM
AC
ALARM
SUPERVISORY
TROUBLE
SILENCED
POWER
ALARM
SUPV
TROUBLE
ALARM
SYST EM
ACK
ACK
ACK
SILENCE
RESET
SUPPRESSION RELEASE PANEL
CAUTION: This Control Unit has been arranged for releasing
service. Disable all releasing device circuits prior to servicing.
4010 Control Panel with
Suppression Release Appliqué
Agent
discharge
path
Power for
indicator lamp
(if required)
IDNet
communications
Dedicated
NAC circuit
FIRE ALARM
CONTROL
C AUTION
DISCO NNECT
POWER BEFOR E
SERVICING
S4010-0003-5 6/2013
