Custom Control Programming,
Field 2 (continued)
Fields 3 & 4
Technical Manuals Online! - http://www.tech-man.com
Continued
OR & NOT

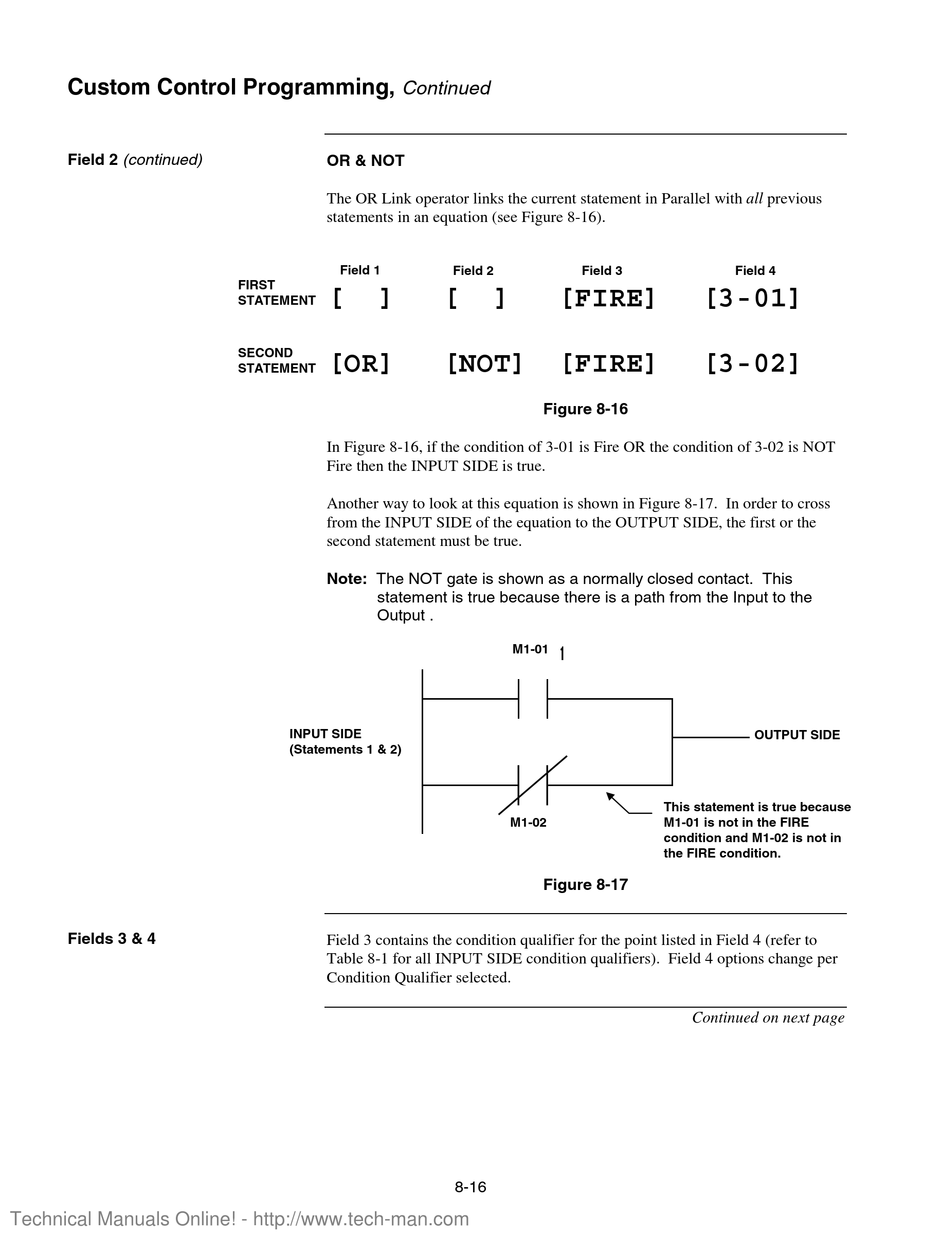

The OR Link operator links the current statement in Parallel with all previous
statements in an equation (see Figure 8-16).
Field 1
FIRST
[ ]
STATEMENT
SECOND
[OR]
STATEMENT
In Figure 8-16, if the condition of 3-01 is Fire OR the condition of 3-02 is NOT
Fire then the INPUT SIDE is true.
Another way to look at this equation is shown in Figure 8-17. In order to cross
from the INPUT SIDE of the equation to the OUTPUT SIDE, the first or the
second statement must be true.
Note: The NOT gate is shown as a normally closed contact. This
statement is true because there is a path from the Input to the
Output .
INPUT SIDE
(Statements 1 & 2)
Field 3 contains the condition qualifier for the point listed in Field 4 (refer to
Table 8-1 for all INPUT SIDE condition qualifiers). Field 4 options change per
Condition Qualifier selected.
Field 2 Field 3
[ ] [FIRE]
[NOT] [FIRE]
Figure 8-16
M1-01
18-01
M1-02
18-02
Figure 8-17
8-16
Field 4
[3-01]
[3-02]
OUTPUT SIDE
This statement is true because
M1-01 is not in the FIRE
condition and M1-02 is not in
the FIRE condition.
Continued on next page
