Editing Custom Labels

How to Edit a Custom Label

Technical Manuals Online! - http://www.tech-man.com
To Edit a Custom Label of a point, use Steps 1 through 11. As an example,
editing the label of a TrueAlarm point is used in the following steps and in
Figure 11-5. Once in the Programming Mode, the 4010 is OFF-LINE.
1. Login to the 4010 at the appropriate level.
2. Press <MENU>.
3. Press <óNEXT> or <€ PREVIOUS> to scroll through the menu until
[Programming] is displayed and then press <ENTER>.
4. Press <óNEXT> or <€ PREVIOUS> to scroll through the menus until
[Configure Points] is displayed and then press <ENTER>.
Press <óNEXT> or <€ PREVIOUS> to scroll through the menus until the
5.
type of point you wish to configure is displayed [TrueAlarm] and then press
<ENTER>.
Press <óNEXT> or <€ PREVIOUS> to scroll through the menus until
6.
[Edit TrueAlarm Point] is displayed and then press <ENTER>.
Press <óNEXT> or <€ PREVIOUS> to scroll through the TrueAlarm
7.
points until the point you wish to edit is displayed and then press
<ENTER>.
Press <óNEXT> or <€ PREVIOUS> to scroll through the menus until
8.
[Edit Point Label] is displayed and then press <ENTER>.
Top Level Menus
Quick CFIG Programming

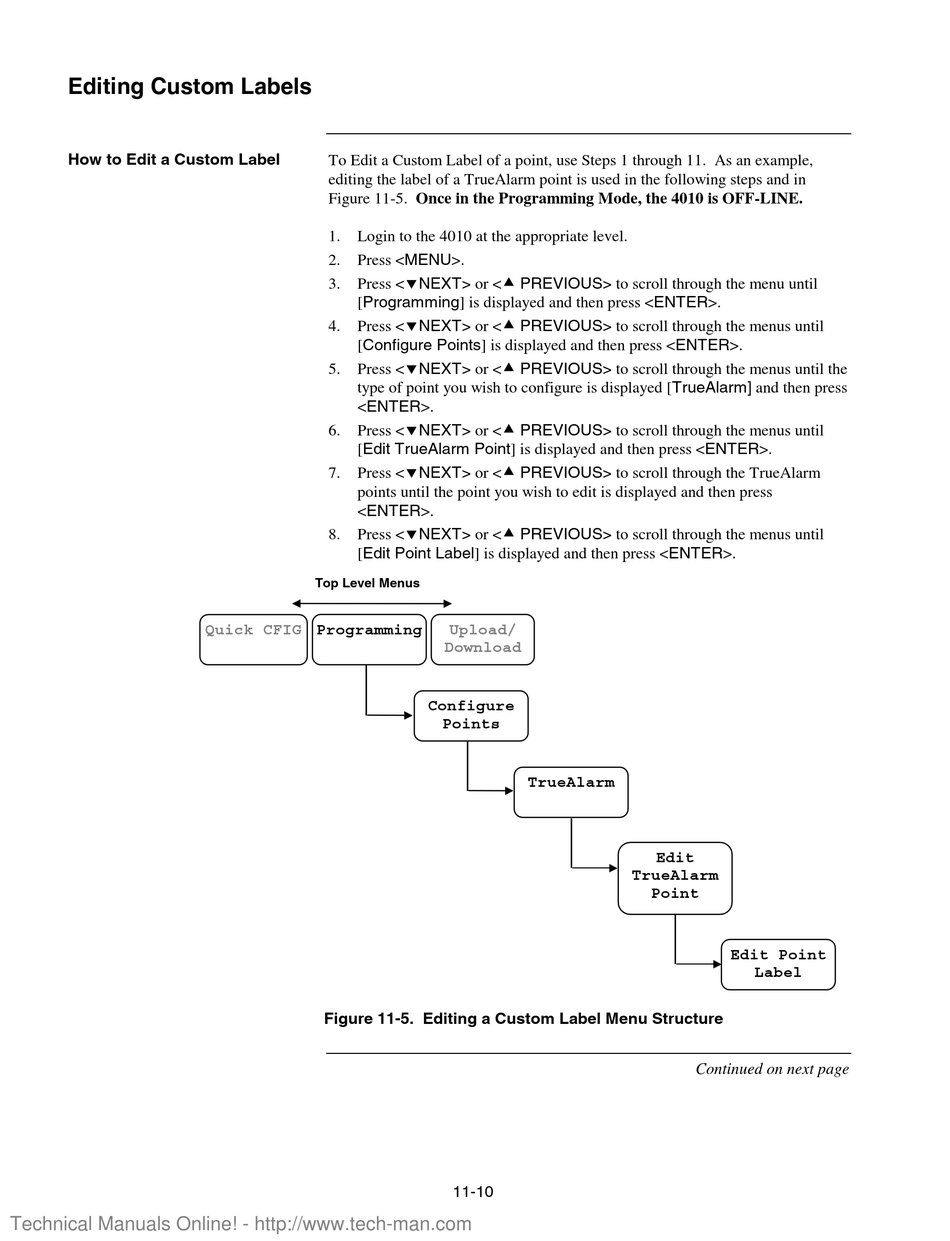

Figure 11-5. Editing a Custom Label Menu Structure
Upload/
Download
Configure
Points
TrueAlarm
11-10
Edit
TrueAlarm
Point
Edit Point
Label
Continued on next page
