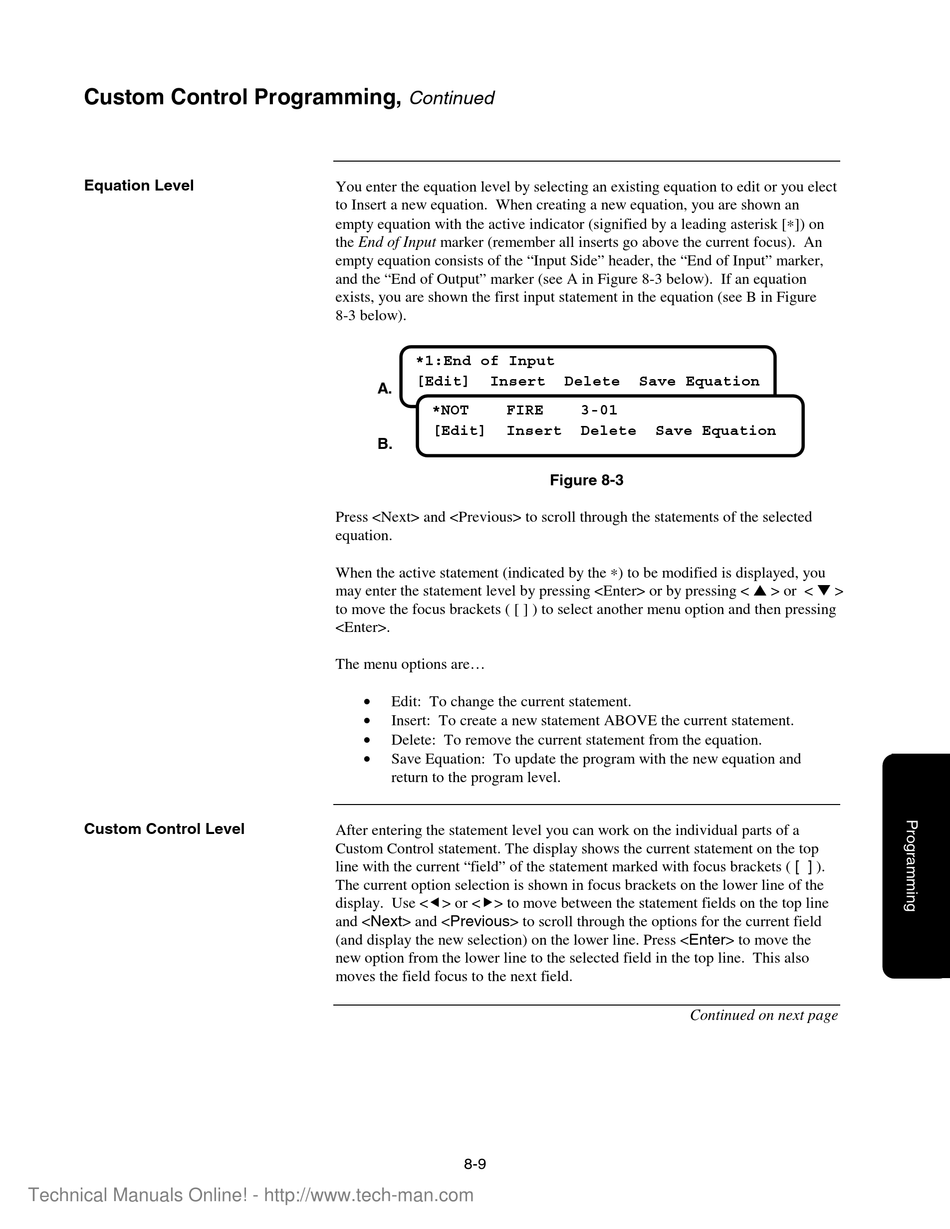

Custom Control Programming,

Equation Level

Custom Control Level

Technical Manuals Online! - http://www.tech-man.com
Continued
You enter the equation level by selecting an existing equation to edit or you elect
to Insert a new equation. When creating a new equation, you are shown an
empty equation with the active indicator (signified by a leading asterisk [∗]) on
the End of Input marker (remember all inserts go above the current focus). An
empty equation consists of the "Input Side" header, the "End of Input" marker,
and the "End of Output" marker (see A in Figure 8-3 below). If an equation
exists, you are shown the first input statement in the equation (see B in Figure
8-3 below).
*1:End of Input
[Edit] Insert
A.
*NOT FIRE
[Edit] Insert
B.
Press <Next> and <Previous> to scroll through the statements of the selected
equation.
When the active statement (indicated by the ∗) to be modified is displayed, you
may enter the statement level by pressing <Enter> or by pressing < L > or < M >
to move the focus brackets ( [ ] ) to select another menu option and then pressing
<Enter>.
The menu options are...
•
Edit: To change the current statement.
•
Insert: To create a new statement ABOVE the current statement.
•
Delete: To remove the current statement from the equation.
•
Save Equation: To update the program with the new equation and
return to the program level.
After entering the statement level you can work on the individual parts of a
Custom Control statement. The display shows the current statement on the top
line with the current "field" of the statement marked with focus brackets ( [ ] ).
The current option selection is shown in focus brackets on the lower line of the
display. Use <ì> or <ö> to move between the statement fields on the top line
and <Next> and <Previous> to scroll through the options for the current field
(and display the new selection) on the lower line. Press <Enter> to move the
new option from the lower line to the selected field in the top line. This also
moves the field focus to the next field.
8-9
Delete Save Equation
3-01
Delete Save Equation
Figure 8-3
Continued on next page
