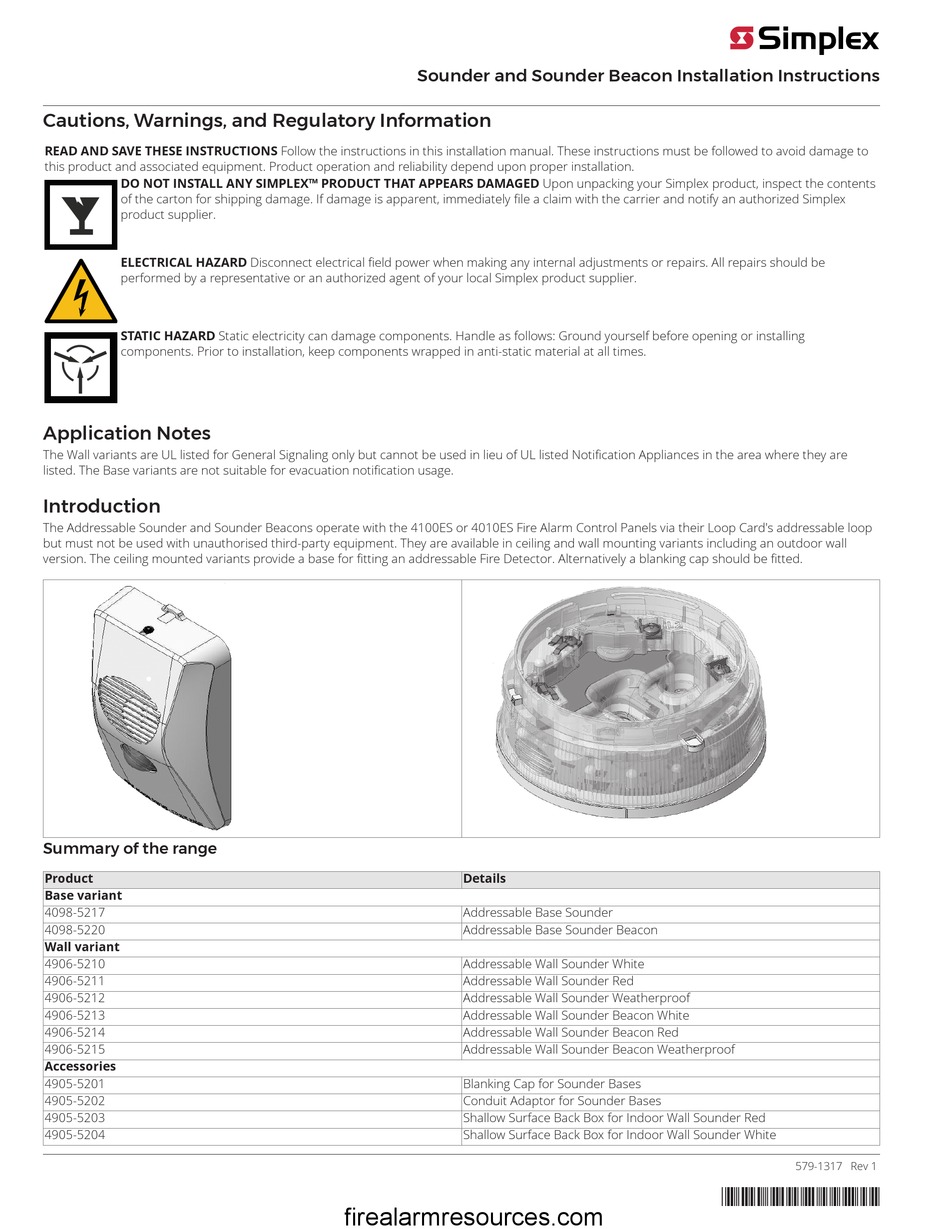

Cautions, Warnings, and Regulatory Information
READ AND SAVE THESE INSTRUCTIONS Follow the instructions in this installation manual. These instructions must be followed to avoid damage to
this product and associated equipment. Product operation and reliability depend upon proper installation.
DO NOT INSTALL ANY SIMPLEX™ PRODUCT THAT APPEARS DAMAGED Upon unpacking your Simplex product, inspect the contents
of the carton for shipping damage. If damage is apparent, immediately file a claim with the carrier and notify an authorized Simplex
product supplier.
ELECTRICAL HAZARD Disconnect electrical field power when making any internal adjustments or repairs. All repairs should be
performed by a representative or an authorized agent of your local Simplex product supplier.
STATIC HAZARD Static electricity can damage components. Handle as follows: Ground yourself before opening or installing
components. Prior to installation, keep components wrapped in anti-static material at all times.
Application Notes
The Wall variants are UL listed for General Signaling only but cannot be used in lieu of UL listed Notification Appliances in the area where they are
listed. The Base variants are not suitable for evacuation notification usage.
Introduction
The Addressable Sounder and Sounder Beacons operate with the 4100ES or 4010ES Fire Alarm Control Panels via their Loop Card's addressable loop
but must not be used with unauthorised third-party equipment. They are available in ceiling and wall mounting variants including an outdoor wall
version. The ceiling mounted variants provide a base for fitting an addressable Fire Detector. Alternatively a blanking cap should be fitted.
Summary of the range
Product
Base variant
4098-5217
4098-5220
Wall variant
4906-5210
4906-5211
4906-5212
4906-5213
4906-5214
4906-5215
Accessories
4905-5201
4905-5202
4905-5203
4905-5204
Sounder and Sounder Beacon Installation Instructions
Details
Addressable Base Sounder
Addressable Base Sounder Beacon
Addressable Wall Sounder White
Addressable Wall Sounder Red
Addressable Wall Sounder Weatherproof
Addressable Wall Sounder Beacon White
Addressable Wall Sounder Beacon Red
Addressable Wall Sounder Beacon Weatherproof
Blanking Cap for Sounder Bases
Conduit Adaptor for Sounder Bases
Shallow Surface Back Box for Indoor Wall Sounder Red
Shallow Surface Back Box for Indoor Wall Sounder White
