14.1 Introduction
The random-number generator has the following features.
•
Generates pseudorandom bytes which can be read by the CPU or used directly by the command
strobe processor (see
•
Calculates CRC16 of bytes that are written to RNDH
•
Seeded by value written to RNDL
The random-number generator is a 16-bit linear-feedback shift register (LFSR) with polynomial X
2
X
+ 1 (that is, CRC16). It uses different levels of unrolling depending on the operation it performs. The
basic version (no unrolling) is shown in
The random-number generator is turned off when ADCCON1.RCTRL = 11.
15
in_bit
+

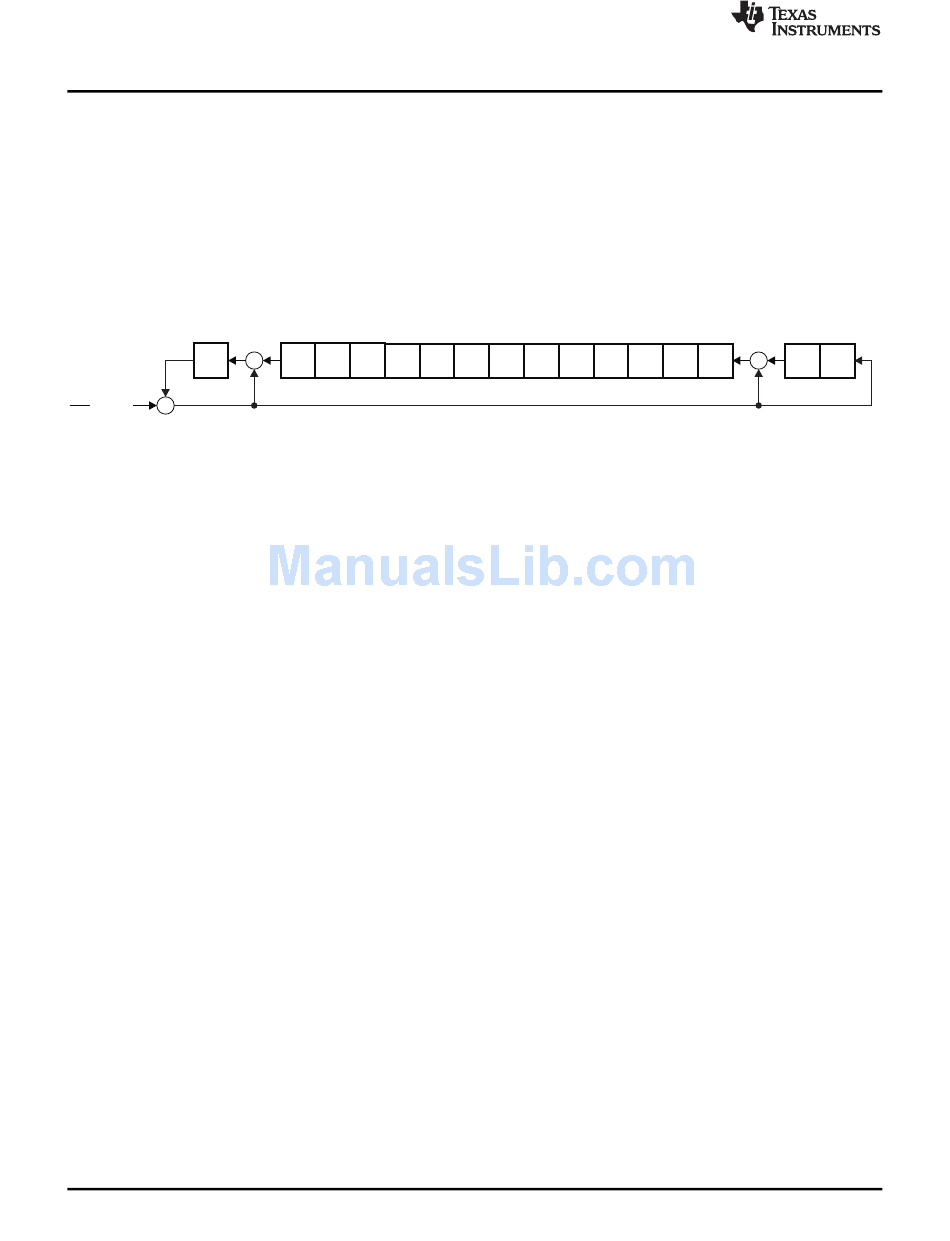

Figure 14-1. Basic Structure of the Random-Number Generator
14.2 Random-Number-Generator Operation
The operation of the random-number generator is controlled by the ADCCON1.RCTRL bits (see also
Section
14.3). The current value of the 16-bit shift register in the LFSR can be read from the RNDH and
RNDL registers.
14.2.1 Pseudorandom Sequence Generation
The default operation (ADCCON1.RCTRL is 00) is to clock the LFSR once (13× unrolling; where clocking
with 13× unrolling means performing an operation equivalent to doing 13 shifts with feedback) each time
the command strobe processor
fresh pseudorandom byte from the LSB end of the LFSR.
Another way to update the LFSR is to set ADCCON1.RCTRL to 01. This clocks the LFSR once (13×
unrolling), and the ADCCON1.RCTRL bits are automatically cleared when the operation has completed.
14.2.2 Seeding
The LFSR can be seeded by writing to the RNDL register twice. Each time the RNDL register is written, the
8 LSBs of the LFSR are copied to the 8 MSBs and the 8 LSBs are replaced with the new data byte that
was written to RNDL.
For the CC253x, when a random value is required, the LFSR should be seeded by writing RNDL with
random bits from the IF_ADC in the RF receive path. To use this seeding method, the radio must first be
powered on. The radio should be placed in the infinite RX state to avoid possible sync detect in the RX
state. The random bits from the IF_ADC are read from the least-significant bit position of the RF register
RFRND. These bits should be concatenated over time to form the bytes needed for the random-number-
generator seed. See
cannot be done while the radio is in use for normal tasks.
Note that a seed value of 0x0000 or 0x8003 always leads to an unchanged value in the LFSR after
clocking, as no values are pushed in via in_bit (see
should be used for random-number generation.
14.2.3 CRC16
The LFSR can also be used to calculate the CRC value of a sequence of bytes. Writing to the RNDH
register triggers a CRC calculation. The new byte is processed from the MSB end and an 8× unrolling is
used, so that a new byte can be written to RNDH every clock cycle.
