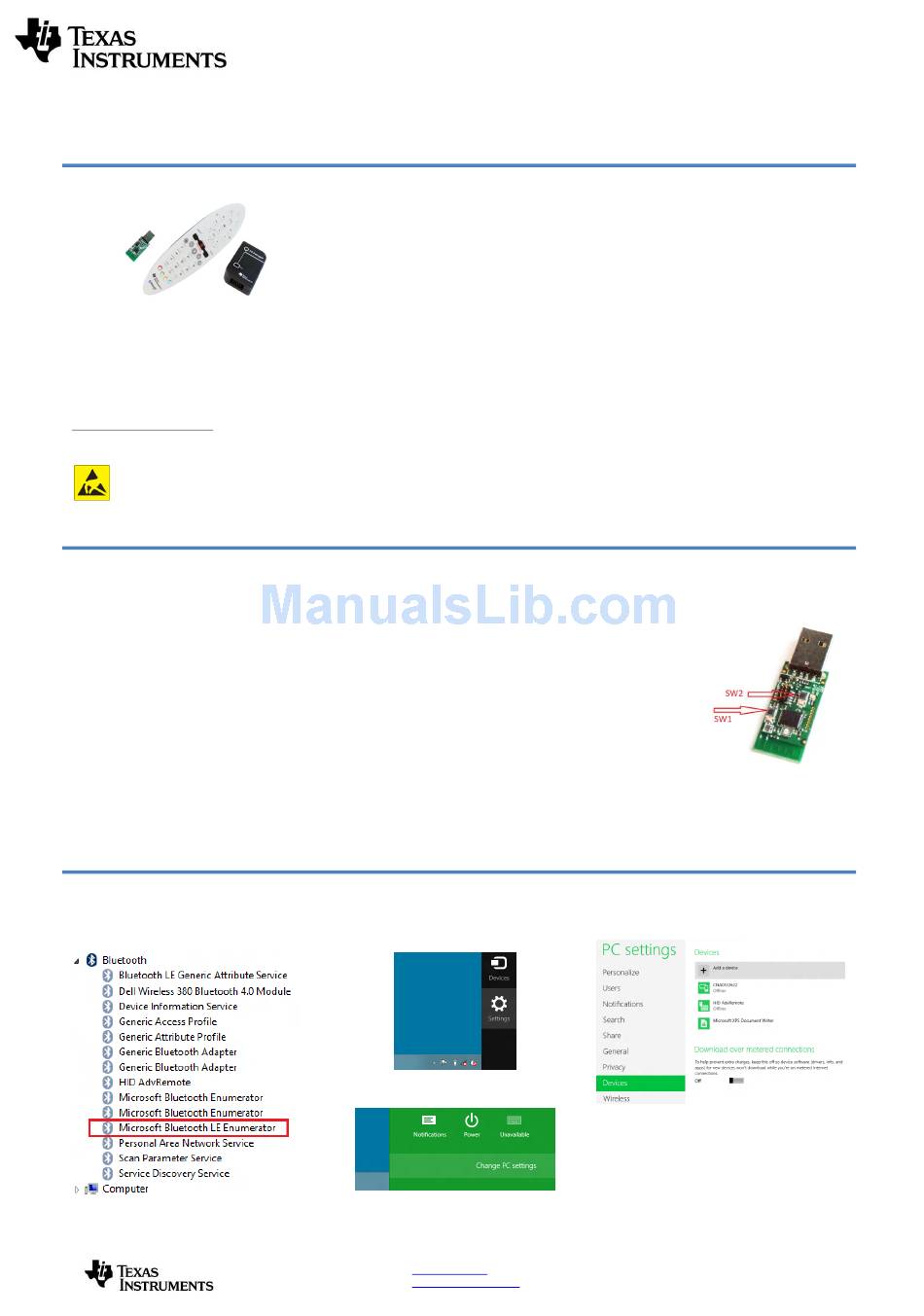

Texas Instruments CC2541 Quick Start Manual

CC2541 Advanced Remote Control Quick Start Guide
Opening the Box and Evaluating Bluetooth® low energy
Kit Contents
1 x Advanced Remote with batteries
1 x CC2540 USB Dongle
1 x CC Debugger with cables
Documentation
The RF Boards in this kit are FCC and IC certified and
tested to comply with ETSI/R&TTE over temperature
from 0 to +35°C.
FCC/IC Regulatory Compliance
FCC Part 15 Class A Compliant
IC ICES-003 Class A Compliant
Caution! The kit contains ESD sensitive
components. Handle with care to prevent
permanent damage.
Connect Using Single Mode BLE CC2540USB HID Dongle
1. Insert dongle in USB port
The dongle will be enumerated by a computer as
several USB Human Interface Device class
devices.
The dongle will translate received Bluetooth® low
energy HID Service reports and transmit them to
the computer through these virtual devices.
To remove any old bonding information,
please press the red key (lower left corner) on
the remote and SW1 on the dongle. The red
LED on the dongle will be lit, indicating that it is
idle. Pressing SW2 will start scanning for 5
seconds.
While scanning, the LED will blink red, indicating
it's scanning for a Bluetooth® low energy
peripheral which advertises
capabilities.
Connect to Windows 8 with Bluetooth® 4.0 LE (Smart Ready) hardware
1. Make sure BLE works
In Device manager, under "Bluetooth", make sure
that you see references to "Bluetooth LE".
Introduction
This document will guide you through the initial
steps required in order to run the pre programmed
Bluetooth® low energy (BLE) demo application.
You will get familiar with the hardware in the box
and how to interface the Advanced Remote with
different platforms.
1. Evaluate using USB dongle. A USB dongle
pre-programmed with firmware acting as
translator between
Interface Device) and USB HID is supplied in
the kit and works with most operating system
platforms*.
2. Evaluate using Windows 8. Windows 8
includes native support for the BLE HID
(Human Interface Device) over GATT profile.
Using a Bluetooth® Smart Ready dongle or
internal Bluetooth® Smart Ready hardware
you can easily connect the Advanced Remote
to your computer.
* Tested on Windows, OSX and Ubuntu.
2. Advertise and connect
Press any number key or consumer control key
like play or pause on the Advanced Remote to
make the device advertise.
The devices will now connect and pair without PIN
entry. The dongle LED should be lit green, and
blink red whenever data is received from the
Advanced Remote.
Long term bonding entries will be stored in both
the Advanced Remote and the USB-dongle to
speed up subsequent reconnections.
When bonded and disconnected, the dongle will
blink green and always scan for its paired remote.
HID service
2. Open PC settings
On the PC, move your mouse pointer to the
lower right hand corner and click on "Settings".
Then click on "Change PC settings".
Web sites: www.ti.com/ble
E2E Forum: www.ti.com/ble-forum
Hardware Setup
Pull down the white cover on the back of the
Advanced Remote to access the battery holder.
Insert 3xAAA (1.5V alkaline, non-rechargeable)
batteries in the Advanced Remotes battery holder.
The Advanced Remote and CC2540 USB dongle
come pre-programmed with their respective HID
over GATT profile roles.
The Advanced Remote will work out of the box
BLE HID (Human together with both the dongle and Windows 8
machines with Bluetooth 4.0 hardware.
When not bonded with a client, the Advanced
Remote will advertise for 60 seconds with low duty
cycle. If it is bonded, it will advertise for 5 seconds
with a high duty cycle to send the button press
quickly once reconnected.
When connected, the Advanced Remote will
disconnect after 60 seconds to conserve power.
Pressing a button will cause it to reconnect and
transmit that button press.
3. Manage connection and bonds
Pressing SW2 on the dongle will disconnect any
active connection between the dongle and an
Advanced Remote.
Pressing SW1 on the
dongle when
connected will erase
all long term bond
information stored on
the dongle.
Pressing SW1 button
will not affect bond
data stored on the
Advanced Remote.
3. Add Advanced Remote
Then click on "Devices" and "Add a device".
SWRU341A
November 2013
dis-
