Introduction

The TS3DDR4000-EVM is an evaluation module for TI's 12-bit, 1:2 high-speed DDR3/DDR3/DDR4
switch/multiplexer. The EVM allows for easy evaluation of the control inputs and connectivity. This EVM is
not designed for high speed signal integrity evaluation.
3.1

List of Hardware Items for Operation

The following items are required for EVM evaluation:
•

TS3DDR4000-EVM

• Power Supply

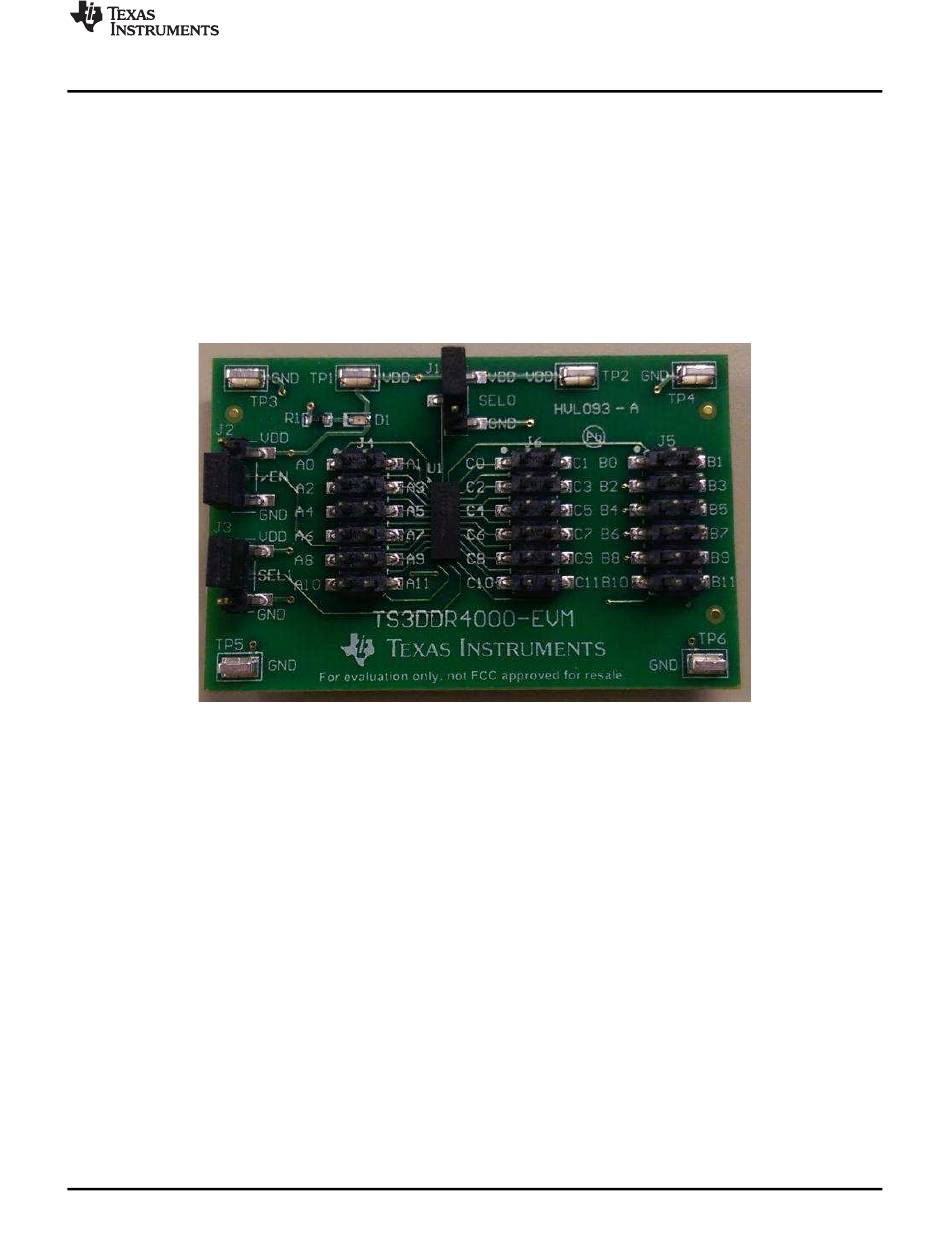

Figure 1 illustrates the TS3DDR4000-EVM board.
