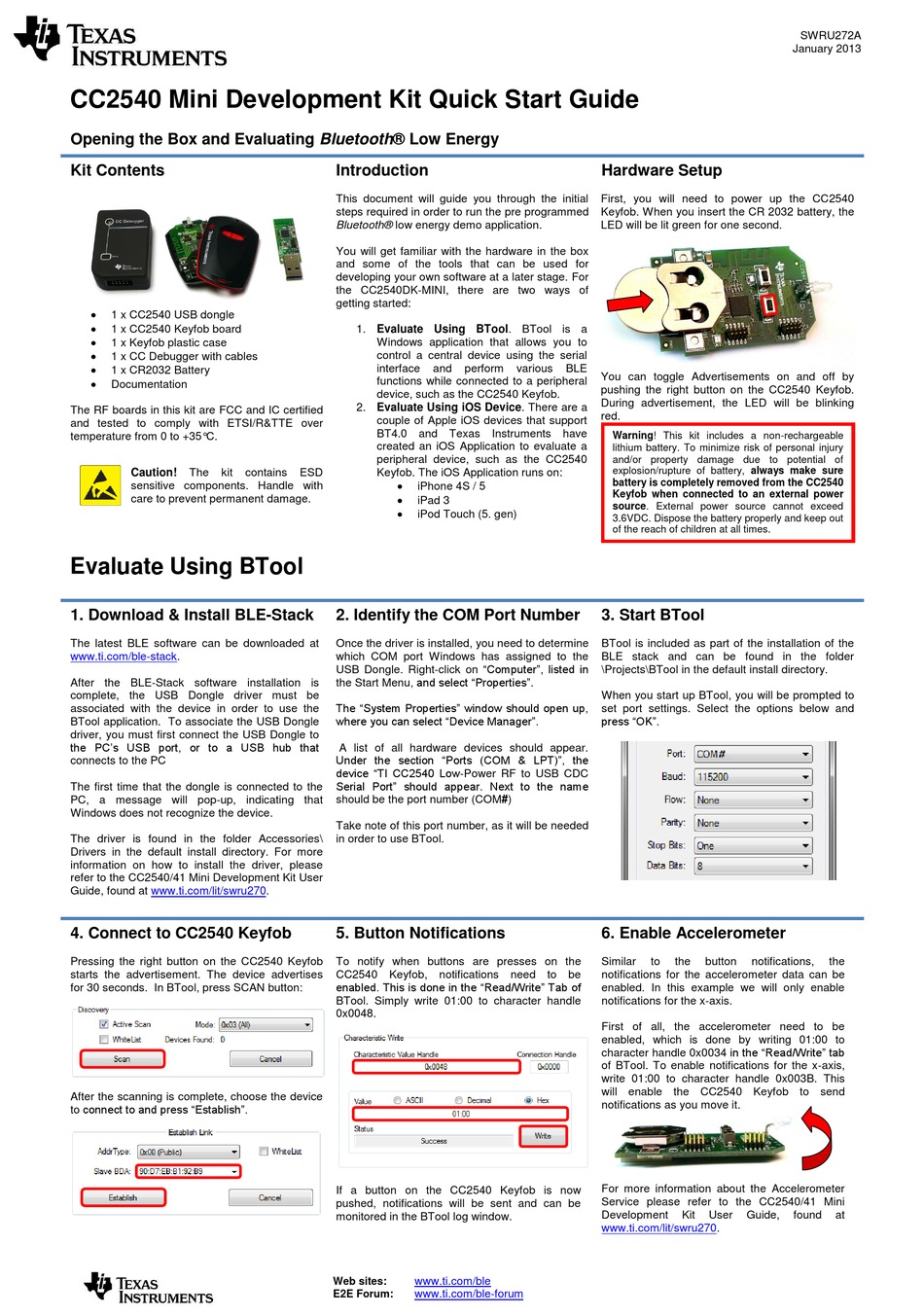

CC2540 Mini Development Kit Quick Start Guide
Opening the Box and Evaluating Bluetooth® Low Energy
Kit Contents

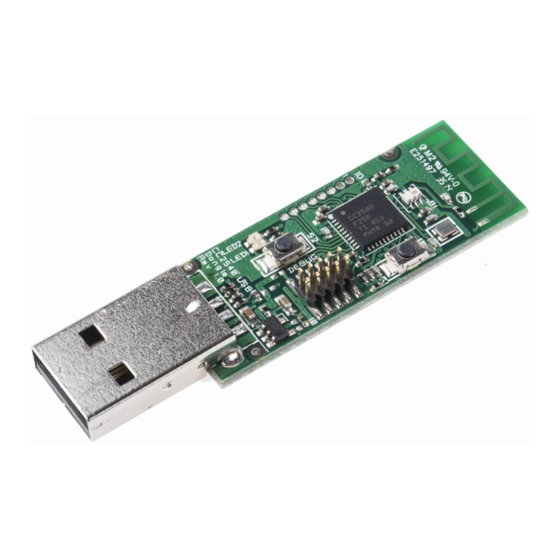

1 x CC2540 USB dongle
1 x CC2540 Keyfob board
1 x Keyfob plastic case
1 x CC Debugger with cables
1 x CR2032 Battery
Documentation
The RF boards in this kit are FCC and IC certified
and tested to comply with ETSI/R&TTE over
temperature from 0 to +35°C.
Caution!
The
kit
contains
sensitive components. Handle with
care to prevent permanent damage.
Evaluate Using BTool
1. Download & Install BLE-Stack
The latest BLE software can be downloaded at
www.ti.com/ble-stack.
After the BLE-Stack software installation is
complete, the USB Dongle driver must be
associated with the device in order to use the
BTool application. To associate the USB Dongle
driver, you must first connect the USB Dongle to
the PC's USB port, or to a USB hub that
connects to the PC
The first time that the dongle is connected to the
PC, a message will pop-up, indicating that
Windows does not recognize the device.
The driver is found in the folder Accessories\
Drivers in the default install directory. For more
information on how to install the driver, please
refer to the CC2540/41 Mini Development Kit User
Guide, found at www.ti.com/lit/swru270.
4. Connect to CC2540 Keyfob
Pressing the right button on the CC2540 Keyfob
starts the advertisement. The device advertises
for 30 seconds. In BTool, press SCAN button:
After the scanning is complete, choose the device
to connect to and press "Establish".
Introduction
This document will guide you through the initial
steps required in order to run the pre programmed
Bluetooth® low energy demo application.
You will get familiar with the hardware in the box
and some of the tools that can be used for
developing your own software at a later stage. For
the CC2540DK-MINI, there are two ways of
getting started:
1. Evaluate Using BTool. BTool is a
Windows application that allows you to
control a central device using the serial
interface
and
perform
functions while connected to a peripheral
device, such as the CC2540 Keyfob.
2. Evaluate Using iOS Device. There are a
couple of Apple iOS devices that support
BT4.0 and Texas Instruments have
created an iOS Application to evaluate a
peripheral device, such as the CC2540
ESD
Keyfob. The iOS Application runs on:
iPhone 4S / 5
iPad 3
iPod Touch (5. gen)
2. Identify the COM Port Number
Once the driver is installed, you need to determine
which COM port Windows has assigned to the
USB Dongle. Right-click on "Computer", listed in
the Start Menu, and select "Properties".
The "System Properties" window should open up,
where you can select "Device Manager".
A list of all hardware devices should appear.
Under the section "Ports (COM & LPT)", the
device "TI CC2540 Low-Power RF to USB CDC
Serial Port" should appear. Next to the name
should be the port number (COM#)
Take note of this port number, as it will be needed
in order to use BTool.
5. Button Notifications
To notify when buttons are presses on the
CC2540 Keyfob, notifications need to be
enabled. This is done in the "Read/Write" Tab of
BTool. Simply write 01:00 to character handle
0x0048.
If a button on the CC2540 Keyfob is now
pushed, notifications will be sent and can be
monitored in the BTool log window.
Web sites:
www.ti.com/ble
E2E Forum:
www.ti.com/ble-forum
Hardware Setup
First, you will need to power up the CC2540
Keyfob. When you insert the CR 2032 battery, the
LED will be lit green for one second.
various
BLE
You can toggle Advertisements on and off by
pushing the right button on the CC2540 Keyfob.
During advertisement, the LED will be blinking
red.
Warning! This kit includes a non-rechargeable
lithium battery. To minimize risk of personal injury
and/or property damage due to potential of
explosion/rupture of battery, always make sure
battery is completely removed from the CC2540
Keyfob when connected to an external power
source. External power source cannot exceed
3.6VDC. Dispose the battery properly and keep out
of the reach of children at all times.
3. Start BTool
BTool is included as part of the installation of the
BLE stack and can be found in the folder
\Projects\BTool in the default install directory.
When you start up BTool, you will be prompted to
set port settings. Select the options below and
press "OK".
6. Enable Accelerometer
Similar
to
the
notifications for the accelerometer data can be
enabled. In this example we will only enable
notifications for the x-axis.
First of all, the accelerometer need to be
enabled, which is done by writing 01:00 to
character handle 0x0034 in the "Read/Write" tab
of BTool. To enable notifications for the x-axis,
write 01:00 to character handle 0x003B. This
will enable the CC2540 Keyfob to send
notifications as you move it.
For more information about the Accelerometer
Service please refer to the CC2540/41 Mini
Development
Kit
www.ti.com/lit/swru270.
SWRU272A
January 2013
button
notifications,
the
User
Guide,
found
at
