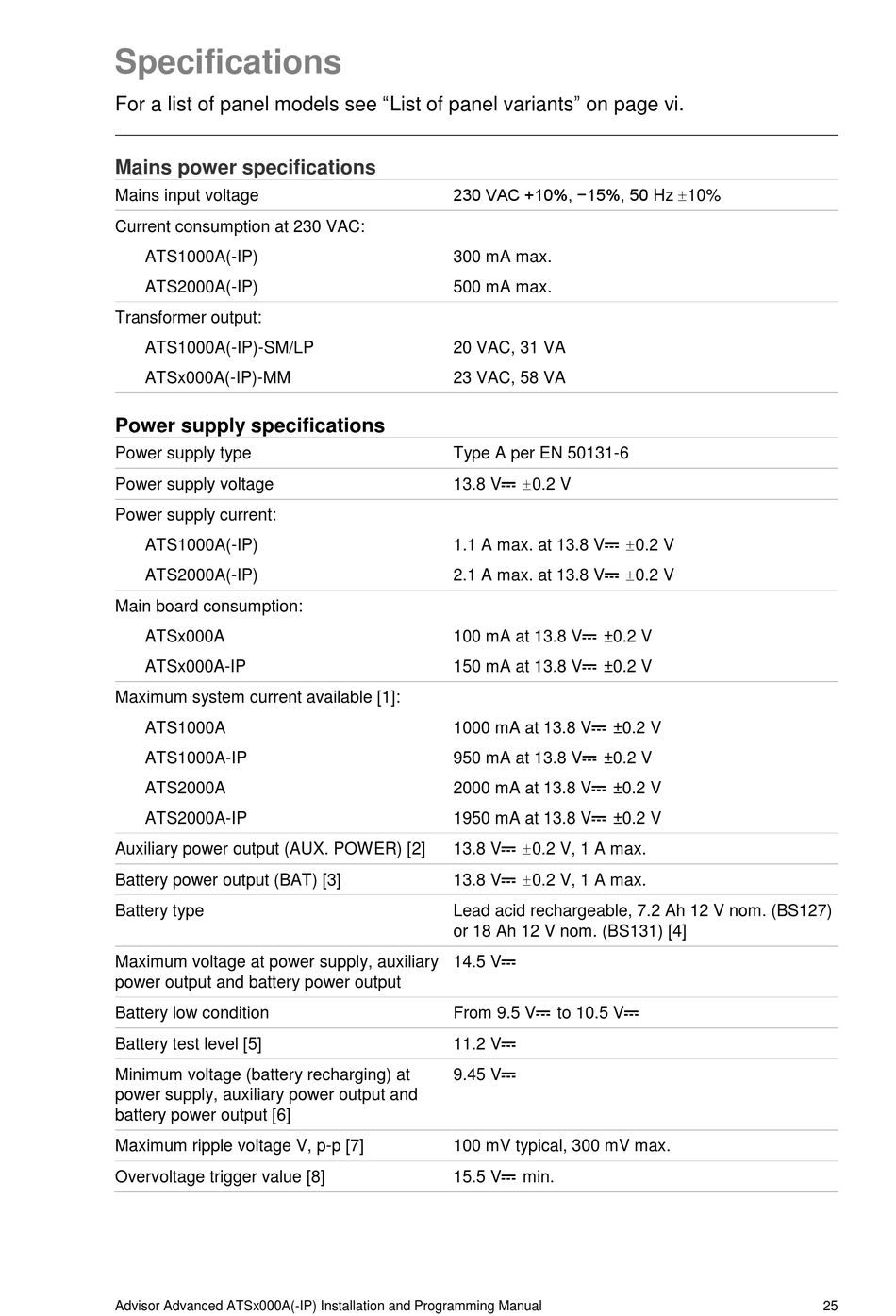

Specifications
For a list of panel models see "List of panel variants" on page vi.
Mains power specifications
Mains input voltage
Current consumption at 230 VAC:
ATS1000A(-IP)
ATS2000A(-IP)
Transformer output:
ATS1000A(-IP)-SM/LP
ATSx000A(-IP)-MM
Power supply specifications
Power supply type
Power supply voltage
Power supply current:
ATS1000A(-IP)
ATS2000A(-IP)
Main board consumption:
ATSx000A
ATSx000A-IP
Maximum system current available [1]:
ATS1000A
ATS1000A-IP
ATS2000A
ATS2000A-IP
Auxiliary power output (AUX. POWER) [2]
Battery power output (BAT) [3]
Battery type
Maximum voltage at power supply, auxiliary
power output and battery power output
Battery low condition
Battery test level [5]
Minimum voltage (battery recharging) at
power supply, auxiliary power output and
battery power output [6]
Maximum ripple voltage V, p-p [7]
Overvoltage trigger value [8]
Advisor Advanced ATSx000A(-IP) Installation and Programming Manual
230 VAC +10%, −15%, 50 Hz 10%
300 mA max.
500 mA max.
20 VAC, 31 VA
23 VAC, 58 VA
Type A per EN 50131-6
0.2 V
13.8 V
1.1 A max. at 13.8 V
2.1 A max. at 13.8 V
100 mA at 13.8 V
±0.2 V
150 mA at 13.8 V
±0.2 V
1000 mA at 13.8 V
±0.2 V
950 mA at 13.8 V
±0.2 V
2000 mA at 13.8 V
±0.2 V
1950 mA at 13.8 V
±0.2 V
0.2 V, 1 A max.
13.8 V
0.2 V, 1 A max.
13.8 V
Lead acid rechargeable, 7.2 Ah 12 V nom. (BS127)
or 18 Ah 12 V nom. (BS131) [4]
14.5 V
From 9.5 V
to 10.5 V
11.2 V
9.45 V
100 mV typical, 300 mV max.
15.5 V
min.
0.2 V
0.2 V
25
