Advisor Advanced layout

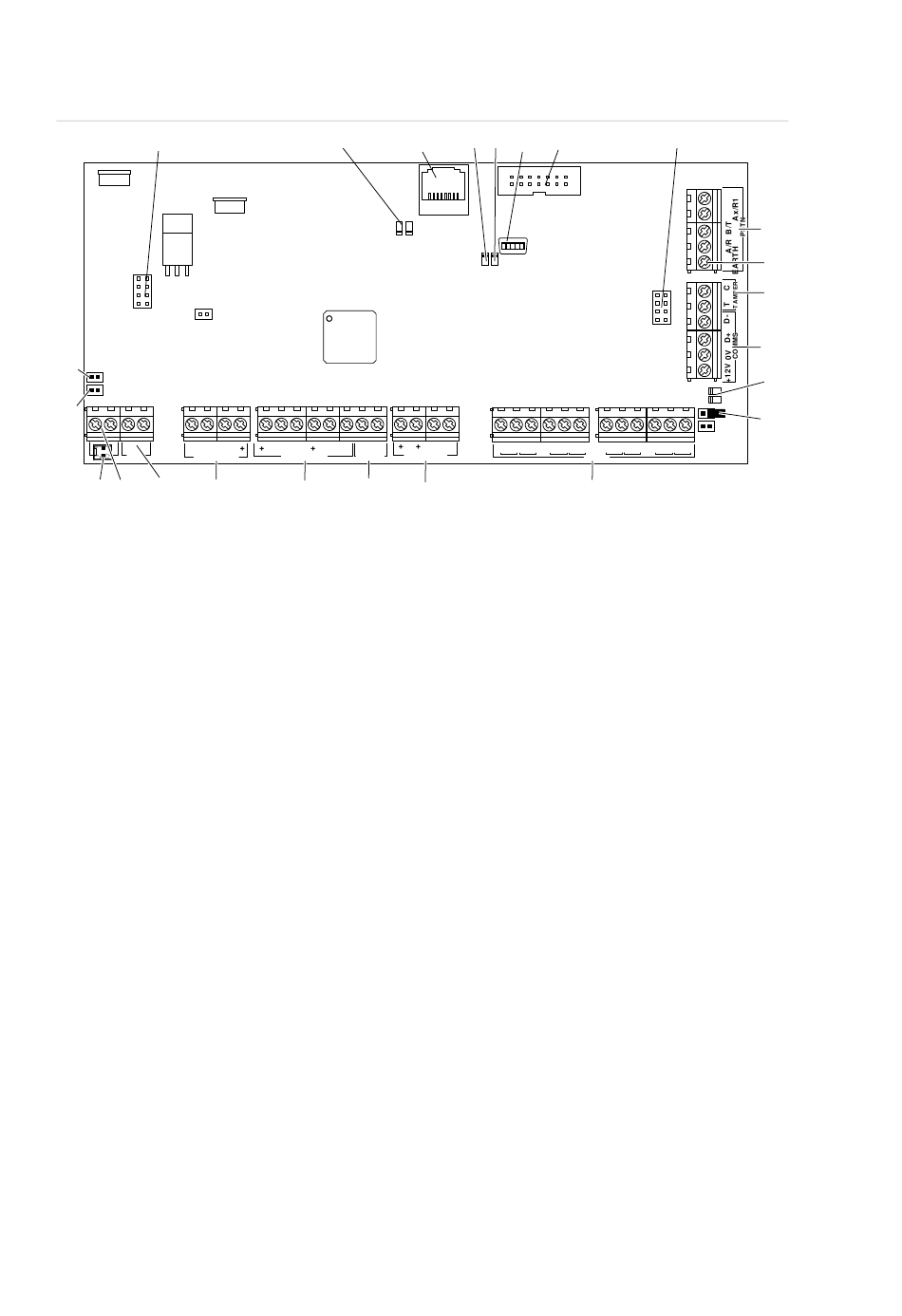

Figure 7: Advisor Advanced ATSx000A(-IP) PCB layout
(1)
LK2
CON12
(1 ) 6
T2
T1
(1 ) 8
~ ~
-
+
S3 S4 S5
AC
BATT
LC-OUTPUTS
(
20
)
(21)
(22)
(23)
(1) Interface to output expander
(2) IP communication LED (ATS-IP only)
(3) Ethernet RJ-45 connector (ATS-IP only)
(4) USB fault LED
(5) USB power LED
(7) USB connector (mini-B type)
(8) MI-bus connector for MI devices
(9) Interface to input expander
(12) PSTN line connection and panel earth
terminal
(13) Panel earth terminal
(14) External tamper switch
(15) RS-485 system databus connections
(16) T2: Device firmware upgrade mode
(DFU)
4
( ) 2
( ) 3
IP
-
S1 C
S2 C
T
C
AUX POWER
HC-OUTPUTS
SIR TMP
(24)
(25)
(26)
Advisor Advanced ATSx000A(-IP) Installation and Programming Manual
( ) 4
( ) 5
( ) 7
(8)
MI
IP
USB
-
1
C
2
3
C
4
5
C
INPUTS
(27)
(17) RS-485 system databus communication
LEDs
(18) T1: Restores the codes of master users
(installer and supervisor)
(19) System databus termination jumper
(20) AC power supply connector
(ATS1000A-SM only)
(21) AC power supply terminal
(22) Battery connection
(23) Low current (OC) outputs
(24) High current outputs
(25) Siren tamper switch
(26) 12 VDC auxiliary power output
(27) Zone inputs
