7.17.5
T ool Operation - Teaching
1 1 9 B
Activate each axis manually by the tool operation, and register the positioning addresses where the axes
stopped as the point data.
Note:
To perform the teaching operation, the equivalent axes should be in the state that the servo is locked
(servo ON).

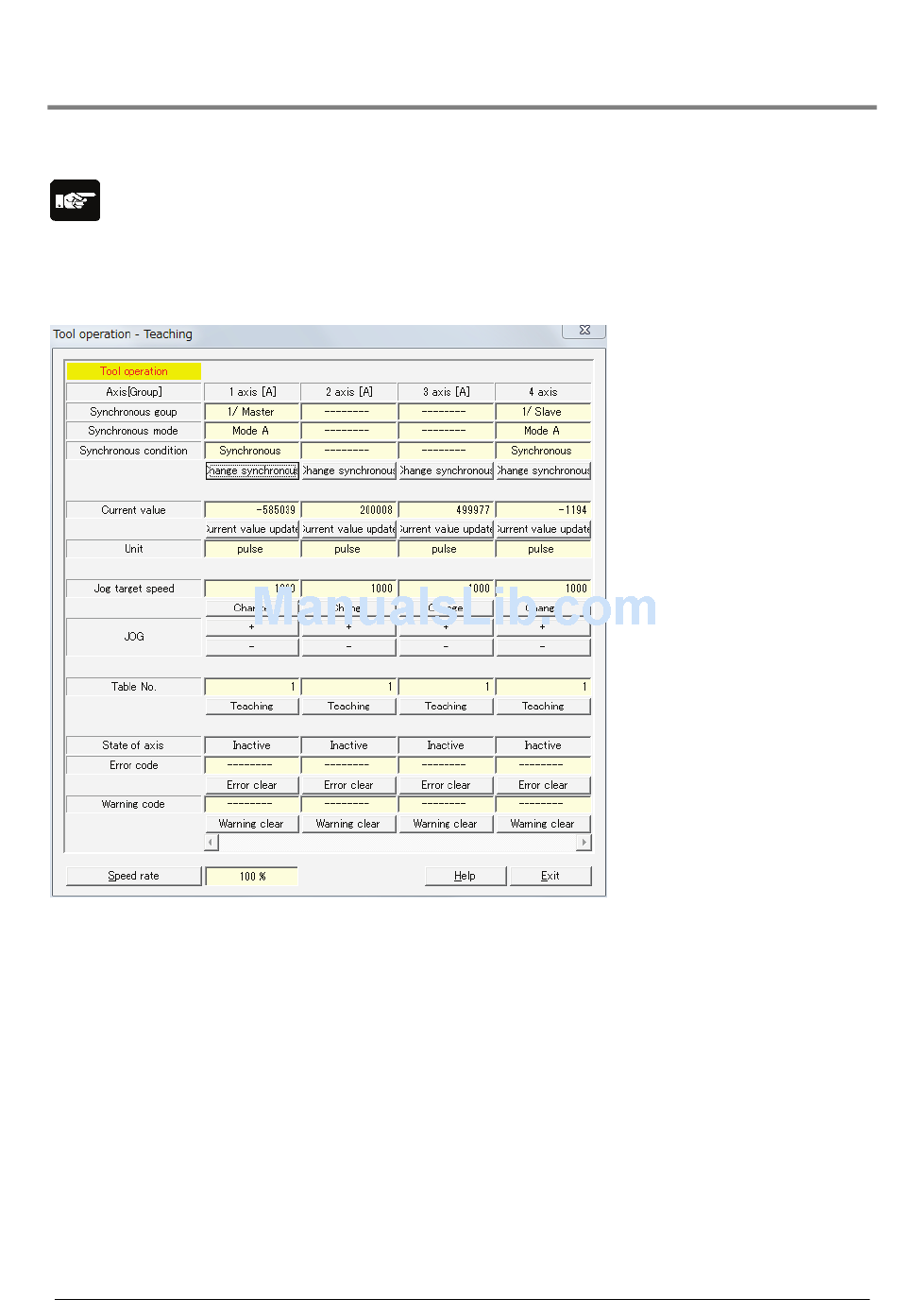

1. Click [Teaching] in the tool operation dialog. The following dialog is shown.
7-47
