Setting
The parameters necessary for the setting of the pulser operation are specified by the Configurator PM.
The unit is set to pulse.
Item
Operation setting code
Pulser operation ratio numerator
Pulser operation ratio denominator
Pulser operation method
Pulser operation maximum speed

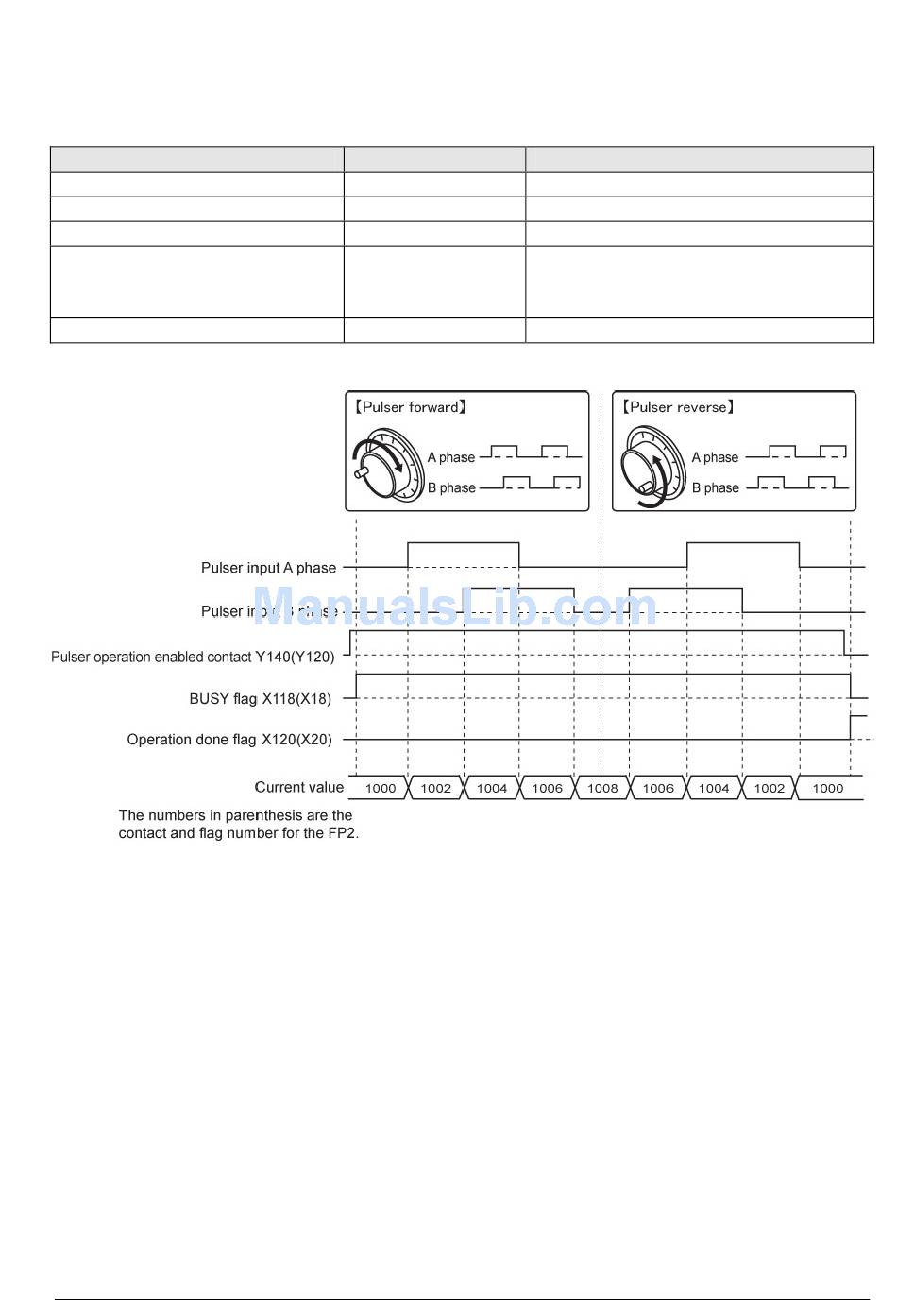

Operation diagram
Operations of each contact
• The BUSY flag (FPΣ: X118, FP2: X18) indicating the state that a motor is running turns on when a
pulser operation enabled contact turned on, and it turns off when the pulser operation enabled contact
turned off.
• The operation done flag (FPΣ: X120, FP2: X20) indicating the state that an operation completed turns
on when an pulser operation enabled contact turned off, and it will be held until any operation among
the position control, JOG operation, Home return and pulser operation starts.
Setting example
0: Pulser 1
2
1
2: Speed limit
(Round down)
500
Allowable range
0: Pulser 1, 1: Pulser 2, 2: Pulser 3
1 to 32,767
1 to 32,767
0:Standard operation , 1: Speed limit
(Pulse retention), 2: Speed limit (Round
down)
Pulse: 1 to 32,767,000 pps
11-3
