17.6 Details of Each Axis Setting Area in Shared Memory
17.6.1 Configuration of Each Axis Setting Area

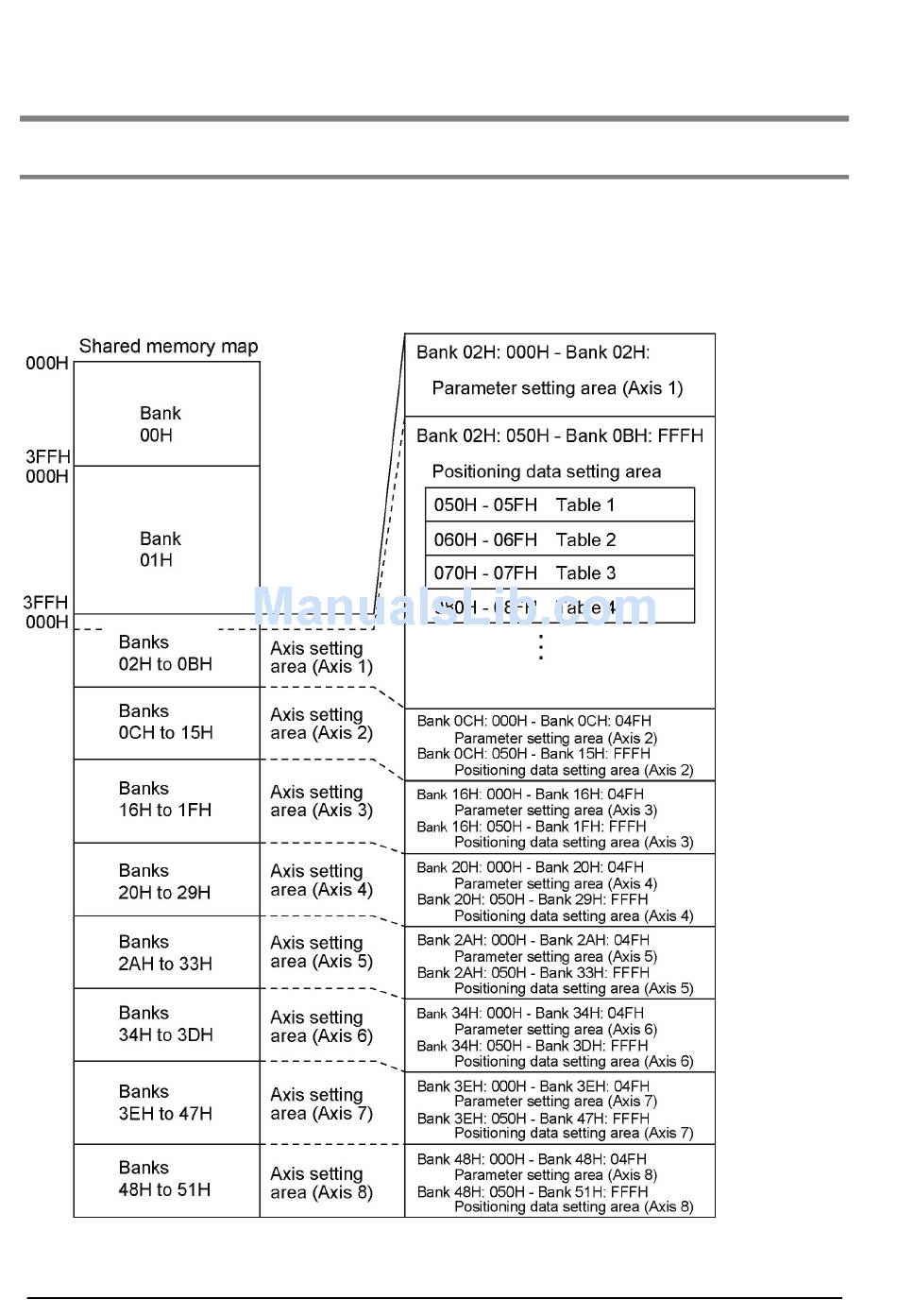

The shared memory is composed of banks. The each axis setting area is allocated in the banks 02H to
51H in the shared memory. The each axis setting area is used to store positioning parameters and
positioning data, and the setting values are allocated to every address from the axes 1 to 8. The
positioning setting area of each axis is composed of 600 tables of the standard area and 25 tables of the
extended area.
