17.5 Details of Each Axis Information Area in Shared
Memory
17.5.1 Configuration of Each Axis Information Area

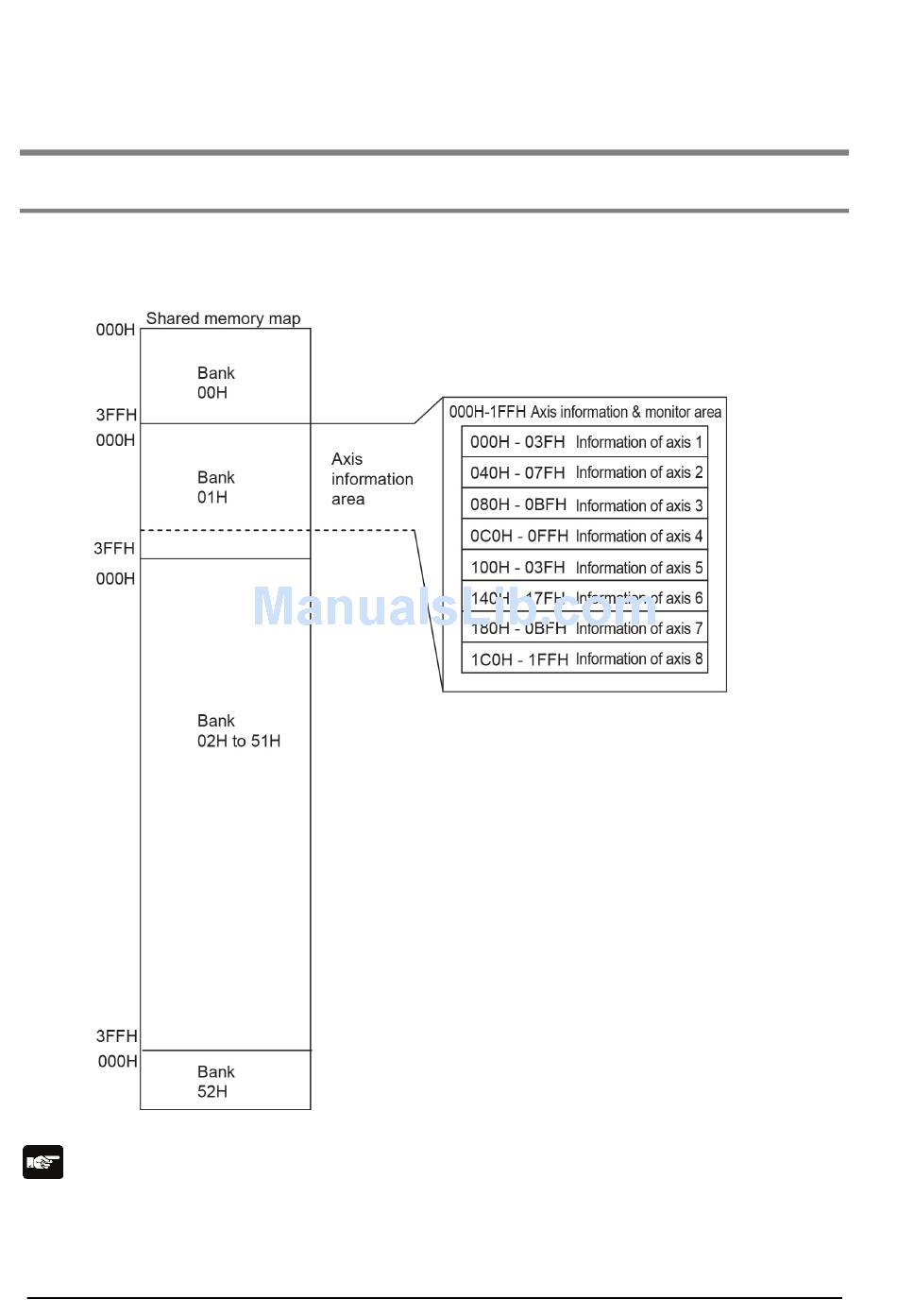

The shared memory is composed of banks. The each axis information area is allocated in the bank 01H
in the shared memory. Also the information on the axes 1 to 8 is allocated for each address in this area.
Note: Firstly confirm that the link establishment annunciation flag is on when reading the axis
information area using the ladder program.
