Axis information +
Parameter setting data
Axis information +
Parameter setting data +
Positioning setting data
Positioning setting data range
All
Table number range
OK
Cancel

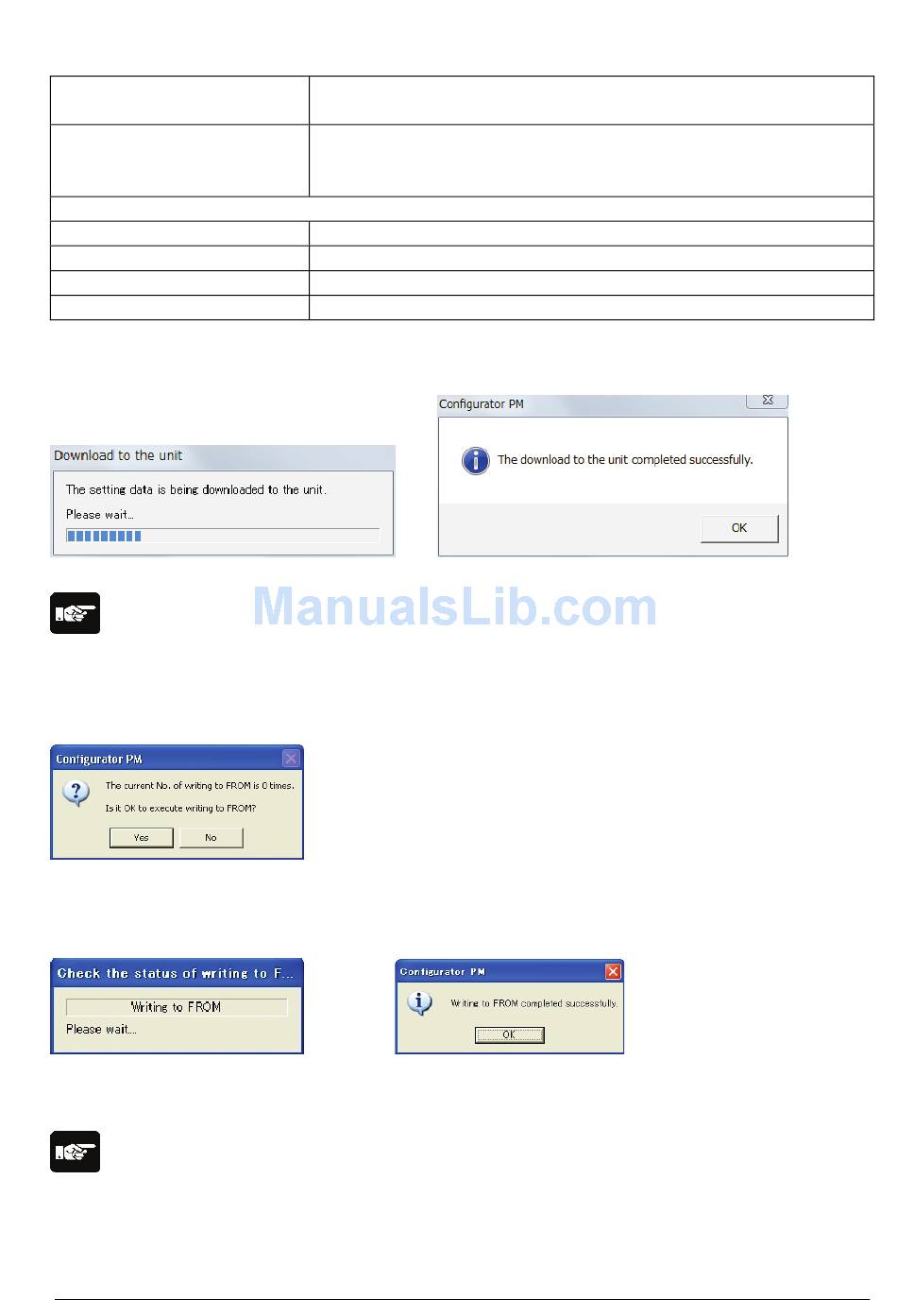

3. Click [OK] to start the download to the positioning unit. The time required for the download
depends on the range of the positioning setting data.
Note:
To execute the download, previously determine the target positioning unit RTEX by the communication
settings and selecting the slot number.
4. Once the download completes, the following dialog is shown.
Clicking [Yes] indicates the following dialog and save the setting data in the FROM (Flash Memory)
within the positioning unit RTEX. The saved setting data is automatically read when the power supply of
the PLC turns on.
Click [No] not to write the setting data to the FROM. The downloaded data is erased when the power
supply of the PLC turns off.
Note:
Writing to FROM is restricted up to 10000 times. The current number of write can be monitored with the
data monitor.
Select this to download axis information and parameter only.
Select this to download all setting data. The range of the positioning
data to download can be specified.
Download all setting data.
Download the positioning data in the specified range.
Start downloading with the selected settings.
Stop downloading.
⇒
⇒
