7.15
D ata Monitor
4 8 B
The internal data of the positioning unit RTEX can be monitored.
Make the connection between a PC and PLC, and configure the settings. Then, select [Online] →

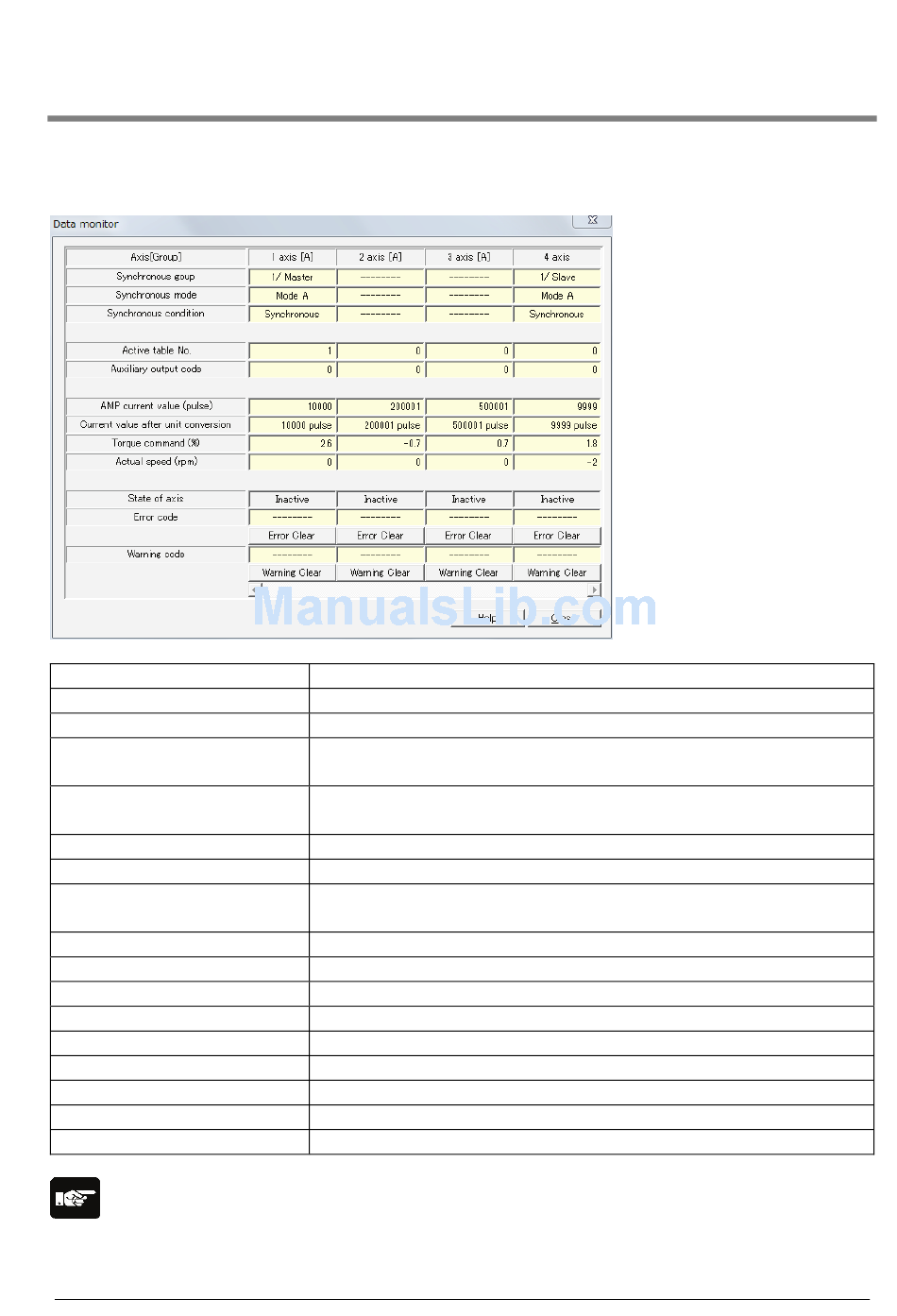

[Data Monitor] in the menu bar. The following dialog is shown.
Axis [Group]
Synchronous group
Synchronous mode
Synchronous condition
Active table number
Auxiliary output code
AMP current value(pulse)
Current value after unit
conversion
Torque command (%)
Actual speed (rpm)
State of axis
Error code
Error clear
Warning code
Warning clear
Help
Close
Note:
If an recoverable error occurred in the positioning unit RTEX, click [Error Clear] to clear the error.
If a warning occurred in the positioning unit RTEX, click [Warning Clear] to clear the warning.
The axis No. and group names to be monitored.
Displays the current synchronous group.
Displays the current synchronous mode.
Displays the current synchronous state (synchronous or
asynchronous).
The table number that the positioning data is being executed or has
completed.
Auxiliary output code
Monitor the value of feedback pulses.
Monitor the feedback value of the AMP after the unit conversion.
Monitor the torque command value of the AMP
Monitor the actual speed (rpm) of the AMP.
The operating states of axes or error and warning occurrences.
The latest error code when an error occurred.
Clear the error by clicking this button, when an error occurred.
Indicate the latest warning code when a warning occurs.
Clear the warning by clicking this button, when a warning occurred.
Indicate the help regarding this function.
Close this dialog.
7-37
