7.14.3
W riting Settings to FROM
1 1 4 B
Save the setting data written in the positioning unit RTEX in the FROM (Flash Memory) within the
positioning unit RTEX. The saved setting data is automatically read when the power supply of the unit
turns on.

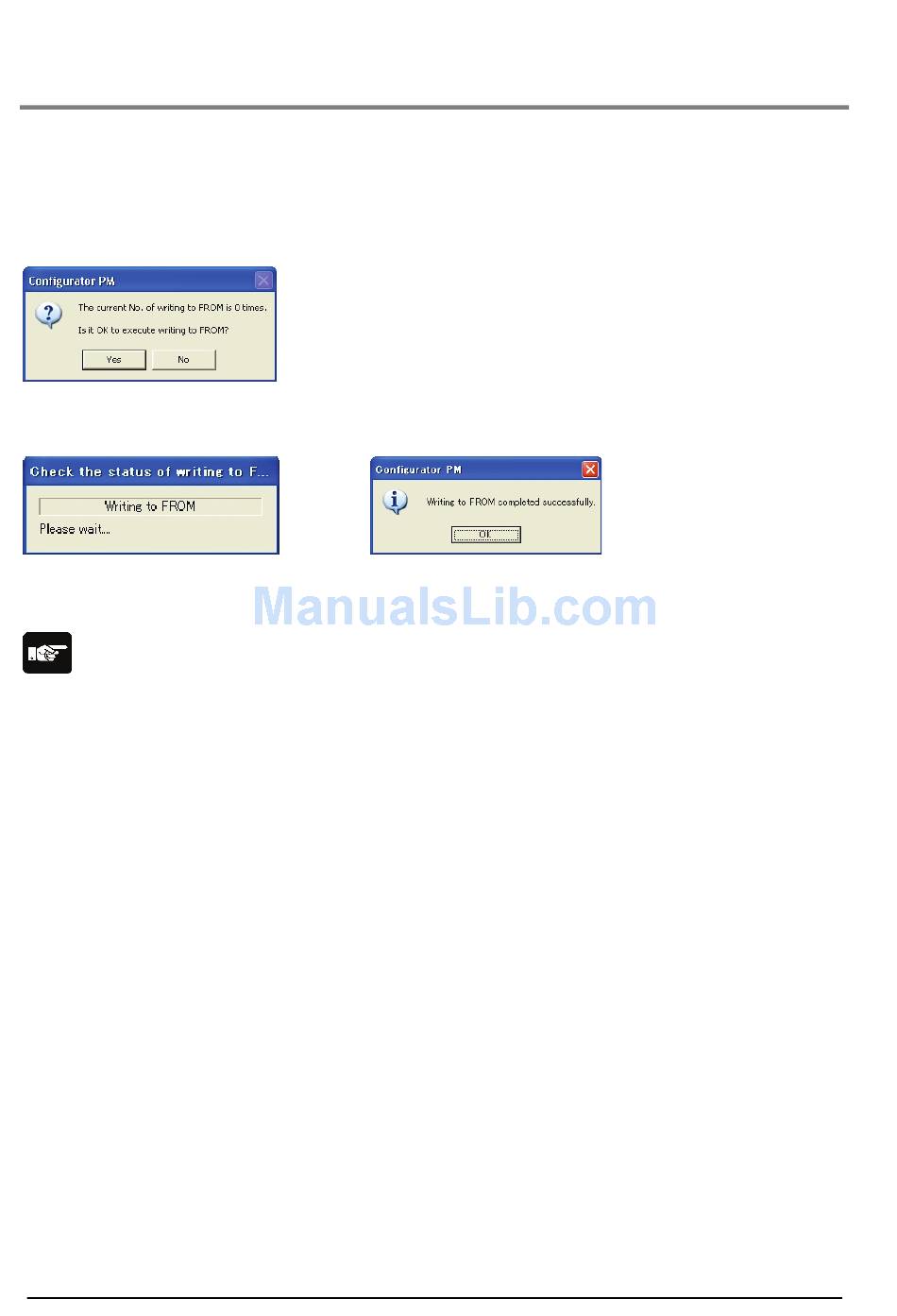

Make the connection between a PC and PLC, and configure the settings. Then, select [Tool] →
[Write to FROM] in the menu bar. The following dialog is shown.
Clicking [Yes] indicates the following dialog and save the setting data in the FROM (Flash Memory) in
the unit. The saved setting data is automatically read when the power supply of the PLC turns on.
Click [No] not to write the setting data to the FROM. The downloaded data is erased when the power
supply of the PLC turns off.
Note:
Writing to FROM is restricted up to 10000 times. The current number of write can be monitored with the
data monitor.
7-36
⇒
