5.1.5 P rocedure 4: Checking Input Signals
9 2 B

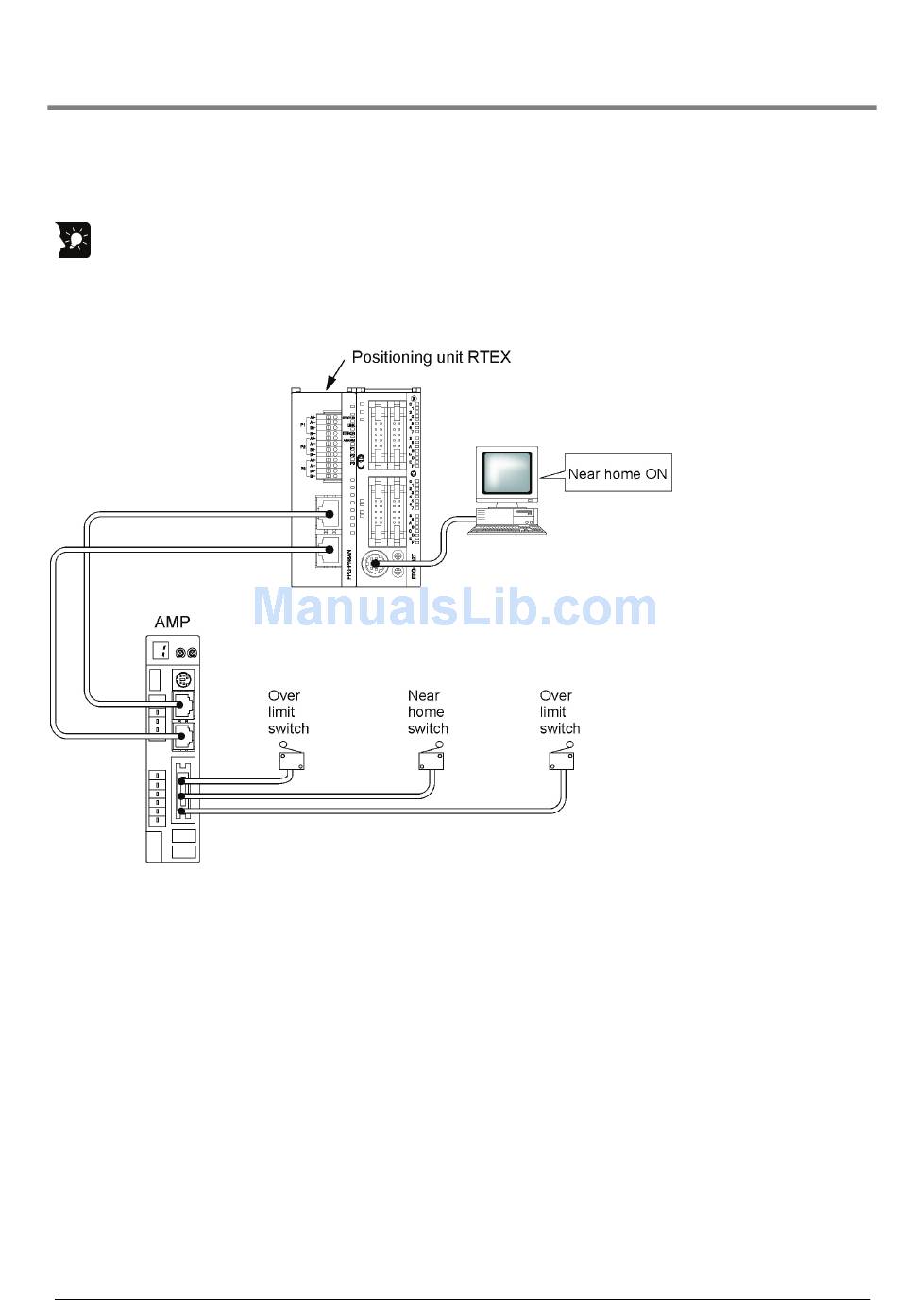

Check the input of the over limit switch for the protection circuit connected to the AMP and the input of
the near home (DOG) switch. Confirm whether the input of the signals is properly loaded into the
positioning unit RTEX or not, with operating each switch forcibly. The statuses of the input of switches
can be confirmed on the status indication display of the Configurator PM.
Key Point:
If the operating direction of the motor is opposite to the position of the limits (+) and (-) after the
installation of the over limit switch, the connection of the limits (+) and (-) can be set to "Reverse
connection" in the parameter setting of the Configurator PM.
5-5
