7. Register the user information.

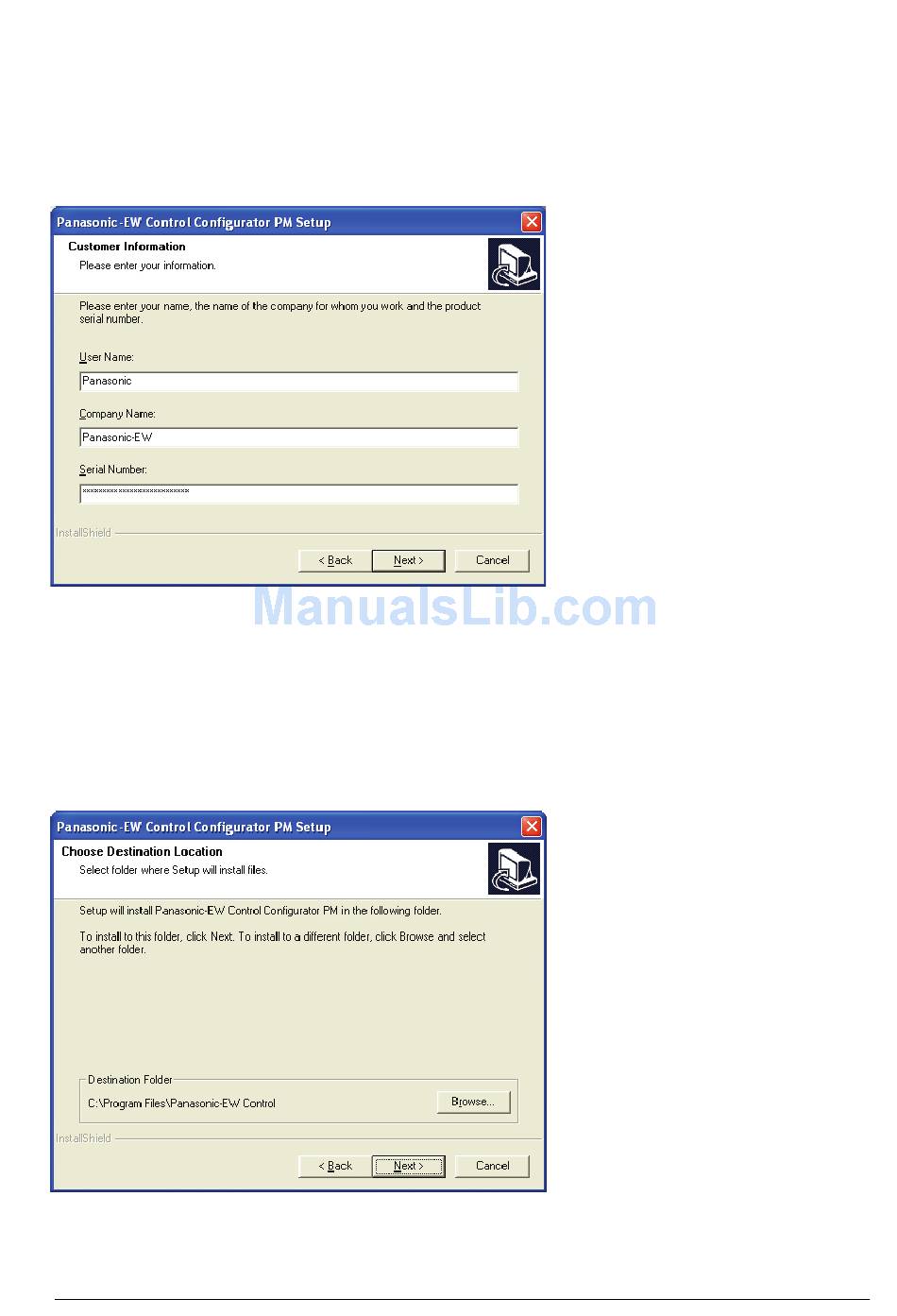

A user information dialog box is displayed. Fill in the [User Name], [Company Name] and [Serial
Number] items, and click on the [Next] button.
The serial number is noted on the user card included in the Configurator PM package. Make sure it is
entered correctly.
The contents entered here can be confirmed under "Version Information" on the splash screen, and in
the Help function, when the Configurator PM is booted.
8. Select the installation destination.
A dialog box is displayed where the folder to which the Configurator PM is to be installed can be
confirmed. To install the program in the displayed folder, click on the [Next] button.
The standard destination is "C:\Progam Files\Panasonic-ID SUNX Control".
To install the program in a different folder, click on the [Browse] button and specify a folder.
7-7
