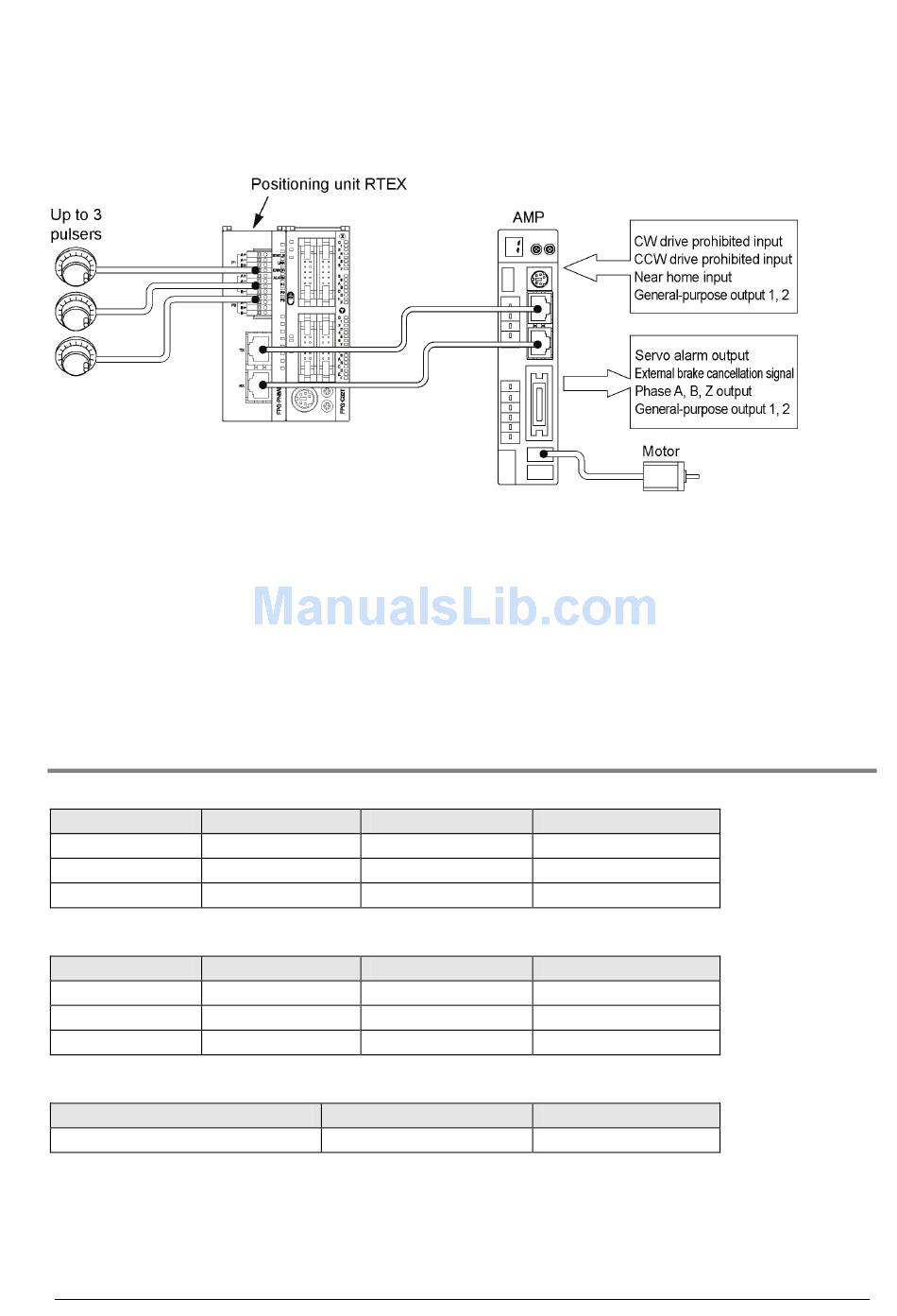

I/O required for the control is aggregated in the AMP
As the limit input and near home input is connected to the AMP and given to the positioning unit RTEX
through the network, the wiring can be simplified.
Remote I/O of 2-input and 2-output for one AMP
The 2-point general purpose input and output (transistors) can be connected to the AMP, and they can
be programmed by the X contact and Y contact of the positioning unit RTEX. The input and output
neighboring the AMP can be used as the remote I/O.
Supports the manual pulser
The maximum of three manual pulsers can be connected. It is possible to change the axes
corresponding to each pulser by the setting of the positioning unit RTEX.
1.1.2 Unit Types
FPΣ Positioning Unit RTEX
Type
2-axis type 2-axis control
4-axis type 4-axis control
8-axis type 8-axis control
FP2 Positioning Unit RTEX
Type
2-axis type 2-axis control
4-axis type 4-axis control
8-axis type 8-axis control
Setting software
Name
Control Configurator PM
Function Part number
FPG-PN2AN
FPG-PN4AN
FPG-PN8AN
Function Part number
FP2-PN2AN
FP2-PN4AN
FP2-PN8AN
Specifications
English
Product number
AFPG43610
AFPG43620
AFPG43630
Product number
AFP243610
AFP243620
AFP243630
Product number
AFPS66510
1-3
