7.17.4
T ool Operation – JOG Operation
1 1 8 B
Each axis can be operated manually using the tool operation.
Note:
To perform the JOG operation, the equivalent axes should be in the state that the servo is locked (servo
ON).

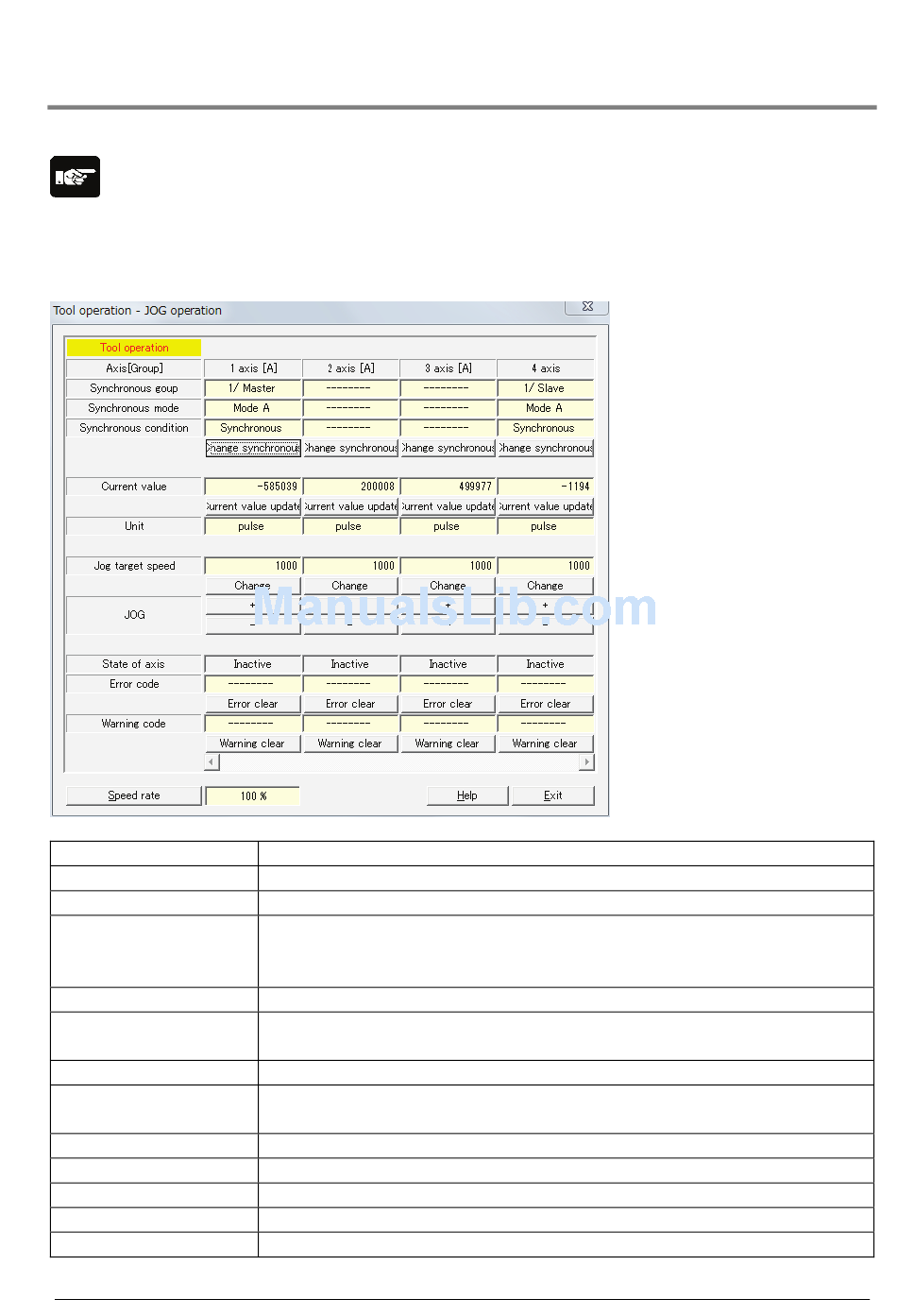

1. Click [JOG operation] in the tool operation dialog. The following dialog is shown.
Axis [Group]
Synchronous group
Synchronous mode
Synchronous
condition
Current value
Current value update
Unit
JOG target speed
JOG [+]
JOG [-]
State of axis]
Error code
Error clear
The axis numbers and group names to be monitored.
Displays the current synchronous group.
Displays the current synchronous mode.
Displays the current synchronous state (synchronous or asynchronous).
Click [Change synchronous] to display the dialog for changing the
synchronous setting.
Monitor the feedback values after the unit system conversion for each axis.
Click [Current value update] to display the dialog for inputting value to
change the preset value.
The unit of position for each axis specified in the parameter settings.
Monitor and display the target speed in the JOG operation.
Click [Change] to change the target speed for the JOG operation.
Click [+] to perform the forward rotation.
Click [-] to perform the reverse rotation.
The operating states of axes or error and warning occurrences.
The latest error code when an error occurred.
Clear the error by clicking this button, when an error occurred.
7-45
