5.1.2 P rocedure 2: Axis Numbers and Unit Numbers of AMP
8 9 B

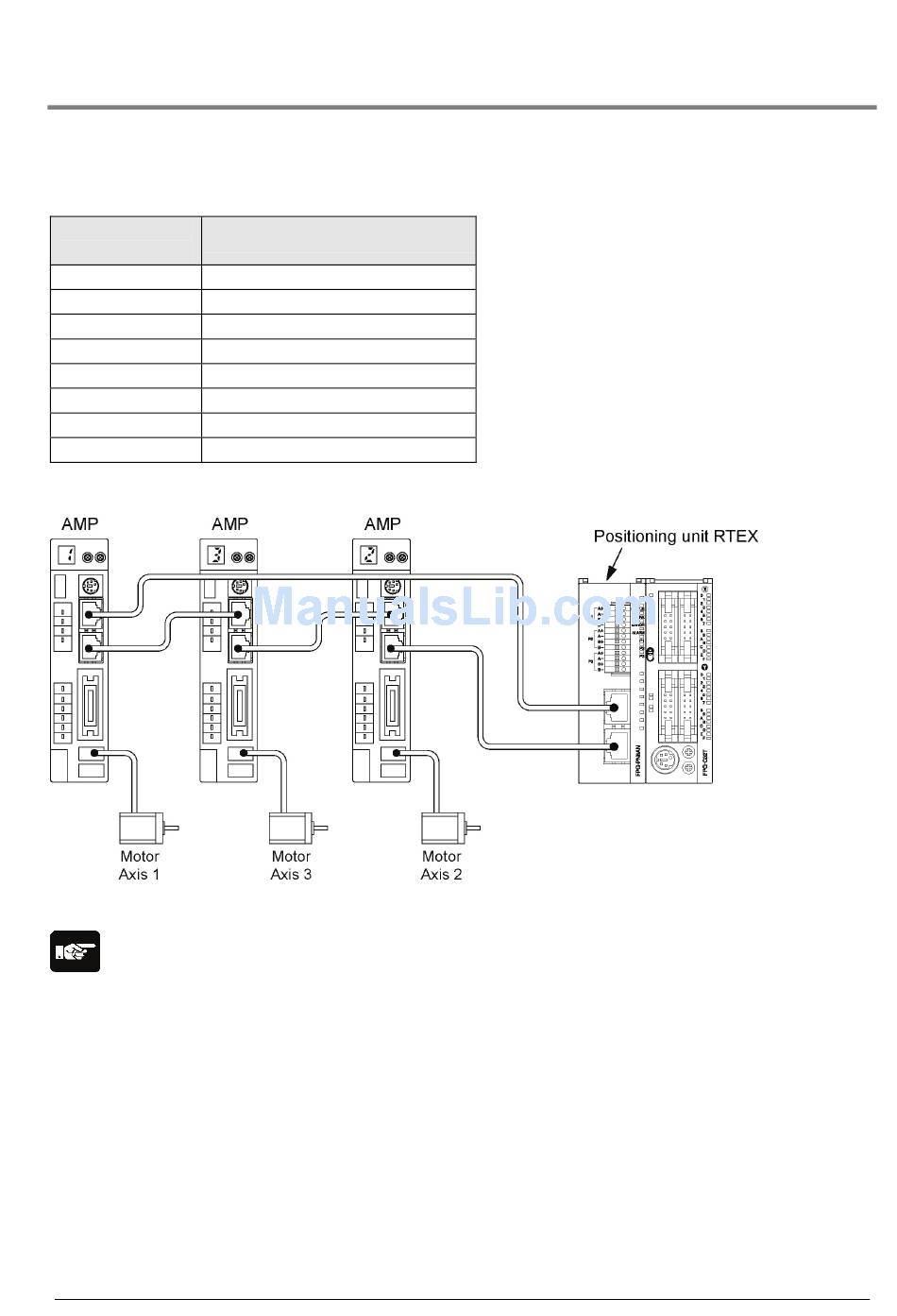

The axis numbers of the positioning unit RTEX agree with the unit numbers of the rotary switch of the
AMP. As the connected order on the network is not related to the axis numbers, the axis numbers can be
determined after the establishment of the network.
AMP rotary
switch number
1
2
3
4
5
6
7
8
Note:
An error occurs when the settings as below were specified.
• When the same unit number is redundantly specified on the same network.
• When a unit number was set to 0.
• When a unit number larger than the maximum axis number of the unit used was specified.
(For the 4-axis type, the settable unit numbers are 1 to 4.)
Axis number
Axis 1
Axis 2
Axis 3
Axis 4
Axis 5
Axis 6
Axis 7
Axis 8
