Wiring method

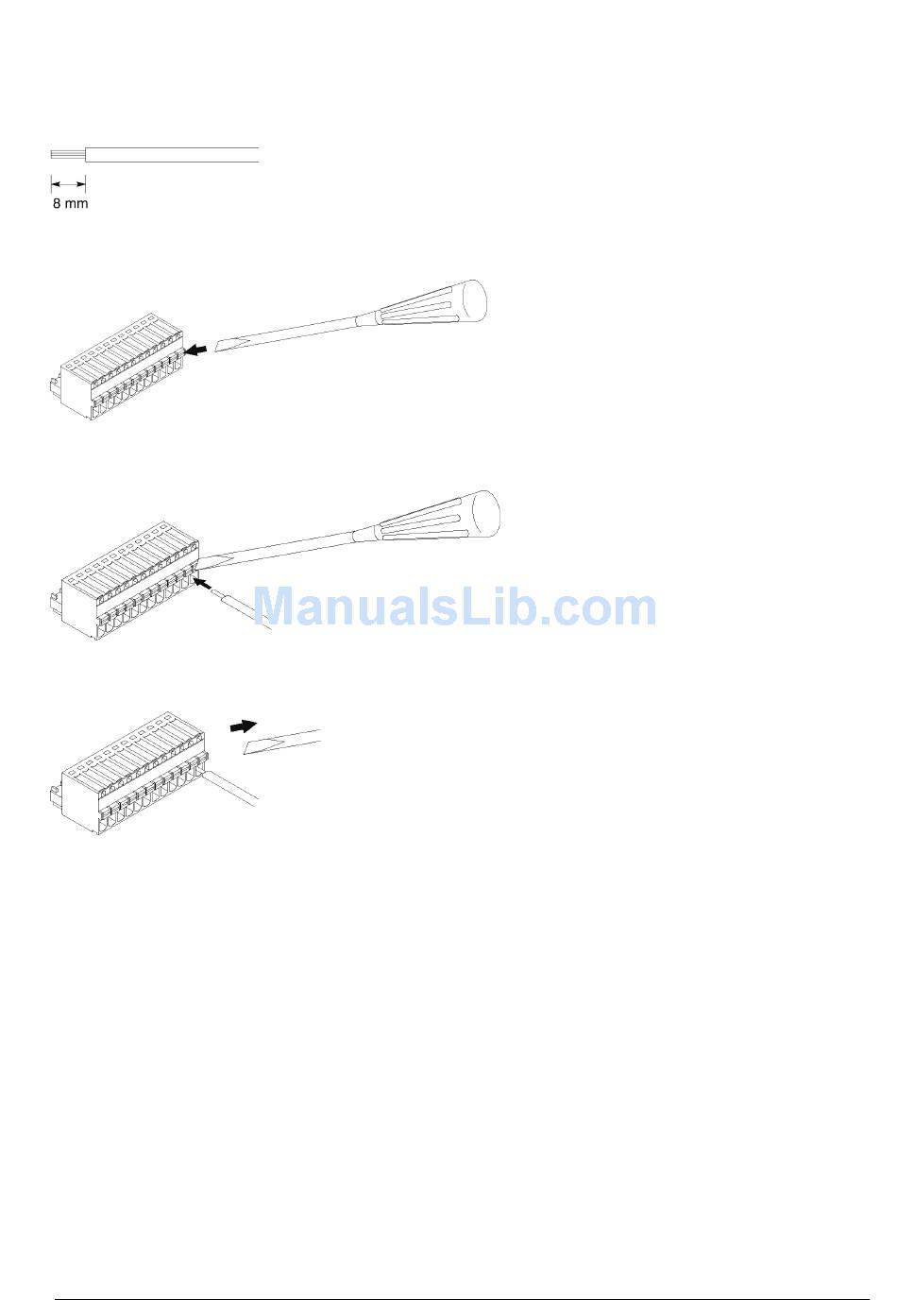

(1) Remove a portion of the wire's insulation.
(2) Press the orange switch of the connector using a tool such as a flat-blade screwdriver.
(3) Insert the wire into the connector until it stops with pressing the orange switch.
(4) Take the tool off the switch.
Precautions on wiring
• When removing the wire's insulation, be careful not to scratch the core wire.
• Do not twist the wires to connect them.
• Do not solder the wires to connect them. The solder may break due to vibration.
• After wiring, make sure stress is not applied to the wire.
