- Page 1 FP0 Series Programmable Controller CTi Automation - Phone: 800.894.0412 - Fax: 208.368.0415 - Web: www.ctiautomation.net - Email: info@ctiautomation.net Panasonic ... the new name for 10/2004...
-
Page 2: Output

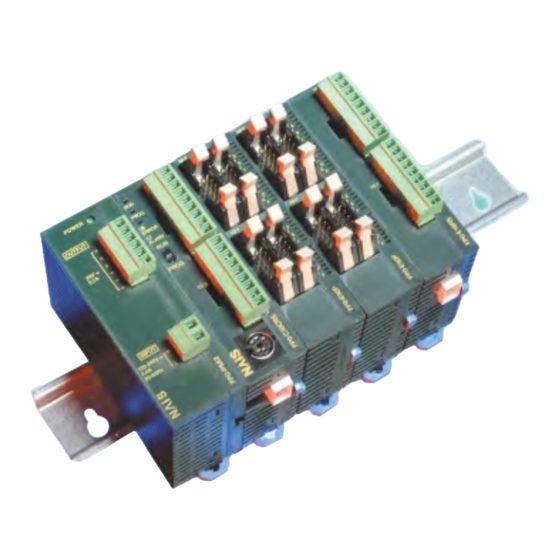

FP0 – Super Compact PLC Incredibly small, alone or even as multiple combined units From I/O 10-points… 30.4mm 90mm Super Compact Size A control unit a mere 25mm in width. Even expanded to I/O 128 points, the width is still only 105mm. The attachment area is the smallest in its class. -
Page 3: Expansion Unit
Either 10 Points or the Maximum of 128 Points You save this much space! …up to 128 I/Os Control unit Expansion unit Easy Expansion The expansion unit can be attached easily without any cables. The expansion unit can easily be attached directly to the control unit. -
Page 4: Table Of Contents
FP0 CPU Units A rich line-up of both single and combined units Control Units Relay output type 10 points 10 points Input Output Input Output 6 points 4 points 6 points 4 points 8 points FP0-C10RSA FP0-C10CRSA with 2nd RS232C This advanced FP0 CPU Control Unit 10k offers additional features:... -
Page 5: Input 16 Output
FP0 Expansion Units Choose the number of I/O points to suit the application Digital I/O Units Relay output type Input only type 8 points 16 points Input Output Input Output 4 points 4 points 8 points 8 points FP0-E8RSA FP0-E16RSA Option: Output 8 points FP0-E8YRSA... -
Page 6: Input
FP0 – Impressive Capabilities High specifications for both speed and capacity 0.9µs per basic instruction. Pulse catch and interrupt input functions meet the need for high-speed response. High-speed execution Execution speed of 0.9µs per basic instruction. 500 steps program yields a scanning time of 1ms, which means the FP0 boosts the fastest processing time among the products of this class. - Page 7 FP0 – Impressive Capabilities FP0 functions Equipped with 2-axis independent positioning and high-speed counter for support of PWM output. Pulse output function (For transistor output type only) The unit comes equipped with 2 channels for the output of up to 10kHz pulses (5kHz during 2-channel output).
- Page 8 FP0 Communication Serial interfaces and modem compatible Communication – Simple and efficient via two serial interfaces: TOOL-Port and COM-Port (RS232C interface). Programming interface TOOL-Port (also for communication) In Computer Link mode, this port offers access to the entire FP0 memory area. For example during data exchange between a host PC running SCADA software and an FP0 PLC, the Windows the communications protocol (MEWTOCOL.COM).
- Page 9 FP0 Communication Easier maintenance than ever before Maintenance saving Program memory uses EEPROM. In addition, programs can be changed even in RUN mode! Overwrite function in RUN mode It is possible to overwrite a program while the FP0 is running, such as during program debugging and startup adjustments.
-
Page 10: Expansion Unit
FP0 PROFIBUS DP Slave or Remote I/O Unit For cost effective control of distributed field device The FP0 DPS2 can operate either as a DP slave module or as a remote I/O system to which different decentralised inputs and outputs can be connected. -
Page 11: Performance Specifications
FP0 S-LINK Unit Connects directly to the S-LINK for reduced wiring S-Link is a system which simplifies connection of rapidly increasing control devices accompanying progressing automation and is useful in reducing your costs and construction time. Features 1. Small size of only W30 x H90 x D60 mm. Makes use of the T-shaped connectability of the S-LINK for reduced wiring and reduced size of the control panel. - Page 12 FP0 MEWNET-F Unit Networking units MEWNET-F The FP0 can be used as a slave station for MEWNET-F (remote I/O system) by adding I/O link unit. MEWNET-F is a reduced-wiring remote I/O system that connects PLCs located separately and I/O slave stations with 2-core cabling. By adding an I/O link unit to the FP0, you can link master station PLC and FP0 inputs and outputs via the network.
- Page 13 FP0 Thermocouple Input Expansion Units Enable high precision temperature control at low cost The FP0-TC4 and FP0-TC8 thermocouple units are suitable for user friendly temperature acquisition using standard thermocouples with high precision. Up to three units can be added to each control unit, enabling temperature control of up to 24 channels.
-
Page 14: Input/
Analogue Signal Processing FP0 Analogue Units Features FP0-A21 FP0-A80 2 Inputs/1 Output 8 Inputs Multimode A/D, D/A conversion Voltage, current and temperature selectable 2 analogue inputs (FP0-A21): -10 to + 10V, 0 to 5V, 0 to 20mA, 8 analogue inputs (FP0-A80): -10 to + 10V, 0 to 5V, -100 to + 100mV, 0 to 20mA 1 analogue output (FP0-A21): -10 to + 10V, 0 to 20mA 4 analogue outputs (FP0-A04V): -10 to + 10V... - Page 15 Analogue Signal Processing FP0 Analogue Units General specifications Item Rated operating voltage 24VDC Operating voltage range 21.6 to 26.4VDC Rated current consumption FP0-A80: 60mA or less, FP0-A21/A04V: 100mA or less, FP0-A04I: 130mA or less Ambient temperature 0°C to + 55°C Storage temperature -20°C to + 70°C Size...
- Page 16 FP0 RTD Input Expansion Unit User friendly acquisition of temperatures with high precision Features The module can be easily installed in an existing system: Special connection cables, backplanes, and so forth are unnecessary as the expansion unit employs a stacking system that uses expansion connectors and lock levers on the surface of the unit itself.
- Page 17 FP0 Series Specification tables FP0 Specifications Type of control unit Programming method / Control method No expansion (control unit only) Number of W/expansion 1 I/O points *Same type of control and expansion units W/expansion 2 *Mix type of relay and transistor units...
- Page 18 100k operations or more Surge absorber None Operation indicator LED display The FP0 series conforms to the following standards under the EMC Directive and the Low Voltage Directive. EMC Directive (89/336/EEC) EN 50081-2: 1993 EN 50082-2: 1995 CTi Automation - Phone: 800.894.0412 - Fax: 208.368.0415 - Web: www.ctiautomation.net - Email: info@ctiautomation.net RS232, mini DIN socket (5 pin), 9600 or 19200 BAUD, (8 data bits, odd parity, 1 stop bit), Computer link for programming and communication with MEWTOCOL.COM, user configurable modem connection...
- Page 19 Control FPWIN Pro PLC programming software conforming to IEC 61131-3 Control FPWIN Pro is the Matsushita programming software according to the international standard IEC 61131-3. Control FPWIN Pro works with the FP0 as well as any FP series programmable controller. Also, since the tool port is an RS232C, connection to a PC is easy –...
- Page 20 Control FPWIN GR PLC programming software for easy operation Features FP Series programming software for Windows. 1. To facilitate operation on site, a mouse is not required for input, search, write, monitor and timer edit operations. Everything can be accomplished with a keyboard alone. 2.
- Page 21 Control CommX, PCWAY, OPC Server Visualisation software for ready made or customised solutions Control CommX The connection in ActiveX technology. Connects your Visual Basic application to Matsushita PLCs. Gives you the possibility to easily develop highly customised control solutions. Create your own application very quickly by simply adding the functionality of ActiveX control to your code written with Visual Basic.
- Page 22 FP0 Control and Expansion Units Products and order numbers Control units Relay output type 10 points Input 6 points Output 4 points Terminal type FP0-C10RSA Order number: Transistor output type 16 points Input 8 points Output 8 points PNP/NPN output type FP0-C16PA (PNP) Order number: FP0-C16TA (NPN)
- Page 23 FP0 Analogue and Networking Units Products and order numbers Analogue units 3 points Input 2 points Output 1 points Terminal type FP0-A21A Order number: Temperature control units 4 points Input 4 points Terminal type FP0-TC4 Order number: Networking units PROFIBUS PROFIBUS DP-Slave or Remote I/O FP0-DPS2...
- Page 24 Accessories Products and order numbers Options Wiring tools Terminal screwdriver Slim attachment plate model Necessary when wiring relay output type & terminals (Phoenix). Screw-stop attachment plate. Slim model. AFP0806 Order number: Order number: Flat attachment plate model Screw-stop attachment plate. Flat model. Order number: DIN rail Loose-wiring connector pressure contact tool...
- Page 25 Programming Tools and Current Consumption List Products and order numbers Programming software and cables Control FPWIN Pro English, German, French, Italian, Control Control Spanish, Japanese menu selectable. FPWIN Pro FPWIN Pro According to IEC 61131-3 Standard Ver.5 Ver.5 Order number: small version for MINI-PLC only (FP0, FP-e, FPM, FP1, FP (Sigma) 1995-2000...
- Page 26 FP0 Series Power Supplies Features Incredibly small size: - FP0 power supply: 90 x 60 x 30.4mm - FP power supply: 115 x 75 x 42mm Maximum output current: - FP0 power supply: 0.7A (24VDC) - FP power supply: 2.1A (24VDC) Performance specifications 30.4mm...
- Page 27 FP0 Product Overview Order numbers 1. Control Units Product Name FP0-C10RS, 6 Inputs / 4 Outputs (p+n / Relay) FP0-C10CRS, 6 Inputs / 4 Outputs (p+n / Relay), RS232 COM-Port Interface FP0-C14RS, 8 Inputs / 6 Outputs (p+n / Relay) FP0-C14CRS, 8 Inputs / 6 Outputs (p+n / Relay), RS232 COM-Port Interface FP0-C16P, 8 Inputs / 8 Outputs (p+n / Transistor PNP) FP0-C16CP, 8 Inputs / 8 Outputs (p+n / Transistor PNP), RS232 COM-Port Interface...
