When the flag is set to YES, the system will allow SIP audio endpoints to connect to the MCU until the Port
Usage threshold is reached. Once this threshold is exceeded, the SIP audio endpoints will not be able to
connect, ensuring that the remaining system resources can be used by all other connections, including SIP
video, and H.323 cascaded links. When the call is rejected by the MCU because of lack of resources, the
appropriate indication will be sent by the MCU to the SIP audio endpoint.
For example, if the Port Gauge threshold is set to 80%, when 80% of the Audio resources are used, the
system will not allow additional SIP audio endpoints to connect and will send a busy notification to the
endpoint.
This does not affect the video resources usage.

Port Usage Gauge

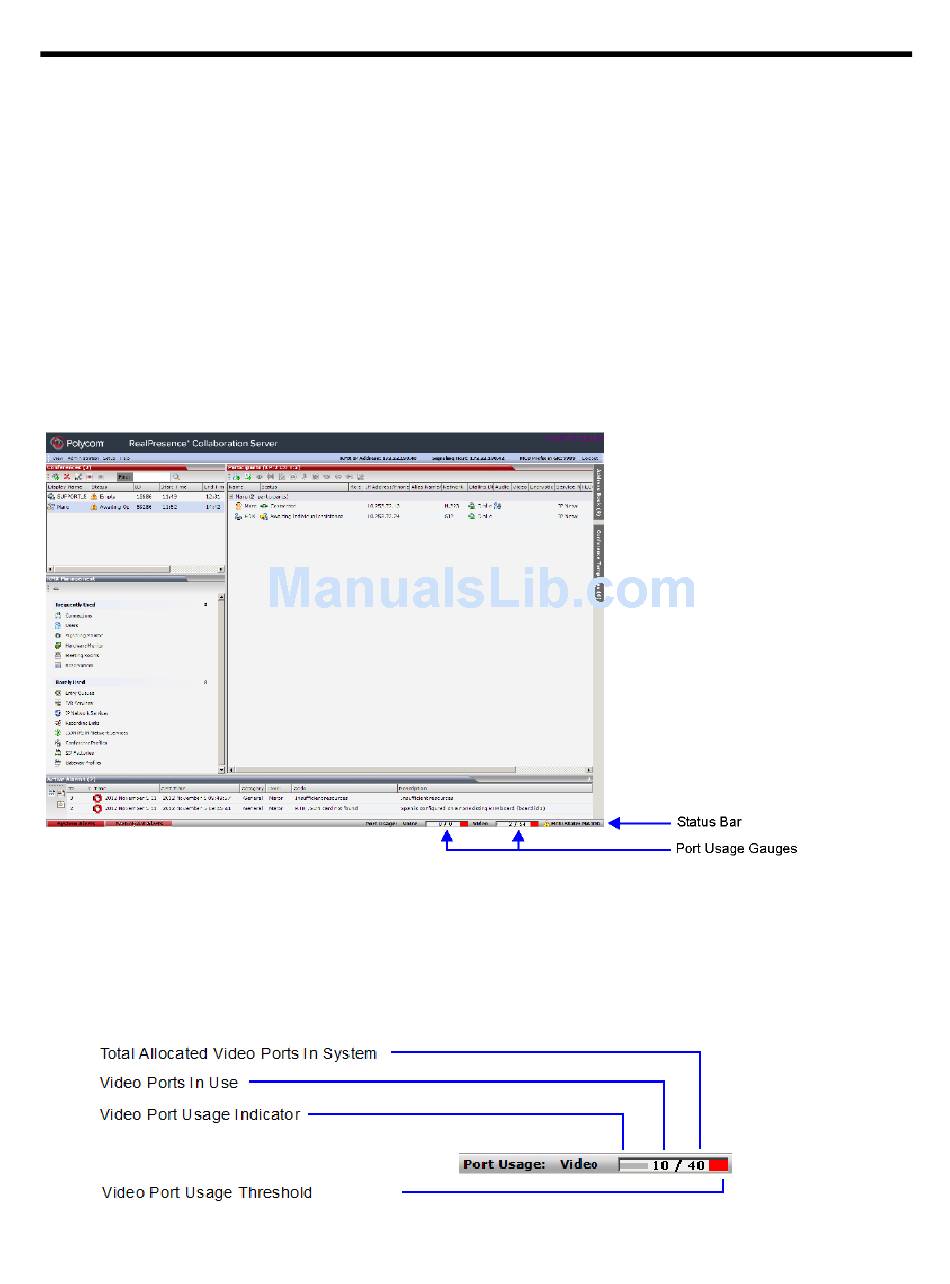

The Port Usage Gauge is displayed in the Status Bar at the bottom of the Collaboration Server Web Client
screen.
Port Usage Gauge
T
The Port Usage Gauge displays for the selected MCU:
● The total number of Video ports in the system.
● The number of Video ports in use.
● The High Port Usage threshold.
