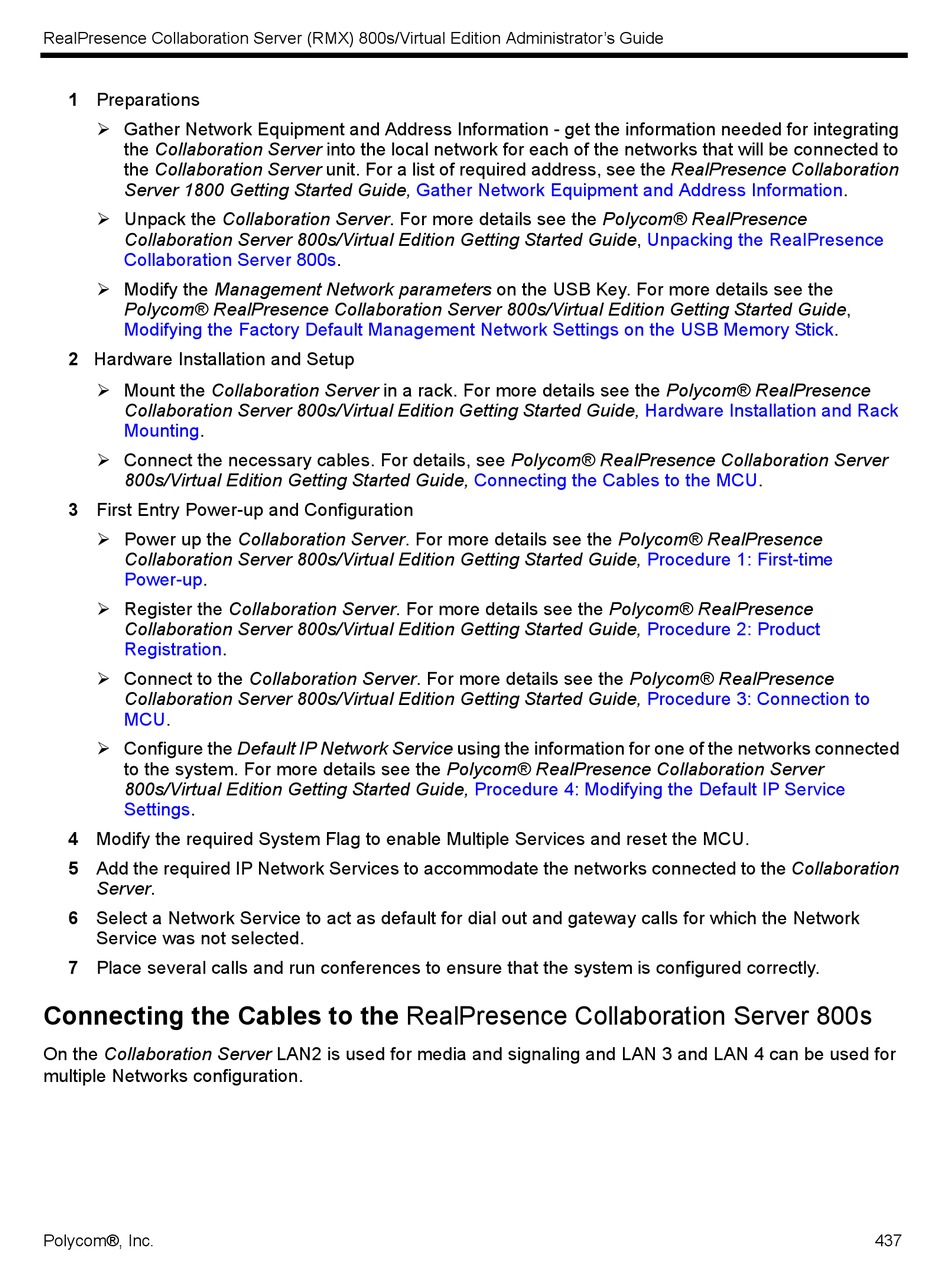

RealPresence Collaboration Server (RMX) 800s/Virtual Edition Administrator's Guide
1 Preparations
 Gather Network Equipment and Address Information - get the information needed for integrating
the Collaboration Server into the local network for each of the networks that will be connected to
the Collaboration Server unit. For a list of required address, see the RealPresence Collaboration
Server 1800 Getting Started Guide,
 Unpack the Collaboration Server. For more details see the Polycom® RealPresence
Collaboration Server 800s/Virtual Edition Getting Started Guide,
Collaboration Server
 Modify the Management Network parameters on the USB Key. For more details see the
Polycom® RealPresence Collaboration Server 800s/Virtual Edition Getting Started Guide,
Modifying the Factory Default Management Network Settings on the USB Memory
2 Hardware Installation and Setup
 Mount the Collaboration Server in a rack. For more details see the Polycom® RealPresence
Collaboration Server 800s/Virtual Edition Getting Started Guide,
Mounting.
 Connect the necessary cables. For details, see Polycom® RealPresence Collaboration Server
800s/Virtual Edition Getting Started Guide,
3 First Entry Power-up and Configuration
 Power up the Collaboration Server. For more details see the Polycom® RealPresence
Collaboration Server 800s/Virtual Edition Getting Started Guide,
Power-up.
 Register the Collaboration Server. For more details see the Polycom® RealPresence
Collaboration Server 800s/Virtual Edition Getting Started Guide,
Registration.
 Connect to the Collaboration Server. For more details see the Polycom® RealPresence
Collaboration Server 800s/Virtual Edition Getting Started Guide,
MCU.
 Configure the Default IP Network Service using the information for one of the networks connected
to the system. For more details see the Polycom® RealPresence Collaboration Server
800s/Virtual Edition Getting Started Guide,
Settings.
4 Modify the required System Flag to enable Multiple Services and reset the MCU.
5 Add the required IP Network Services to accommodate the networks connected to the Collaboration
Server.
6 Select a Network Service to act as default for dial out and gateway calls for which the Network
Service was not selected.
7 Place several calls and run conferences to ensure that the system is configured correctly.

Connecting the Cables to the RealPresence Collaboration Server 800s

On the Collaboration Server LAN2 is used for media and signaling and LAN 3 and LAN 4 can be used for
multiple Networks configuration.
Polycom®, Inc.
Gather Network Equipment and Address
800s.
Connecting the Cables to the
Procedure 4: Modifying the Default IP Service
Information.
Unpacking the RealPresence
Stick.
Hardware Installation and Rack
MCU.
Procedure 1: First-time
Procedure 2: Product
Procedure 3: Connection to
437
