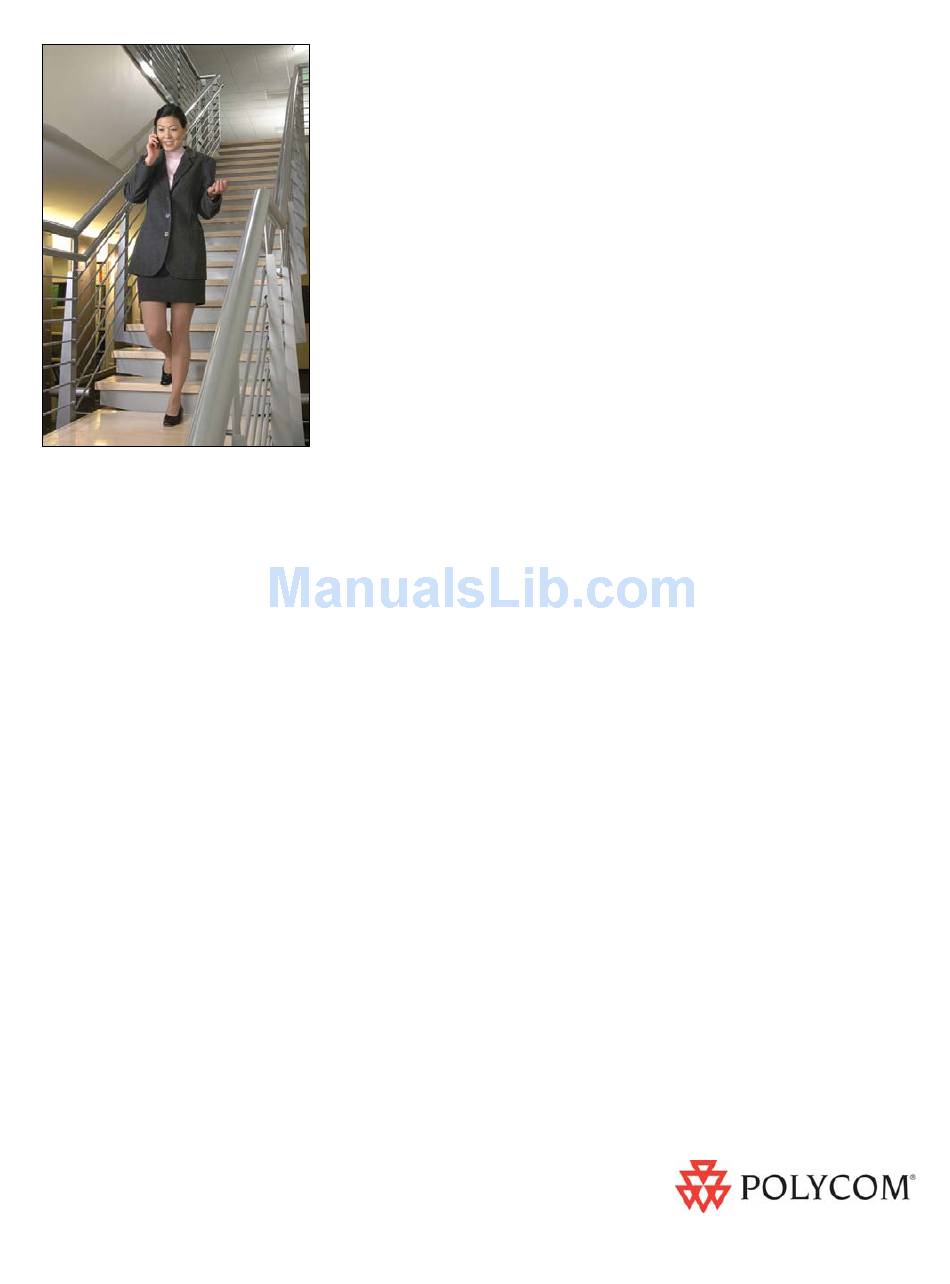

- Page 1 SpectraLink 8000 SVP Server SVP100 Administration Guide for SRP July 2008 Edition 1725-36032-001 Version G...
- Page 2 SpectraLink® LinkPlus Link NetLink Are trademarks and registered trademarks of Polycom, Inc. in the United States of America and various countries. All other trademarks used herein are the property of their respective owners. Patent Information The accompanying product is protected by...
-
Page 3: About This Guide
(1725-36028-001) SpectraLink e340/h340/i640 Wireless Telephone: Configuration and Administration Guide (SRP) (72-1065-09) Available at http://www.polycom.com/usa/en/support/voice/wi-fi/wi-fi.html Polycom WLAN Compatibility Table (1725-36040-001) Access Point Configuration Guide (1725-36xxx-001) where xxx indicates a number corresponding to the type of access point) Available at http://www.polycom.com/usa/en/support/voice/wi- fi/wi_fi_interoperability.html... -
Page 4: Customer Support
Available at http://www.polycom.com/common/documents/products/voice/m obile/deployment_guide_SLNK_03-08.pdf Customer Support Polycom wants you to have a successful installation. If you have questions please contact the Customer Support Hotline at (800) 775-5330. The hotline is open Monday through Friday, 6 a.m. to 6 p.m. Mountain time. -
Page 5: Table Of Contents
Contents About this Guide ...3 Polycom Model Numbers...3 Related Documents...3 Customer Support...4 Icons and Conventions...4 SpectraLink 8000 SVP Server Overview ...7 SpectraLink Voice Priority (SVP) and Quality of Service ...7 Multiple SVP Servers...8 The Timing Function ...8 SpectraLink 8000 SVP Server Capacity...9 Notes on System Configuration...10... - Page 6 SpectraLink 8000 SVP Server: Administration Guide for SRP Network Configuration...21 SendAll ...22 SVP Server Configuration...24 Change Password...27 Swapping/Adding/Deleting SVP Servers...29 Software Maintenance ...31 Software Updates...31 Troubleshooting via System Status Menu ...33 Error Status ...34 Network Status...34 Software Version ...36 Safety Notices ...39 Index ...40...
-
Page 7: Spectralink 8000 Svp Server Overview
SpectraLink 8000 SVP Server Overview The SVP Server is an Ethernet LAN device that works with APs to provide QoS on the wireless LAN. Voice packets to and from the SpectraLink 8000 Wireless Telephones are intercepted by the SVP Server and encapsulated for prioritization as they are routed to and from the SpectraLink 8000 Telephony Gateway. -
Page 8: Multiple Svp Servers
SpectraLink 8000 SVP Server: Administration Guide for SRP Multiple SVP Servers Multiple SVP Server environments are those which have more than one SVP Server. Up to 16 SVP Servers may be installed in any one subnet. The Timing Function In the SpectraLink Gateway environment, SVP Servers provide the "timing"... -
Page 9: Spectralink 8000 Svp Server Capacity
SpectraLink 8000 SVP Server Capacity The table below shows the capacity of SpectraLink 8000 Telephony Gateways in a multiple SVP Server environment. The table shows the total possible calls at 100% active calls. However, since it is unlikely that all handsets will be in use at the same time, the table then... -
Page 10: Notes On System Configuration
The SVP Server requires a Cat. 5 cable connection between its network port and the Ethernet switch. The SVP Server auto- negotiates to the type of port on the Ethernet switch and supports 10Base-T, 100Base-T, full-duplex and half-duplex port types. -
Page 11: System Diagram
System Diagram The following diagram shows one SpectraLink 8000 SVP Server residing on a network with five SpectraLink 8000 Telephony Gateways, wireless LAN APs, and Ethernet switch: SpectraLink Wireless Telephones Device supplied by SpectraLink (SpectraLink 8000 Telephony Gateway system example) PN: 1725-36032-001_G.doc... -
Page 12: System Components
LAN, a SpectraLink 8000 SVP Server must be installed to handle the increased call volume. Polycom offers digital SpectraLink 8000 Telephony Gateways that work with the digital ports on most common brands of telephone systems (PBX or key systems). We also offer an analog SpectraLink 8000 Telephony Gateway that works with telephone systems (CO, PBX, or Key Systems) with analog (loop start) ports. -
Page 13: Administrative Computer
Contact Polycom, or a certified Polycom distributor, for specific information about your facility’s needs. The SpectraLink system must connect to APs that utilize SVP. Contact Polycom, or a certified Polycom distributor, to verify that your AP and its software version are supported. Ethernet switch Ethernet switches interconnect multiple network devices, including APs and SpectraLink 8000 Telephony Gateways. -
Page 14: The Front Panel Of The Svp Server
LNKOK NETWORK ERROR STATUS system. Use only the Polycom-provided Class II AC Adapter with output 24VDC, 1A. port: male DB-9 connector (DTE) used for RS-232 connection to NETWORK : Lit when there is a network connection. : Lit if there is system activity. -
Page 15: Installing The Spectralink 8000 Svp Server
Installing the Spectralink 8000 SVP Server As shown in the system diagram the SVP Server is connected to the Ethernet switch. The specifications covered here allow for great flexibility in physical placement of the components within stated guidelines. This unit must be installed by a service person familiar with the installation of electronic equipment. -
Page 16: Install The Svp Server
A maximum distance of 325 feet (100 meters) from the Ethernet switch. Install the SVP Server The SVP Server may be mounted on a rack or to a wall. Mount the SVP Server on a rack The rack mount kit is designed for mounting equipment in a standard 19”... -
Page 17: Connect Power
Connect power 1. Once the units have been properly grounded, connect the power plug from the AC adapter to the jack labeled Server. PN: 1725-36032-001_G.doc Installing the SpectraLink 8000 SVP Server port on the SVP Server to NETWORK on the SVP... - Page 18 SpectraLink 8000 SVP Server: Administration Guide for SRP Use only the provided Class II AC Adapter with output 24VDC, 1A. 2. Plug the AC adapter into an 110VAC outlet to apply power to the SVP Server. 3. Verify that leakage current ("touch" current) is below 250 μA rms on exposed metal surfaces.
-
Page 19: Configuring The Spectralink 8000 Svp Server
TFTP. Connecting to the SVP Server The initial connection to the SVP Server must be made via a serial connection to establish the SVP Server’s IP address. After the IP address is established, connection to the SVP Server may be done via the network using Telnet. -
Page 20: The Netlink Svp-Ii System Menu
SpectraLink 8000 SVP Server: Administration Guide for SRP Connecting via telnet Telnet can only be used after the SVP Server’s IP address is configured. The Telnet method of connection is used for routine maintenance of the SpectraLink Server for both local and remote administration, depending on your network. -
Page 21: Network Configuration
The IP address and other network settings are established via the Network Configuration establish a hostname and enter the IP address of the location of any software updates you may obtain from Polycom. See Chapter 5 Software Maintenance for more information about installing software updates via TFTP. -
Page 22: Sendall
EACH SVP Server via the serial connection. If you anticipate identical settings across the LAN, set just the IP address and custom hostname (if desired) for each SVP Server using the initial serial connection. Then connect via the LAN and use identical configuration options for all SVP Servers. -
Page 23: Subnet Mask
: The IP address of a network TFTP server that will be . This will cause the DHCP client in the SVP Server to DHCP . This will cause the DHCP client in the SVP Server to attempt to Configuring the SpectraLink 8000 SVP Server... -
Page 24: Svp Server Configuration
Disable Telnet service Prevents Telnet access into the SVP Server. Reset the SVP Server for the change to take effect. Upon reset the Telnet protocol server is not started. The SVP Server must be reset in order to set the configuration options. -
Page 25: Ethernet Link
Set to when using a SpectraLink 8000 Telephony Gateway. NetLink Ethernet link The SVP Server will auto-negotiate unless there is a need to specify a link speed. System Locked This option is used to take the system down for maintenance. The default entry is (No). -
Page 26: Qos Configuration
SpectraLink 8000 SVP Server: Administration Guide for SRP that the administrator cannot change this option. It is automatically set by the system. Reset the system at exit to clear Inactivity Timeout (min) Set the number of minutes the administrative module can be left unattended before the system closes it. -
Page 27: Change Password
DSCP value (from the Gateway) is passed transparently. Reset System If this option is selected, you will be prompted to reset the SVP Server upon exiting this screen. The SVP Server should be reset at the end of any maintenance... - Page 28 1. Select the following will appear: 2. Enter the information and either select key to set the new password. If you forget a password, call Polycom Customer Service for assistance. from the main menu. A screen similar to Change Password...
-
Page 29: Swapping/Adding/Deleting Svp Servers
SVP Server is intentional, the administrator should lock and idle the system prior to removing an SVP Server. Whenever an SVP Server is added to the system, the change is seamless and does not affect wireless telephone calling functionality. -
Page 31: Software Maintenance
Polycom Corporation. The software versions that are running on the system components can be displayed via the Status You may obtain information about software updates from Polycom or its authorized dealer. At startup the SVP Server uses TFTP to check the software version it is running against the version in the TFTP location. -
Page 33: Troubleshooting Via System Status Menu
Information about system alarms, and network status displays on various screens accessed through the is opened from the main menu of the SVP Server. See the previous sections for directions on how to connect to the SVP Server and navigate to the... -
Page 34: Error Status
Error Status malfunction. Some of these alarms are easily remedied and others require a call to Polycom’s Customer Support Department. From the active alarms on the SVP Server. The following table displays the list of alarms and a description of the action to take to eliminate the alarm. - Page 35 See SVP100 Capacity for more information. Data is transmitted over SpectraLink components by proprietary technology developed by Polycom Corporation. The SpectraLink Radio Protocol (SRP) packets and bytes can be differentiated from other types of transmissions and are used to evaluate system functioning by Polycom customer support and engineering personnel.
-
Page 36: Software Version
SVP Server. This information will help you determine if you are running the most recent version and will assist Polycom engineering and/or customer support in troubleshooting software problems. – overrun occurred during reception –... - Page 37 This screen also displays the model type. From the displayed here. Note that the software versions on your system may be different from the versions displayed in the above sample screen. The table below shows the description, major version numbers, and filenames of the files that are provided when downloading updates.
-
Page 39: Safety Notices
Safety Notices WARNING: Changes or modifications to this equipment not approved by SpectraLink Corporation may cause this equipment to not comply with part 15 of the FCC rules and void the user’s authority to operate this equipment. WARNING: SpectraLink products contain no user-serviceable parts inside. -
Page 40: Index
Error Status...38 Ethernet switch, description...13 Grounding ...19 Hotline...4 PN: 1725-36032-001_G.doc Network Status ...38 Power...17 Serial Connection ...21 Software Updates...35 SVP Server ...7 Administration ...21 Alarms ...38 Capacity...9 Front Panel...15 Location...17 Mounting on a rack...18 Mounting to a wall...18 Telephony Gateway, description...12 Telnet ...22...
