CalComp 906/907 PCI

Océ Repro Desk detects the sync byte, end of message, checksum and the step
size settings in a CalComp file. This information is displayed in the Drawing
File Information box (in decimal format). However, it can not guarantee that
they are correct and you need to check these settings before printing
.
3761-144

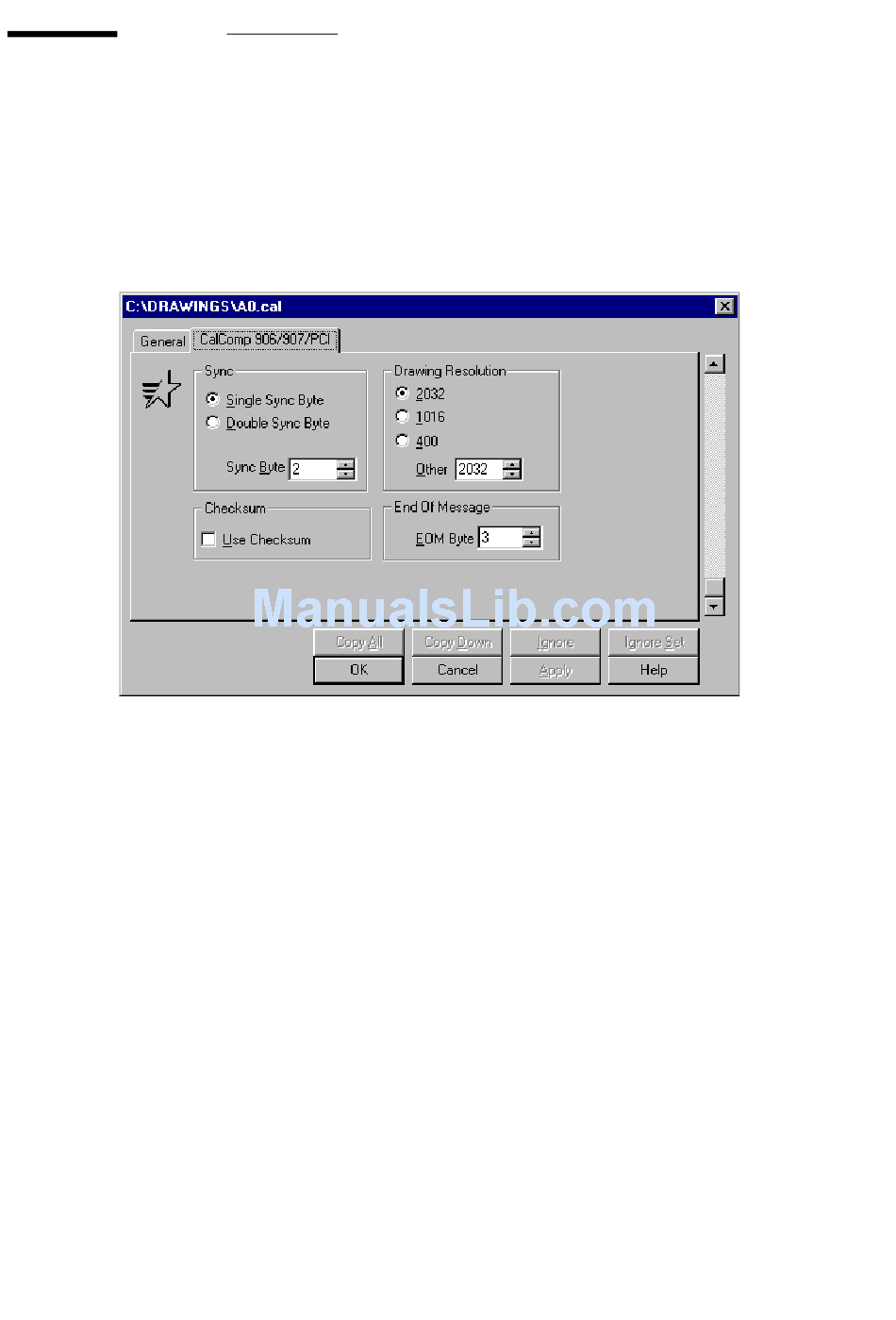

[41] CalComp drawing properties
Sync byte sequence
beginning of a message. The printer searches for this character in the data sent
from the host computer and when detected, it sends all following data to the
printer buffer. You can set the sync byte to single or double. A wrong setting
will affect the result of the plot.
Drawing resolution
of the printer and the application. A wrong step size will affect the scale of the
drawing.
Use checksum
been correctly transmitted. A wrong setting will affect the result of the plot.
End of message
sequence. A wrong setting will affect the result of the plot.
98 Océ Repro Desk Server User Manual
The sync byte sequence is a character that identifies the
is CalComp step size. The step size matches the resolution
The Checksum character determines if the data message has
The End of Message character indicates the end of the data
