in the drawing file, you may need to turn the option off so that the accurate
extents can be recalculated.
Check this option if you want to use millimeters instead of
Use Metric Scaling
inches.

AutoCAD R14 batch plot utility

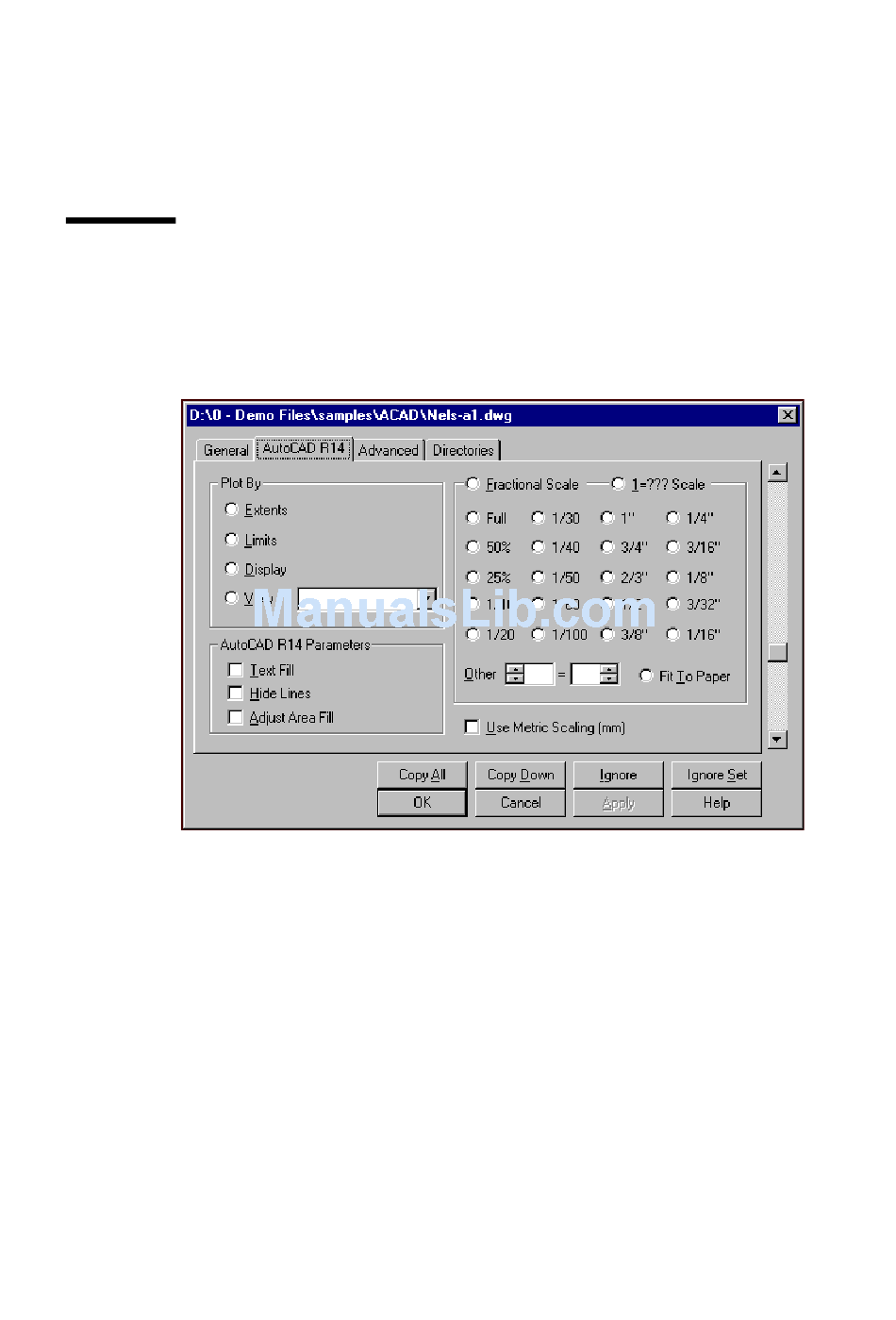

The Plot by Scale tab will appear differently if the AutoCAD R14 batch plot
utility is used to process DWG files. The options that are different are
described below.
RDS5020.TIF
[34] AutoCAD R14 tab
Displays text using the TextFill property in AutoCAD which fills text
Text Fills
to be solid rather than just an outline.
Displays objects in drawings using the HideFill property in
Hide Lines
AutoCAD which hides background lines that normally appear in a 3D object.
Displays objects in the Drawing using the AdjustAreaFill
Adjust Area Fill
property in AutoCAD which pulls in the boundaries of the filled area one-half
the pen width.
Check and process drawings 91
