Drawing size

You can use the Drawing Size tab to clip a specific area from the original
drawing. The outside region will not be printed.
For example, defining an 841 x 1189 mm area to print
Select the file.
1
Select View and the Imaging Properties.
2
Select the Drawing size tab.
3
Set the drawing size to 841 x 1189 mm.
4

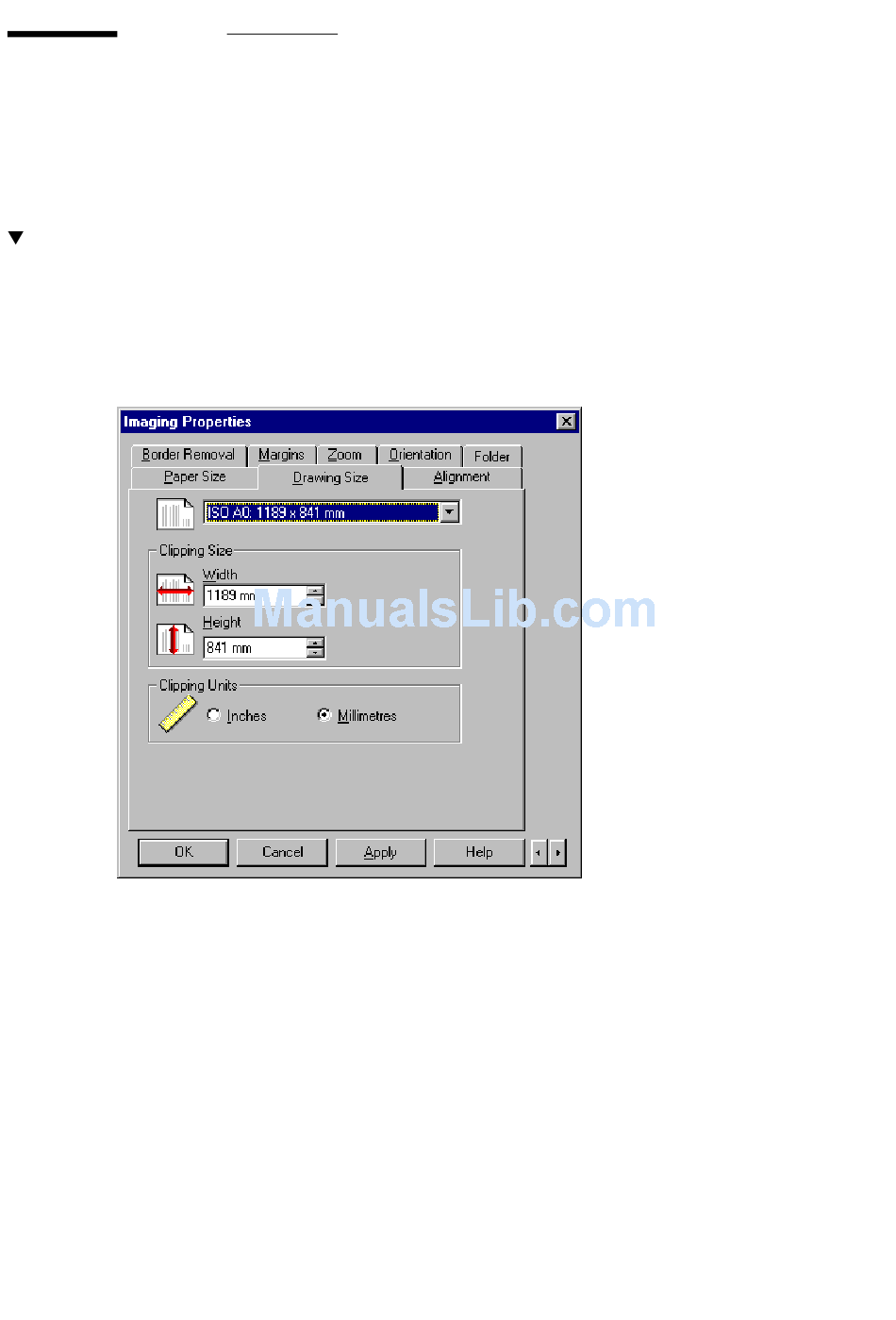

[47] Imaging Properties: Drawing Size
In the Drawing Size tab you can define the following options:
Standard drawing size
standard drawing size.
Clipping Size
in sizes.
Clipping Units
in the clipping size.
126 Océ Repro Desk Server User Manual
3765-144
In the pull down menu you can select a predefined
In this entry box you can enter custom drawing sizes by typing
In the Clipping Units you can select inches or millimeters used
